Correct Answer: B

One of the major features in R80.x SmartConsole is concurrent administration, which allows multiple administrators to work on the same Security Policy at the same time. However, only one administrator can edit a rule at a time. If AdminA and AdminB are editing the same rule at the same time, it will cause a conflict and prevent them from saving their changes. Therefore, the correct answer is B. AdminA and AdminB are editing the same rule at the same time.

Correct Answer: A

While enabling the Identity Awareness blade, the Identity Awareness wizard does not automatically detect the Windows domain because the SmartConsole machine is not part of the domain. The SmartConsole machine needs to be a member of the Windows domain or have access to a domain controller in order to detect the domain automatically.

References: Check Point R81 Identity Awareness Administration Guide, page 10.

Correct Answer: B

The two types of NAT supported by the Security Gateway are hide NAT and static NAT. Hide NAT translates many source IP addresses into one IP address, usually the external interface of the gateway. Static NAT translates one source IP address into another IP address, usually a public IP address. The other options are not valid types of NAT. References: Network Address Translation (NAT),

Correct Answer: D

Central License is the preferred and recommended method of licensing because it ties to the IP address of the management server and is not dependent on the IP of any gateway in the event it changes. Central License allows administrators to manage licenses for all Security Gateways from one central location. If the IP address of a gateway changes, the license remains valid as long as it is connected to the same management server. Central Licensing is supported with Gaia and is not the only option when deploying Gaia. Central Licensing does not tie to the IP address of a gateway and can not be changed to any gateway if needed.

References:

1: Rugged Appliances

2: SmartUpdate

3: Check Point Software Deployment Options : [Anti-Virus] : [Check Point Software Blades] : [Central License]

Correct Answer: D

Address translation is not a role of the SmartCenter, as it is performed by the Security Gateway based on the NAT policy configured in the SmartConsole. The other options are roles of the SmartCenter, as it is responsible for status monitoring, policy configuration, and certificate authority for the Security Gateways. References: Gaia R81.10 Administration Guide, QUANTUM SECURITY MANAGEMENT R81, Remote Access VPN R81 Administration Guide

Correct Answer: B

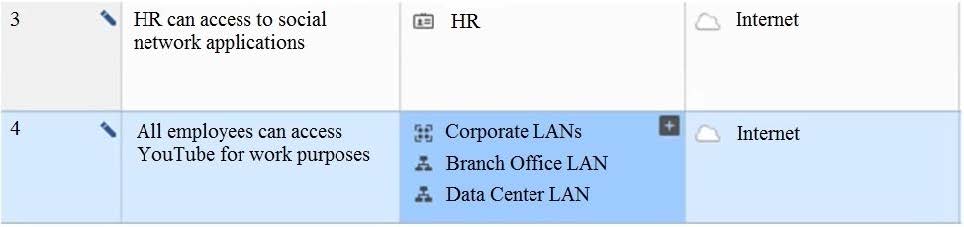

The pen-symbol in the left column means that the rules have been edited by the logged in administrator, but the policy has not been published yet. It indicates that the changes are not yet effective and can be discarded.References: Policy Editor, Publishing Changes

Correct Answer: D

When an Admin logs into SmartConsole and sees a lock icon on a gateway object and cannot edit that object, it indicates that another Admin has made an edit to that object and has yet to publish the change. SmartConsole supports concurrent administration, which means that multiple Admins can work on the same security policy at the same time. However, when one Admin edits an object, such as a gateway, a rule, or a network, that object is locked for other Admins until the change is published or discarded. The lock icon shows which objects are being edited by other Admins and prevents conflicts or overwrites. The gateway being powered off, incorrect routing to reach the gateway, or logging in to Read-Only mode do not cause the lock icon to appear.References: [Concurrent Administration], [SmartConsole Overview]

Correct Answer: A

Quick Mode Complete is the message that indicates IKE Phase 2 has completed successfully2. IKE Phase 2 is also known as Quick Mode or Child SA in IKEv1 and IKEv2 respectively. Aggressive Mode and Main Mode are part of IKE Phase 1, which establishes the IKE SA. IKE Mode is not a valid term for IKE negotiation. References: How to Analyze IKE Phase 2 VPN Status Messages, IKEv2 Phase 1 (IKE SA) and Phase 2 (Child SA) Message Exchanges, Understand IPsec IKEv1 Protocol

Correct Answer: C

The following cannot be configured in an Access Role Object: Time. An Access Role Object is a way to define a group of users based on four criteria: Networks, Users, Machines, and Locations. Networks are IP addresses or network objects that represent the source or destination of the traffic. Users are user accounts or user groups from an identity source such as LDAP or RADIUS. Machines are endpoints that are identified by MAC addresses or certificates. Locations are geographical regions based on IP addresses. References: Check Point R81 Firewall Administration Guide, Check Point R81 Identity Awareness Administration Guide

Correct Answer: B

The R80.10 management server can manage gateways with versions R76 and higher. Versions lower than R76 are not supported by the R80.10 management server. References: Check Point R80.10 Release Notes, Free Check Point CCSA Sample Questions and Study Guide
