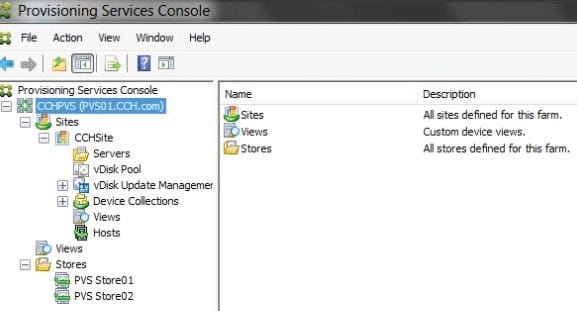

SIMULATION Scenario: Members of the HR user group at CCH need access to desktops running Windows 8. The desktops provided to HR users must be in a separate device collection named HR. As part of a pilot, a Citrix Administrator must use the Provisioning Services Console to create the device collection and initially four target devices with plans to add 20 more. The target devices named Win801T Win802. Win803 and Win804 should be assigned the CCH_Win8 vDisk and those devices should be assigned to the HR OU. XenDesktop is NOT being used for the HR team at the moment. The hypervisor information for the environment is: XenServer IP Address: 192.168.10.5 Username: root Password: Password 1 Tasks:

1.

Create a device collection named HR.

2.

Create four target devices named Win801, Win802. Win803 and Win804, and add the target devices to the HR device collection.

3. Ensure the target devices are configured to meet the requirements outlined in the scenario.

Scenario: A Citrix Administrator configures a profile management policy in Citrix Studio for the members of a particular organizational unit (OU). The administrator must verify that the filter is applied correctly to the newly created policy. How could the administrator verify that the filter is correctly applied?

A. Using the Modeling Wizard

B. Using a Policy Template Comparison

C. Running rsop.msc on the Delivery Controller

D. Running gpresult /v from the command line

Scenario: Auto-created client printers are enabled within a XenDesktop deployment. A Citrix Administrator receives complaints from users of the Finance group who say they do NOT have the option to print to tray three on their default printer.

The administrator decides to implement session printing for only the Finance users to resolve this issue.

Which two steps should the administrator take to meet the requirements of the scenario? (Choose two.)

A. Enable legacy client printer names.

B. Configure network printers on the client device.

C. Disable automatic installation of in-box printer drivers.

D. Install the printer drivers on the Desktop OS machine.

E. Configure a session printer policy within Citrix policies.

Scenario: A Citrix Administrator uses Machine Creation Services to manage XenDesktop 7.6 in an organization. One Delivery Group currently deploys 100 pooled-random Desktop OS machines. The administrator increased the number of

Desktop OS machines in the machine catalog to 150. After increasing the number of machines, only 100 users are able to log in to the pooled-random Desktop OS machines.

Which additional step must the administrator take to ensure 150 users are able to log in simultaneously to 150 Desktop OS machines?

A. Power on the newly added machines.

B. Join the new machines to the domain.

C. Add the new machines to the Delivery Group.

D. Remove the new Desktop OS machines from maintenance mode.

Scenario: A Citrix Administrator implemented pooled-random Desktop OS machines with Personal vDisk for the executive staff. The CIO is concerned about the retention of his vDisk. Which tool should the administrator use to implement vDisk retention?

A. ctxpvd.exe

B. PowerShell

C. Citrix Studio

D. Citrix Director

Scenario: When users log on, their Desktop OS machines launch automatically in full screen. These users have to log out of their Desktop OS machine to access their hosted applications. How could a Citrix Administrator prevent the Desktop OS machines from launching automatically in full screen mode?

A. Update Citrix Receiver.

B. Modify the default desktop viewer setting.

C. Reconfigure the web.config file for the appropriate store.

D. Configure an auto-launch policy on the Delivery Controller.

Which component CANNOT be co-located with Delivery Controller on the same server?

A. SQL Server

B. License Server

C. StoreFront Server

D. Domain Controller

Scenario: Users are unable to log on to the Citrix StoreFront store. When users attempt to log in, they are presented with the following error:

'Cannot complete your request. You can log on and try again, or contact your help desk for assistance.' Which service on the StoreFront server should a Citrix Administrator ensure is running in order to resolve this issue?

A. Citrix Licensing

B. Citrix Configuration

C. Citrix ICA File Signing

D. Citrix Credential Wallet

Scenario: A Citrix Administrator discovers that a Citrix policy configured using the Group Policy Management Console is NOT being applied to Windows 7 Desktop OS machines. The policy is being successfully applied to Windows 8.1

Desktop OS machines.

What is the likely cause of this issue?

A. The WMI filter is applied to the policy.

B. The Delivery Group type filter is configured.

C. The User Configuration settings are disabled within the policy.

D. The Computer Configuration settings are disabled within the policy.

Scenario: A Citrix Administrator discovers that NO Desktop OS machines can register against a specific Delivery Controller, Controller4, after maintenance over the weekend. The administrator logs into Controller4 and finds all services are

running. Pooled Desktop OS machines are registering with other Delivery Controllers in the environment and users are able to connect successfully.

What is preventing the Desktop OS machines from registering with Controller4?

A. SQL Server is offline.

B. Windows Firewall is improperly configured.

C. Controller4 was removed from NetScaler load balancing configuration.

D. The Active Directory machine account for Controller4 was deleted from Active Directory.
