Where are passwords and licensing information stored?

A. Non-Volatile Random Access Memory (NVRAM)

B. Content Addressable Memory (CAM)

C. RAMmemory

D. Synchronous Dynamic Random Access Memory (SDRAM)

E. Boot Flash

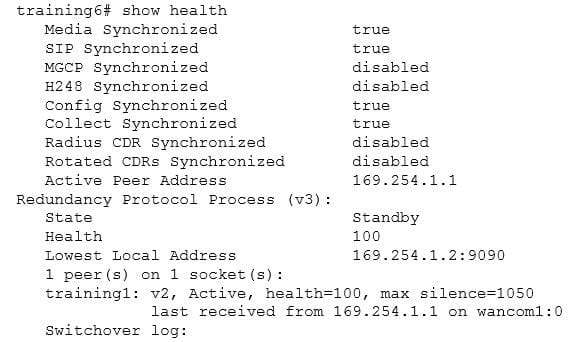

View the Exhibit.

Which statement is true about this output of the show health command?

A. The two nodes have different health scores.

B. The training1 peer is the standby node.

C. The switchover berpd force commandwas executed to do a manual failover.

D. The training6 peer is the active node.

E. The training6 peer will wait 1050 ms before considering the training1 peer out of service.

CORRECT TEXT

Which statement is true about the Host In Path (HIP) feature In the Session Border Controller?

A.

Which configuration step is correct for a phy-interface configuration element used for signaling and/or media?

A. A phy-interface elementmust be configured for each interface used for High Availability (HA) heartbeats, but not for signaling and/or media.

B. After configuring a phy-interface configuration element for signaling and/or media, a reboot of the Session Border Controller is required.

C. A phy-interface configuration element must be configured for each interface used.

D. A unique phy-interface configuration element is created for all signaling/media interfaces.

E. A phy-interface configuration element for signaling and/or media hasthe operation-type parameter set to control.

Which three statements are true about SIP, per RFC 326? (Choose three.)

A. SIP does not provide for resource reservation.

B. SIP defines native methods for negotiating media streams.

C. A SIP transaction occurs between a client and a server.

D. To set up a voice session, SIP relies on protocols such as SDP and RTP.

E. SIP signaling can only be used for voice over IP thereby limiting its use as a general signaling protocol.

What two problems do Network Address Translations (NATs)introduce into VoIP networks? (Choose two.)

A. There are no major concerns with NATs.

B. NATs block unsolicited incoming signaling and media.

C. NATs block unsolicited incoming signaling but allow incoming media.

D. NATs pinholes expire after aconfigurable time.

E. NATs devices can be overloaded by incoming registrations.

Which two states are needed by the active node while transitioning to standby? (Choose two.)

A. Out of service

B. Becoming-active

C. Relinquishing-standby

D. Relinquishing-active

E. Becoming-standby

You need to configure the Session Border Controller toperform load balancing between two downstream SIP proxies.

Which option shows the configuration elements that you should configure for the load balancing feature?

A. session-router and router-group

B. realm-config and enum-group

C. group-policy andload-policy

D. proxy and proxy-pool

E. local-policy and session-group

After configuring Header Manipulation Rules (HMRs) for topology hiding, your subsequent testing shows that the manipulation is not takingeffect.

Identify two causes for this (Choose two.)

A. You have not configured the out-manipulationid parameter of the sip-interface configuration element.

B. You have not enabled policy-based realm-bridging.

C. The value of the name parameter in the header-rule configuration element is different than the value of the out-manipulationid parameter in the sip-interface configuration element.

D. The value of the match-val-type parameter is not written correctly.

E. The home-proxy-address value does not matchthe $LOCAL_IP value in the new-value parameter.

Which two statements are true about a realm on the Session Border Controller?

A. It can only have one steering poolport per realm.

B. It is a layer 3 abstraction of a VoIP network.

C. It is a logical definition of a network or group of networks comprising devices that provide real-time communication.

D. It is a layer 5 abstraction of a VoIP network.

E. It is acollection of IP devices that perform IP routing functions.
