An engineer is asked to protect unused ports that are configured in the default VLAN on a switch. Which two steps will fulfill the request? (Choose two.)

A. Configure the ports as trunk ports.

B. Enable the Cisco Discovery Protocol.

C. Configure the port type as access and place in VLAN 99.

D. Administratively shut down the ports.

E. Configure the ports in an EtherChannel.

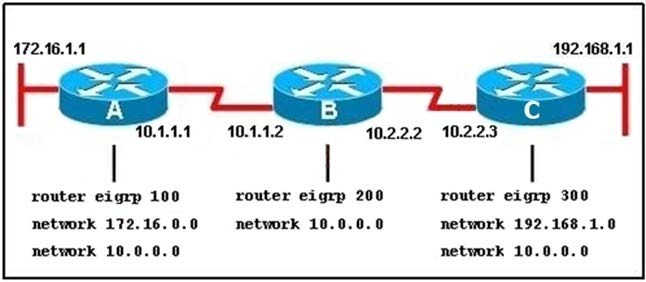

Refer to the exhibit. When running EIGRP, what is required for RouterA to exchange routing updates with RouterC?

A. AS numbers must be changed to match on all the routers

B. Loopback interfaces must be configured so a DR is elected

C. The no auto-summary command is needed on Router A and Router C

D. Router B needs to have two network statements, one for each connected network

What are two functions of an SDN controller? (Choose two)

A. Layer 2 forwarding

B. coordinating VTNs

C. tracking hosts

D. managing the topology

E. protecting against DDoS attacks

What is a practice that protects a network from VLAN hopping attacks?

A. Implement port security on internet-facing VLANs

B. Enable dynamic ARP inspection

C. Assign all access ports to VLANs other than the native VLAN

D. Configure an ACL to prevent traffic from changing VLANs

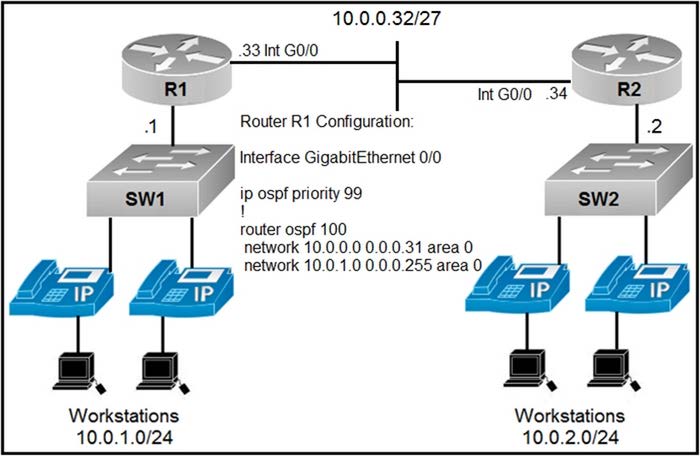

Refer to the exhibit.

An engineer must configure router R2 so it is elected as the DR on the WAN subnet.

Which command sequence must be configured?

A. interface gigabitethernet0/0 ip address 10.0.0.34 255.255.255.248 ip ospf priority 0

B. interface gigabitethernet0/0 ip address 10.0.0.34 255.255.255.224 ip ospf priority 100

C. interface gigabitethernet0/0 ip address 10.0.1.1 255.255.255.0 ip ospf priority 255

D. interface gigabitethernet0/0 ip address 10.0.1.1 255.255.255.224 ip ospf priority 98

How does Chef configuration management enforce a required device configuration?

A. The Chef Infra Server uses its configured cookbook to push the required configuration to the remote device requesting updates.

B. The installed agent on the device connects to the Chef Infra Server and pulls its required configuration from the cookbook.

C. The Chef Infra Server uses its configured cookbook to alert each remote device when it is time for the device to pull a new configuration.

D. The installed agent on the device queries the Chef Infra Server and the server responds by pushing the configuration from the cookbook.

What is the purpose of classifying network traffic in QoS?

A. configures traffic-matching rules on network devices

B. services traffic according to its class

C. identifies the type of traffic that will receive a particular treatment

D. writes the class identifier of a packet to a dedicated field in the packet header

Which EtherChannel mode must be configured when using LAG on a WLC?

A. on

B. passive

C. active

D. auto

DRAG DROP

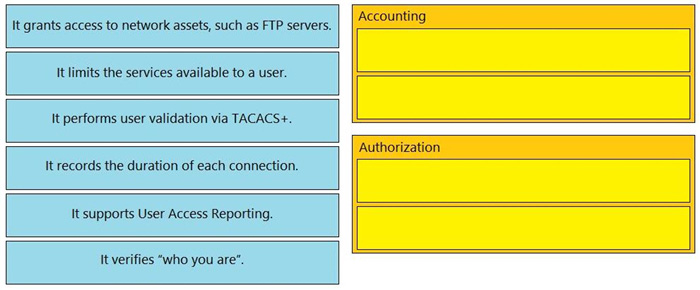

Drag and drop the statements about AAA services from the left onto the corresponding AAA services on the right. Not all options are used.

Select and Place:

DRAG DROP

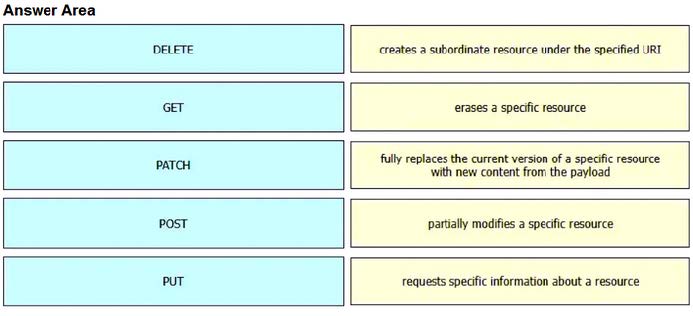

Drag and drop the HTTP verbs from the left onto the API operations on the right.

Select and Place:
