Which nonproprietary mechanism can be used to automate rendezvous point distribution in a large PIM domain?

A. Embedded RP

B. BSR

C. Auto-RP

D. Static RP

A company is using OSPF between its HQ location and a branch office. HQ is assigned area 0 and the branch office is assigned area 1. The company purchases a second branch office, but due to circuit delays to HQ, it decides to connect the new branch office to the creating branch office as a temporary measure. The new branch office is assigned area 2. Which OSPF configuration enables all three locations to exchange routes?

A. The existing branch office must be configured as a stub area

B. A virtual link must be configured between the new branch office and HQ

C. A sham link must be configured between the new branch office and HQ

D. The new branch office must be configured as a stub area

An engineer must design a solution to connect a customer to the Internet. The solution will include a Layer 3 circuit with a CIR of 50 Mbps from the service provider. The hand-off from the provider's switch to the customer's router is 1Gbps. Which solution should the engineer include to prevent potential issues with choppy voice traffic?

A. Reduce the bandwidth of the connection to the router.

B. Implement hierarchical QoS with a parent policing policy.

C. Implement hierarchical QoS with a parent shaping policy.

D. Add a bandwidth statement to the router interface.

Refer to the exhibit. An engineer is designing an OSPF network for a client. Requirements dictate that the routers in Area 1 should receive all routes belonging to the network, including EIGRP, except the ones originated in the RIP domain. Which action should the engineer take?

A. Make area 1 a NSSA.

B. Make area 1 a stub.

C. Make area 1 a standard OSPF area.

D. Make the area 1 routers part of area 0.

A customer's environment includes hosts that support IPv6-only. Several of these hosts must communicate with a public web server that has only IPv4 domain name resolution. Which solution should the customer use in this environment?

A. utilize NAT64 to translate the addresses

B. Implement NAT44 at the edge of the customer network

C. use 6to4 and a tunnel to translate the addresses

D. implement 6PE to resolve hostname resolution

An engineer must connect a new remote site to an existing OSPF network. The new site consists of two low-end routers, one for WAN, and one for LAN. There is no demand for traffic to pass through this area. Which area type does the engineer choose to provide minimal router resource utilization, while still allowing for full connectivity to the rest of the network?

A. not so stubby

B. totally not so stubby

C. totally stubby area

D. stubby area

Which design achieves SD-WAN control plane redundancy?

A. Configuring BFD on the WAN Edge routers

B. Using multiple instances of vManage in clusters

C. Deploying using a virtual platform like UCS or CSP

D. Managing the underlay network with OMP

An engineermustdesign a management network for a customer's enterprise network. The design must: provide the ability to grant and revoke access privileges allow only protocols SSH, NTP, FTP, and SNMP restrict access to management Interfaces

Which solution must the engineer choose to meet the requirements?

A. in-band

B. enterprise internal private

C. out-of-band

D. mGRE

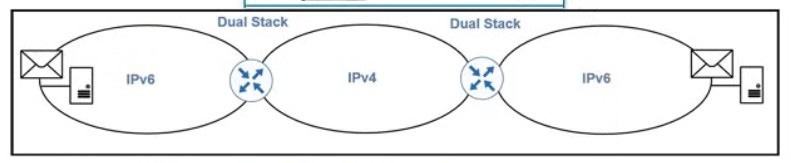

Refer to the exhibit.

Which method must an architect use to provide connectivity between the mail servers?

A. ISATAP

B. 6to4

C. IPv4 compaliDie

D. 6rd

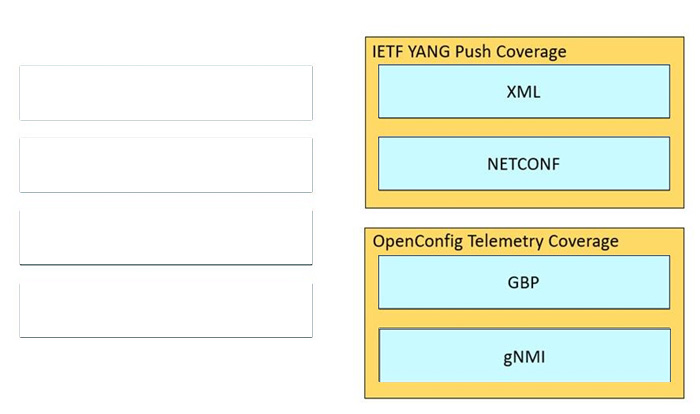

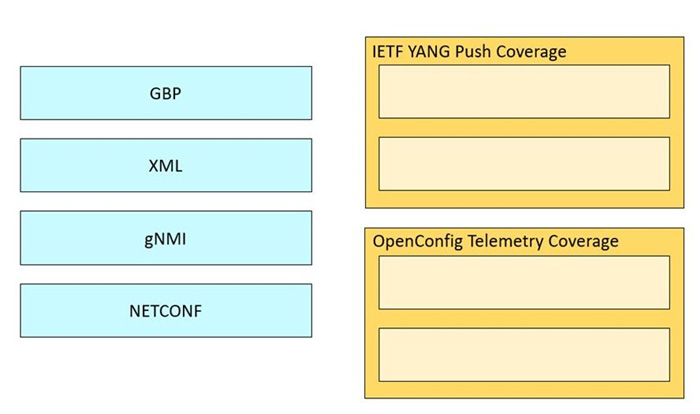

DRAG DROP

Drag and drop the elements from the left onto the YANG models where they and used on the right.

Select and Place:
