DRAG DROP

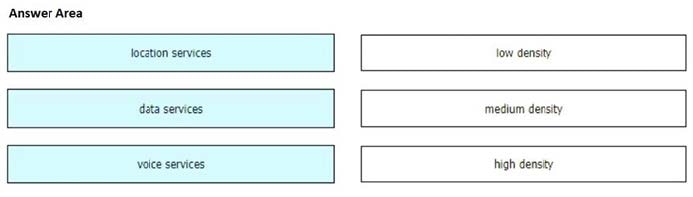

A wireless consultant is creating a wireless design for a multistory building. The building will house several groups that will use the wireless network for different operations. Depending on how the wireless network is used, different wireless approach designs must be taken. Drag and drop the services from the left onto the AP density levels on the right based on the wireless deployment requirements.

Select and Place:

What is the recommended cell overlap when designing a wireless network for Cisco Hyperlocation?

A. 20%

B. 30%

C. 40%

D. 50%

A wireless engineer is using Ekahau site survey to validate that an existing wireless network is operating as expected, which type of survey should be using to identify the end-to-end network performance?

A. GPS assisted

B. Spectrum analysis

C. Passive

D. Active ping

Why is 802.11a connectivity reduced in an X-ray room?

A. X-rays create significant non-Wi-Fi interference on the 802.11a band.

B. X-rays impact the 802,11a UNll-2 channels that cause access points to dynamically change channels.

C. X-rays within these rooms cause multipath issues.

D. X-ray rooms exhibit increased signal attenuation.

An enterprise is using the wireless network as the main network connection for corporate users and guests. To wireless network availability. Two Standalone controllers are installed in the head office. APs are connected to the controllers using a round-robin approach to load balance the traffic. After a power cut, the wireless clients disconnect while roaming. An engineer tried eping from the controller but faits. Which protocol needs to be allowed between the networks that the controllers are installed?

A. IP Protocol 67

B. IP Protocol 77

C. IP Protocol 87

D. IP Protocol 97

An engineer has designed an anchor redundancy for guest clients connecting to SSID with auto-anchor configured. After adding a second Anchor WLC under the SSID mobility anchor list, clients are load-balanced between existing and new anchors instead of having one anchor as active and the other one as standby. Which feature should be included in the design that will be configured on the WLC running 8.1 or above to ensure anchor redundancy?

A. Auto-Anchor Foreign Mapping

B. AP groups

C. Guest Anchor Priority

D. 802.11r

An engineer is designing a point-to-multipoint mesh network. Which two AP configurations must be completed for a site survey? (Choose two.)

A. MAP hostnames

B. Rx power

C. mesh on 2.4 GHz band

D. bridge group name

E. Tx power

An engineer is upgrading the legacy APs to 802.11ac Wave 2 capable APs. The existing gigabit uplinked switches provide 802.3at. Which switch limitation is a concern?

A. interface throughput

B. high availability

C. collision domains

D. output power

An engineer designed a new wireless network for an enterprise customer. The customer is concerned that some wireless features may not be available because the bill of materials has only Base and no WPlus licenses for the Cisco WLC version 8. What is the reason for the engineer to take this approach regarding the licenses?

A. OfficeExtend AP needs a WPlus license.

B. CAPWAP Data Encryption licenses are required for this feature.

C. All WLC features are available because WPLUS license is now included in the Base license.

D. To have all the features, Plus licenses must be installed on the WLC.

An engineer added an AP to a deployment after a post-installation site survey. The engineer then notices an increase in co-channel interference and retransmissions. Which two features help mitigate the issue? (Choose two.)

A. Cisco Compatible Extensions

B. Transmit Power Control

C. Enhanced Distributed Channel Access

D. Coverage Hole Detection

E. Dynamic Channel Assignment
