Correct Answer: B

A fully meshed topology with SD-WAN technology, using dynamic routing and BGP as the routing protocol, meets the requirements of the company because it provides the following benefits

It allows direct and secure connectivity between any two branch offices, without the need for a central hub or intermediary devices. This reduces the latency and improves the performance of the critical business applications. It leverages SDWAN technology to optimize the traffic flow and application quality of service (QoS) across the WAN. SD-WAN can dynamically select the best path for each application based on the network conditions and policies. SD- WAN can also provide redundancy, security, and visibility for the WAN. It uses dynamic routing and BGP as the routing protocol to exchange routing information and establish connectivity between the branch offices. BGP is a scalable and flexible protocol that can support multiple address families, such as IPv4 and IPv6, and multiple routing policies, such as local preference and route filtering. BGP can also enable seamless integration with the cloud service providers (CSPs) and internet service providers (ISPs).

References :

1: Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5) (Cisco U.login required)

2: Cisco SD-WAN Design Guide

Correct Answer: B

Security groups are a feature in AWS that allow you to control the inbound and outbound traffic to your instances. They act as a virtual firewall that can filter the traffic based on the source, destination, protocol, and port. You can assign one or more security groups to your instances, and each security group can have multiple rules. Security groups are stateful, meaning that they automatically allow the response traffic for any allowed inbound traffic, and vice versa. Security groups are essential for securing your nodes in the AWS EKS cluster, as they can prevent unauthorized access to your Mongo Atlas database or other resources.

References: AWS Security Groups Security Groups for Your VPC Security Groups for Your Amazon EC2 Instances Security Groups for Your Amazon EKS Cluster

Correct Answer: B

To enable the OMP advertisement of BGP routes for a specific VRF instance on a Cisco IOS XE SD-WAN device, the engineer must first configure the global address-family ipv4 and then enable bgp advertisement under the vrf definition.

This will allow the device to advertise the BGP routes learned from the cloud provider to the OMP control plane, which will then distribute them to the other SD-WAN devices in the overlay network.

References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3:Implementing Cloud Connectivity, Lesson 3: Configuring IPsec VPN from Cisco IOS XE to AWS, Topic: Configuring BGP on the Cisco IOS XE Device, Page 3-24.

Correct Answer: D

A centralized data policy is a policy that is applied to all devices in the overlay network, regardless of the site list. A localized data policy is a policy that is applied only to the devices that are listed in the site list. In this case, the network

engineer wants to apply the policy to all devices in the overlay network, not just the specific devices in the site list. Therefore, a centralized data policy must be configured on the on-premises Cisco WAN edge router.

References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3:

Implementing Cloud Connectivity, Lesson 3: Implementing Cisco SD-WAN Cloud OnRamp for Colocation, Topic: Centralized Data Policy [Cisco SD-WAN Cloud OnRamp for Colocation Deployment Guide], Chapter:

Configuring Centralized Data Policy

Correct Answer: A

The role of service providers to establish private connectivity between on- premises networks and Google Cloud resources is to facilitate direct, dedicated network connections through Google Cloud Interconnect. Google Cloud Interconnect is

a service that allows customers to connect their on-premises networks to Google Cloud through a service provider partner. This provides low latency, high bandwidth, and secure connectivity to Google Cloud services, such as Google

Compute Engine, Google Cloud Storage, and Google BigQuery. Google Cloud Interconnect also supports hybrid cloud scenarios, such as extending on-premises networks to Google Cloud regions, or connecting multiple Google Cloud

regions together. Google Cloud Interconnect offers two types of connections: Dedicated Interconnect and Partner Interconnect. Dedicated Interconnect provides physical connections between the customer's network and Google's network at

a Google Cloud Interconnect location. Partner Interconnect provides virtual connections between the customer's network and Google's network through a supported service provider partner. Both types of connections use VLAN attachments

to establish private connectivity to Google Cloud Virtual Private Cloud (VPC) networks.

References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0 [Google Cloud Interconnect Overview] [Google Cloud Interconnect Documentation]

Correct Answer: AE

To send traffic into an IPsec tunnel to the cloud VPN gateway, the engineer must configure two actions:

Configure access lists that match the interesting user traffic. This is the traffic that needs to be encrypted and sent over the IPsec tunnel. The access lists are applied to the crypto map that defines the IPsec parameters for the tunnel.

Configure policy-based routing (PBR). This is a technique that allows the engineer to override the routing table and forward packets based on a defined policy. PBR can be used to send specific traffic to the IPsec tunnel interface, regardless

of the destination IP address. This is useful when the cloud VPN gateway has a dynamic IP address or when multiple cloud VPN gateways are available for load balancing or redundancy.

References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3:

Implementing Cloud Connectivity, Lesson 3: Implementing IPsec VPNs to the Cloud, Topic: Configuring IPsec VPNs on Cisco IOS XE Routers Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter:

Configuring IPsec VPNs, Topic: Configuring Crypto Maps [Cisco IOS XE Gibraltar 16.12.x Feature Guide], Chapter: Policy-Based Routing, Topic: Policy-Based Routing Overview

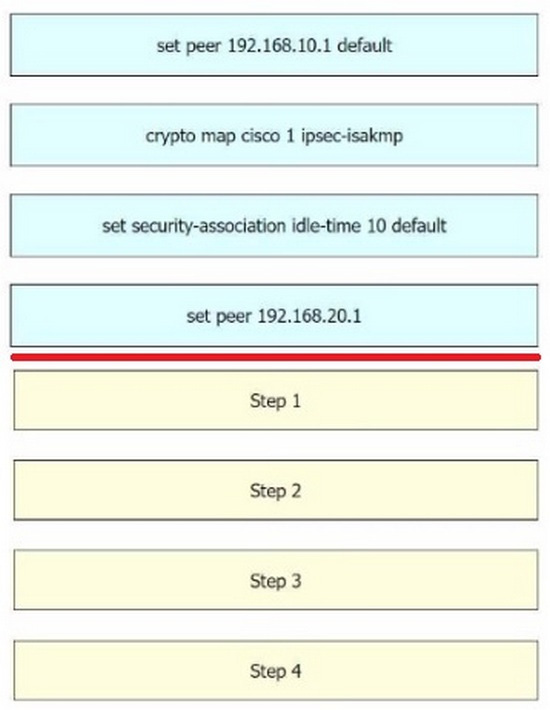

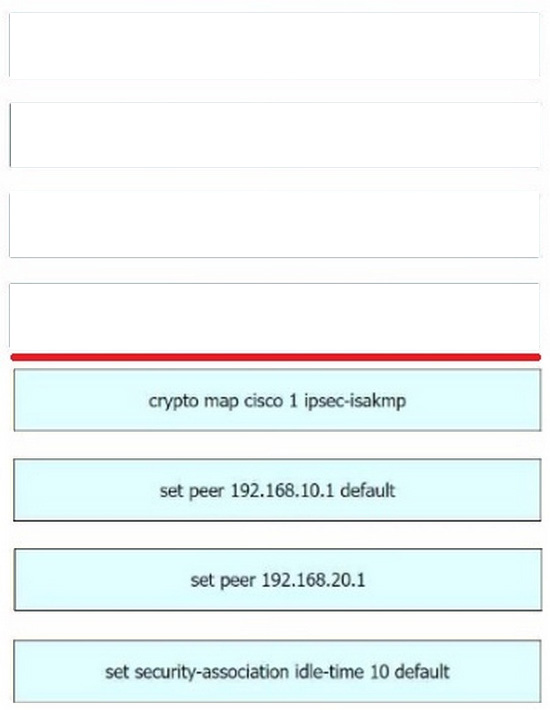

Correct Answer:

Step 1 = crypto map cisco 1 ipsec-isakmp Step 2 = set peer 192.168.10.1 default Step 3 = set peer 192.168.20.1 Step 4 = set security-association idle-time 120 default

The process of editing the settings of a site-to-site IPsec VPN connection between an on- premises Cisco IOS XE router and Amazon Web Services (AWS), and configuring IPsec to support multiple peers and failover after 120 seconds of idle time on the first entry of the crypto map named Cisco involves several steps123456. crypto map cisco 1 ipsec-isakmp: This command is used to create a new entry in the crypto map named "cisco". The "1" is the sequence number of the entry, and "ipsec-isakmp" specifies that the IPSec security associations (SAs) should be established using the Internet Key Exchange (IKE) protocol13. set peer 192.168.10.1 default: This command is used to specify the IP address of the default peer for the crypto map entry. In this case, the default peer is at IP address 192.168.10.115. set peer 192.168.20.1: This command is used to add an additional peer to the crypto map entry. In this case, the additional peer is at IP address 192.168.20.1. This allows the IPsec VPN to support multiple peers56. set security-association idle-time 120 default: This command is used to set the idle time for the security association. If no traffic is detected over the VPN for the specified idle time (in this case, 120 seconds), the security association is deleted, and the VPN connection fails over to the next peer46.

References: Configure a Site-to-Site IPSec IKEv1 Tunnel Between an ASA and a Cisco IOS Router - Cisco Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community Configuring Site to Site IPSec VPN Tunnel Between Cisco Routers Configure Failover for IPSec Site-to-Site Tunnels with Backup ISP Links on FTD Managed by FMC - Cisco Does Setting Multiple Peers in a Crypto Map Also Support Parallel IPSec Connections - Cisco Community Multiple WAN Connections -- IPsec in Multi-WAN Environments | pfSense Documentation Multiple Set Peer for VPN Failover - Server Fault

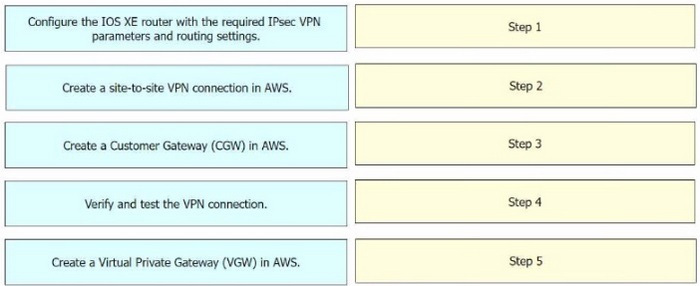

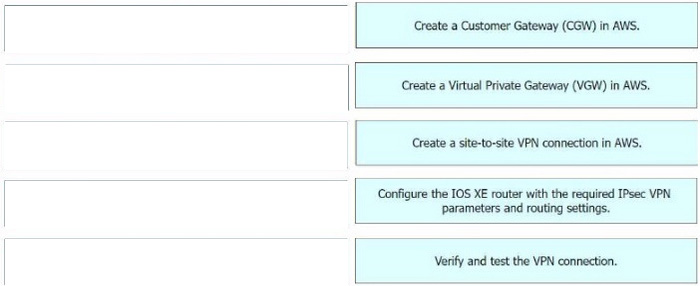

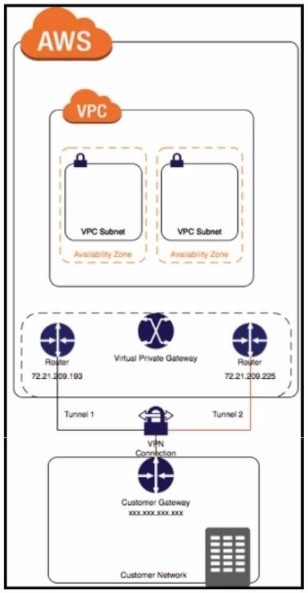

Correct Answer:

Step 1 = Create a Customer Gateway (CGW) in AWS.

Step 2 = Create a Virtual Private Gateway (VGW) in AWS.

Step 3 = Create a site-to-site VPN connection in AWS.

Step 4 = Configure the IOS XE router with the required IPsec VPN parameters and routing settings.

Step 5 = Verify and test the VPN connection.

The process of configuring a site-to-site VPN connection between an on-premises Cisco IOS XE router and Amazon Web Services (AWS) involves several steps

Create a Customer Gateway (CGW) in AWS: This is the first step where you define the public IP address of your on-premises Cisco IOS XE router in AWS. Create a Virtual Private Gateway (VGW) in AWS: This involves creating a VGW and

attaching it to the VPC in AWS.

Create a site-to-site VPN connection in AWS: After setting up the CGW and VGW, you then create a site-to-site VPN connection in AWS. This involves specifying the CGW, VGW, and the static IP prefixes for your on-premises network.

Configure the IOS XE router with the required IPsec VPN parameters and routing settings: After the AWS side is set up, you configure the on-premises Cisco IOS XE router with the required IPsec VPN parameters and routing settings. Verify

and test the VPN connection: Finally, you verify and test the VPN connection to ensure that it is working correctly.

References:

Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community

SD-WAN Configuration Example: Site-to-site (LAN to LAN) IPSec between vEdge and Cisco IOS - Cisco Community

Correct Answer:

Enhanced Policy-Based Routing (ePBR) is used to direct packets that arrive at an interface to a specified next-hop. It is very useful in managing a large number of configured access lists more efficiently. In ePBR, the router drops the traffic packets if the next hop configured in the PBR policy is not reachable. To avoid packet loss in such scenarios, you must configure multiple next hops for each access control entry. Here are the steps to configure ePBR for IPv4 using Cisco vManage: Configure an extended ACL: This step involves defining the network or the host. For example, you can permit IPv4 traffic from any source to specific hosts. Configure a class map that matches the ACL: Class maps match the parameters in the ACLs. For instance, you can create a class map of type traffic and match it with the previously created ACL. Configure the policy map with the action to set the next hop: Policy maps with ePBR then take detailed actions based on the set statements configured. You can configure an ePBR policy map with the class map and set the next hop. Apply the service policy on the interface: Finally, you apply the ePBR policy map to the interface. For example, you can apply the policy map to a GigabitEthernet interface. References : Implementing Enhanced Policy Based Routing - Cisco Cisco Catalyst SD-WAN Policies Configuration Guide, Cisco IOS XE How to configure PBR - Cisco Community

Correct Answer:

Step 1 = Create the groups of interest.

Step 2 = Configure the topology.

Step 3 = Create the application-aware routing policy.

Step 4 = Apply the application-aware routing policy to a specific VPN and sites.

The process of configuring an application-aware routing policy in Cisco vManage involves several steps.

Create the groups of interest: This is the first step where you define the applications or groups that the policy will affect. Configure the topology: This involves setting up the network topology that the policy will operate within.

Create the application-aware routing policy: After setting up the groups and topology, you then create the application-aware routing policy. This policy tracks network and path characteristics of the data plane tunnels between Cisco SD- WAN

devices and uses the collected information to compute optimal paths for data traffic.

Apply the application-aware routing policy to a specific VPN and sites: Finally, the created policy is applied to a specific VPN and sites. This allows the policy to affect the desired network traffic.

References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0 Learning Plan: Designing and Implementing Cloud Connectivity v1.0 (ENCC 300- 440)

Information About Application-Aware Routing - Cisco Configuring Application-Aware Routing (AAR) Policies | NetworkAcademy.io Policies Configuration Guide, Cisco IOS XE SD-WAN Releases 16.11, 16.12
