Assume that the R1 router is enabled for PIM-SM and receives a multicast packet sourced from 172.16.1.100, and the R1 router has multicast receivers on the Gi0/1, Gi0/2, Gi0/3 and Gi0/4 interfaces.

The multicast packet from the 172.16.1.100 source must arrive on which interface on the R1 router for it to be forwarded out the other interfaces?

A. Gi0/1

B. Gi0/2

C. Gi0/3

D. Gi0/4

E. Gi0/1 or Gi0/2 or Gi0/3 or Gi0/4

F. Gi0/2 or Gi0/3

G. Gi0/1 or Gi0/4

You have configured MSDP peering between two autonomous systems that pass traffic between two sites, but the peering has failed to come up. Which task do you perform to begin troubleshooting the problem?

A. Verify that multicast has been disabled globally

B. Verify that PIM-DM is configured on the source interface

C. Verify that both source interfaces are reachable from both peers

D. Verify that the two MSDP peers allow asymmetric routing

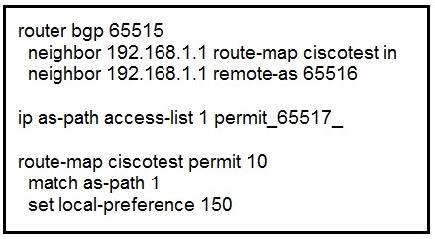

Refer to the exhibit.

After troubleshooting BGP traffic steering issue, which action did the network operator take to achieve the correct effect of this configuration?

A. Routes that have passed through AS 65517 have the local preference set to 150.

B. Routes that have originated through AS 65517 have the local preference set to 150.

C. Routes directly attached to AS 65517 have the local preference set to 150.

D. Routes that have passed through AS 65517 have the local preference set to 150 and the traffic is denied.

What are three requirements for a static IPv6-in-IPv4 tunnel? (Choose three.)

A. A static IPv6 address must be configured.

B. A dynamic IPv6 address must be configured.

C. Cisco Express Forwarding must be enabled.

D. Each tunnel endpoint must support IPv4 and IPv6.

E. A static IPv4 address must be configured.

F. A dynamic IPv4 address must be configured.

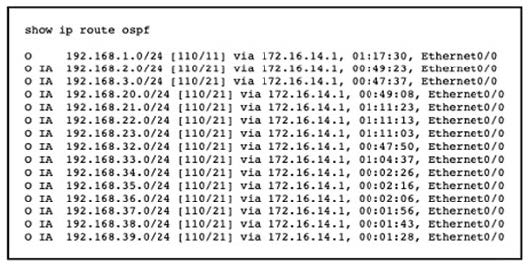

Refer to the exhibit.

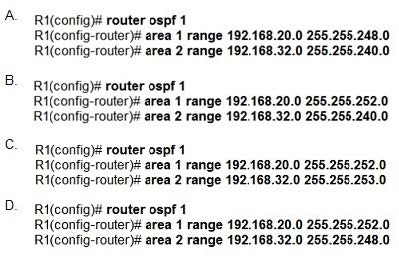

An engineer applied the summarization configuration on R1 for four networks (192.168.20.0/24 to 192.168.23.0/24) in area 1 and eight networks (192.168.32.0/24 to 192.168.39.0/24) in area 2 to stop the flooding of all the customer routes. While checking the routing table of R2, the engineer noticed that R1 is still sending only specific routes to R2. Which configuration should the engineer apply on R1 to summarize routes?

A. Option A

B. Option B

C. Option C

D. Option D

Refer to the exhibit.

An engineer is troubleshooting an issue with this network and notices that prefixes from R3 are missing on the R1 routing table Due to repeated ASN when the 10 0 0 0'8 prefix from R3 arrives at R1, BGP automatically rejects it There is no prefix-list on R1 which blocks the traffic from R3 What should the engineer do to fix the problem so that BGP allows that prefix on R1?

A. Configure R2 as a route reflector client of R1.

B. Configure the allowas-in command on R1.

C. Configure the next-hop-self command on R2.

D. Configure identical confederation ASNs on R1 and R2.

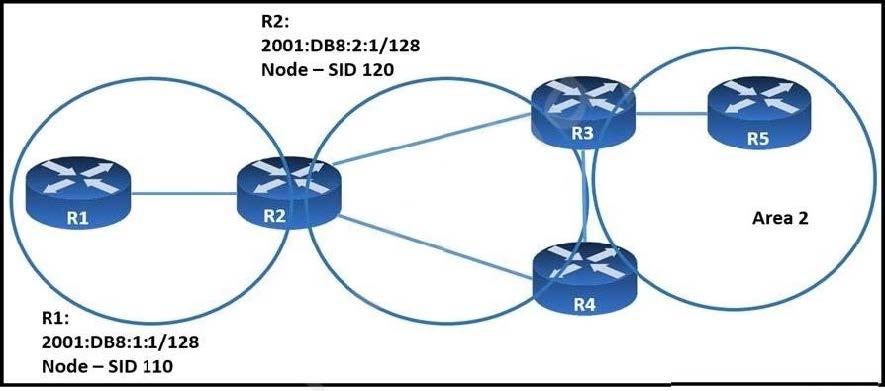

Refer to the exhibit.

When implementing SRv6, which SID does R2 propagate into area 0 for the prefix 2001:DB8:1:1/128?

A. 120

B. 230

C. 110

D. 10

Which feature provides service independence in service provider networks?

A. node SID that identifies the network device

B. prefix SID that contains router hops toward the destination

C. adjacency SID that represents a path between the routers

D. binding SID that is used to stitch different domains

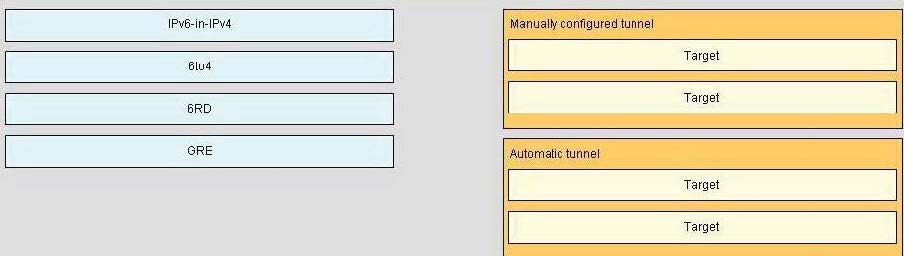

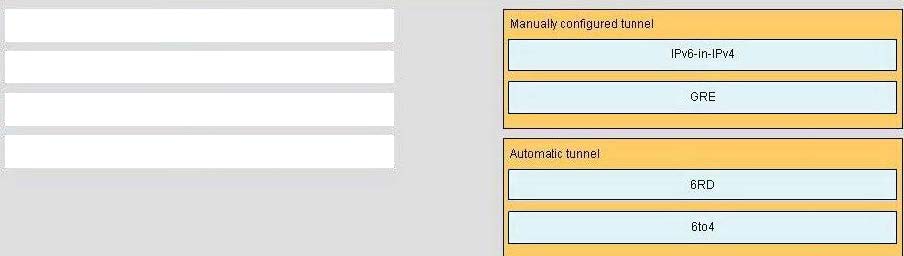

DRAG DROP

Drag the IPv6 tunneling mechanisms on the left to match the correct manual or aotomatic tunneling catagory on the right.

Select and Place:

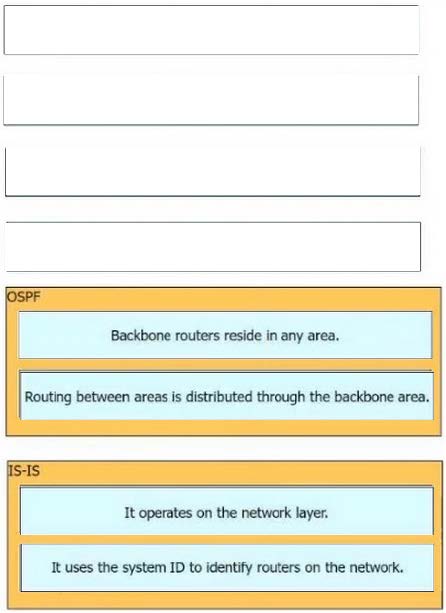

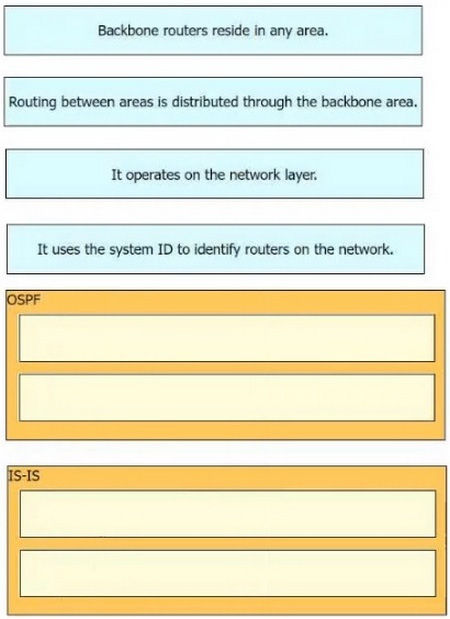

DRAG DROP

Drag and drop the characteristics from the left onto the corresponding routing protocols on the right.

Select and Place:
