Which two statements describe primary differences between MPLS Layer 2 and Layer 3 VPNs? (Choose two.)

A. Layer 2 VPNs use IPsec tunneling, but Layer 3 VPNs use L2TPv3 tunneling.

B. Layer 2 VPNs use AToM, but Layer 3 VPNs use MPLS/BGP.

C. Layer 2 VPNs use BGP, but Layer 3 VPNs use VPLS.

D. Layer 2 VPNs use L2TPv3 tunneling, but Layer 3 VPNs use GRE tunneling.

E. Layer 2 VPNs use IPsec tunneling, but Layer 3 VPNs use pseudowires to provide tunneling.

Which tool identifies the point of failure in a P2MP LSP from the ingress LSR?

A. Jitter TLV

B. SPAN

C. P2MP traceroute

D. P2MP ping

What do EVPN single-active and all-active have in common?

A. They are default gateway redundancy options.

B. They are multihoming mechanisms used for CE devices.

C. They are used to provide single connection from a CE device to a service provider.

D. They are both roles that a designated router can take when MPLS is used with EVPN.

With Layer 3 MPLS VPN implementations on Cisco IOS XR PE routers, an interface is assigned to a VRF using the vrf command in which configuration mode?

A. RP/0/RP0/CPU0:PE(config-bgp)#

B. RP/0/RP0/CPU0:PE(config-if)#

C. RP/0/RP0/CPU0:PE(config-bgp-af)#

D. RP/0/RP0/CPU0:PE(config-vrf)#

While implementing Layer 3 MPLS VPN, which feature should an engineer use at the PEs to transform the customer IPv4 prefixes into a unique 96-bit prefix?

A. RT

B. VC ID

C. RD

D. PW ID

Refer to the exhibit. Which statement about this configuration is true?

A. Router 1 will accept multicast routes with a route-target of 12:1.

B. 192.168.1.2 must be reachable by all routers participating in the mvpn-intranet MVRF.

C. Router 1 has statically defined thresholds for data MDT.

D. The MVRF must be configured on each router on the customer and service provider networks.

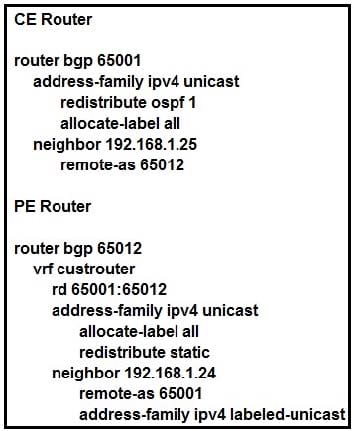

Refer to the exhibit. The CE router has established a BGP peering with the PE router, and the CE will use the core infrastructure of the PE as a backbone carrier to support CSC. Which additional task can you perform to complete the configuration?

A. Configure static routing on the CE router.

B. Configure the address-family ipv4 labeled-unicast command under the neighbor configuration of the CE router for the PE.

C. Change the rd value to 65001:65001 under the VRF section of the PE router.

D. Configure OSPF on the PE router.

Which two statements about MPLS L3 VPN RDs are true? (Choose two.)

A. They enable EIGRP to use address families to separate traffic between IPv4 and VPNv4.

B. They are represented as 32-bit values

C. They are represented as 64-bit values.

D. They enable OSPF to import and export routes into the global routing table of a router.

E. They allow BGP to uniquely identify duplicate routes.

Refer to the exhibit. Which statement about this command is true?

A. It must be configured on each PE router to enable the PE routers to receive multicast traffic for this particular MVRF.

B. It is used to set the designated router on a link using PIM-SM.

C. It must be configured on the PE and CE router to enable MP-BGP to send labels for CSC.

D. It is used to set the router that will server as the root bridge for STP.

Refer to the exhibit.

What is shown in this output?

A. local and outgoing abels are updated in hardware

B. BGP is used between neighbors that are exchanging MPLS labels

C. LDP neighbor statuses

D. the labels received and advertised on PE1
