Refer to the exhibit.

HSRP adjacency fails to form between Nexus7K-1 and Nexus7K-2. Which action should be taken to solve the problem?

A. Configure preempt on one of the switches in the HSRP group.

B. Configure the same HSRP priority between the two switches.

C. Configure the correct subnet mask on Nexus7K-1.

D. Configure HSRP version 2 on Nexus7K-2.

Refer to the exhibit.

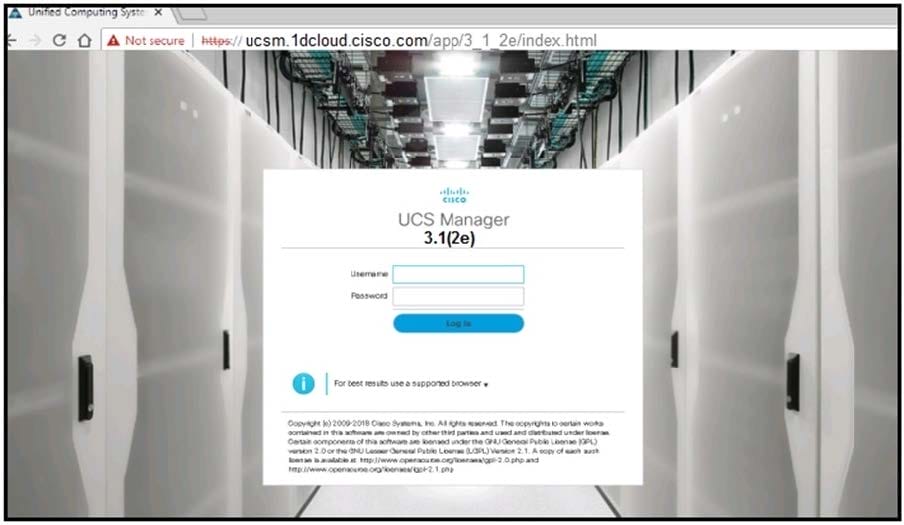

A web browser displays a "not secure" warning message when accessing the web interface of Cisco UCS Manager. Which action resolves the issue?

A. Load third-party certificate to UCS Manager.

B. Use the correct TCP port for HTTPS.

C. Use a supported web browser.

D. Use a supported version of UCS Manager.

Refer to the exhibit.

An engineer is performing a health check on ACI. Which statement about interface Ethernet 1/11 is true?

A. The interface is working correctly and fully operational, but it is not in use.

B. The interface policy is misconfigured.

C. "out-of-service" is the default interface status in ACI.

D. "out-of-service" indicates that no service graph is in use for this interface.

You upgrade Cisco UCS Director. When you power on the Cisco UCS Director VM, the websock service fails to start. Which action do you take to resolve the issue?

A. Resynchronize the NTP time and time zone information on each node.

B. Import the correct SSL certificates.

C. After you power on the VM, press Alt-F1 to refresh the VMware console.

D. Ensure that the websock service starts automatically after an upgrade.

Refer to the exhibit.

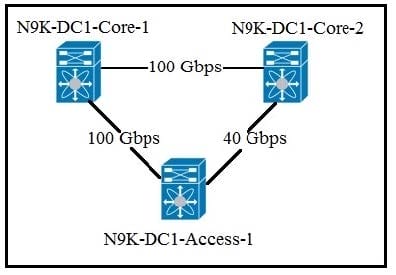

The spanning tree is blocking the connection between N9K-DC1-Core-1 and N9K-DC1-Access-1. All ports are up and configured. Which configuration resolves the issue?

A. Set the pathcost method to long on all three switches

B. Configure a vPC between N9K-DC1-Core-1 and N9K-DC1-Access-1

C. Configure LACP between N9K-DC1-Core-1 and N9K-DC1-Access-1

D. Lower the spanning tree cost on the connection between N9K-DC1-Core-2 and N9K-DC1-Access-1

A network engineer is implementing the Cisco ACI Fabric and notices that the Leaf-1 switch is registered, has an assigned name, but is displayed as inactive in the APIC. After further investigation, it became clear that the leaf switch was recently moved from another Cisco ACI environment. Which action resolves the problem?

A. Clean reload the Leaf-1 switch

B. Define the new TEP address for Leaf-1

C. Change the clock offset from low to high between apic 1 and Leaf-1

D. Modify the ISIS interface peering IP address between apic 1 and Leaf-1

Refer to the exhibit.

A network engineer configures OSPF protocol between two Cisco Nexus 7000 Series Switches. The OSPF neighbors fail to synchronize OSPF databases. Which action resolves the issue?

A. Match the OSPF area between the two devices.

B. Configure the IP addresses of the interface in the same subnet.

C. Change the OSPF area type to 2 on n7k-1.

D. Set the same MTU values on both sides of the link.

Refer to the exhibit.

An engineer configures EVPN on Switch-1. but the neighbors fail to exchange EVPN routes. Which action resolves the issue?

A. Configure neighbor 192.168.0.7 as an L2VPN EVPN route-reflector client.

B. Activate the IPv4 unicast address family for neighbor 192.168.0.7.

C. Enable the send extended community option for the L2VPN EVPN address family.

D. Advertise L2VPN EVPN under the IPv4 unicast address family.

DRAG DROP

You must troubleshoot an issue with DAI on a Cisco Nexus switch. Drag and drop the DAI configuration steps from the left into the order they must be implemented in on the right.

Select and Place:

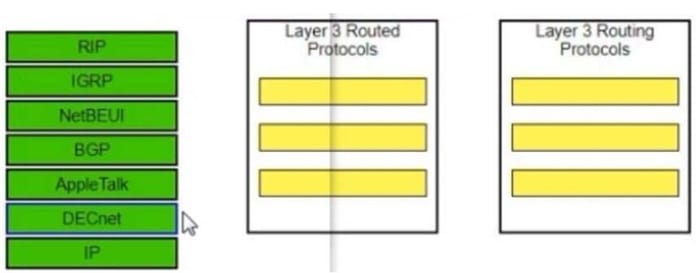

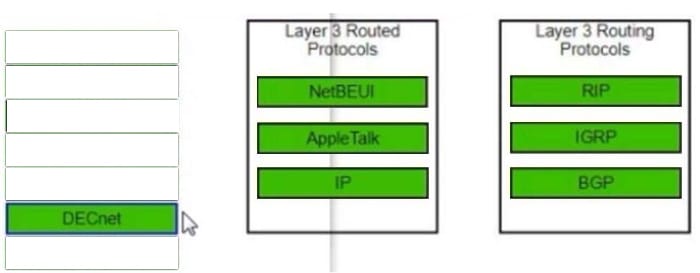

DRAG DROP

Drag each item listed on the left to its proper category on the right Not all items will fit the categories.

Select and Place:
