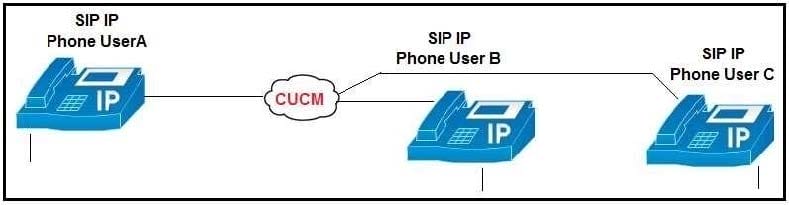

Refer to the exhibit.

In an active SIP call between phone user A and phone user B, phone A initiates a call transfer to phone user C. What are two results from this action? (Choose two.)

A. Phone_A sends a SIP-REFER message to the Cisco Unified Communications Manager with Phone_C information in the Refer-To section.

B. Phone_B sends a SIP-REFER message to the Cisco Unified CM with Phone_C information in the Refer-To section.

C. As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the MOH and the MOH audio is chosen from Phone_B User Hold MOH Audio Source settings.

D. As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the music on hold and the MOH audio is chosen from Phone_A Network Hold MOH Audio Source settings.

E. As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the MOH and the MOH audio is chosen from Phone_A User Hold MOH Audio Source settings.

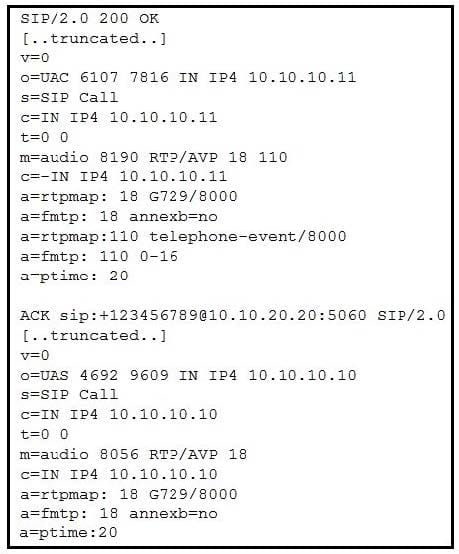

Refer to the exhibit.

Users report that when they dial to Cisco Unity Connection from an external network, they cannot enter any digits. Assuming only in-band DTMF is supported, what is a reason for this malfunction?

A. The negotiated RTP port is outside of the range described by RFC, so inband DTMFs do not work.

B. There is SIP Delayed Offer. DTMF is supported only in Early Offer.

C. The rtpmap:0 value for the negotiated codec is marking DTMF as inactive.

D. No DTMF is negotiated.

Refer to the exhibit.

A user reports that when they call a specific phone number, no one answers the call, but when they call from a mobile phone, the call is answered. The engineer troubleshooting the issue is expecting the far-end gateway to cut through audio on the 183 Session Progress SIP message. Which SIP Profile configuration element is necessary for the Cisco Unified Communications Manager to send acknowledgement of provisional responses?

A. Allow Passthrough of Configured Line Device Caller Information must be enabled.

B. Accept Audio Codec Preferences in Received Offer must be set to On.

C. On the SIP Profile, the configuration parameter SIP Rel1XX Options must be set to Send PRACK for all 1xx Messages.

D. Early Offer for G Clear Calls must be enabled.

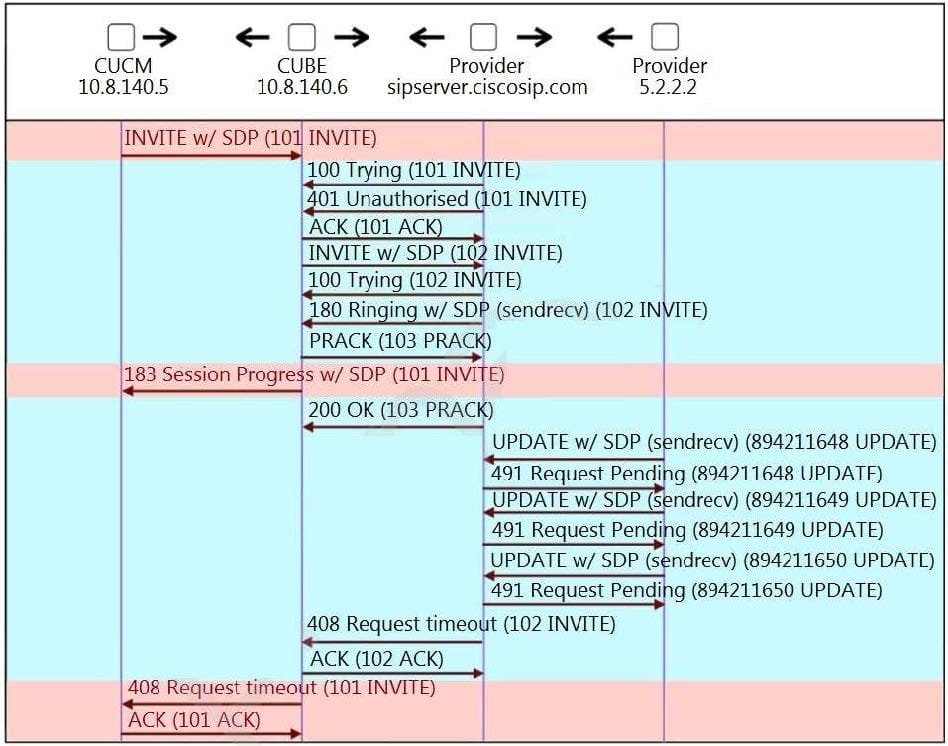

Refer to the exhibit.

A Cisco Unified Border Element continues to send 180/183 with the required: 100rel header to Cisco UCM, and the call eventually disconnects. How is the issue resolved?

A. Disable "SIP Rel1XX Options" and "Early Offer Support" on the SIP Profile Configuration Page in Cisco UCM.

B. Enable "SIP Rel1XX Options" and "Early Offer Support" on the SIP Profile Configuration Page in Cisco UCM.

C. Disable "Send send-receive SDP in mid-call INVITE" on the SIP Profile Configuration Page in Cisco UCM.

D. Enable "Early Offer support for voice and video calls" on the SIP Profile Configuration Page in Cisco UCM.

Refer to the exhibit.

An engineer is troubleshooting an issue with the caller not hearing a PSTN announcement before the SIP call has completed setup. How must the engineer resolve this issue using the reliable provisional response of the SIP?

A. voice service voip sip no rel1xx

B. sip-ua disable-early-media 180

C. voice service voip sip rel1xx require 100rel

D. voice service voip sip send 180 sdp

An engineer must configure a secure SIP trunk with a remote provider, with a specific requirement to use port 5065 for inbound and outbound traffic. Which two items must be configured to complete this configuration? (Choose two.)

A. Incoming Port in SIP Information section of the SIP Trunk configuration.

B. Incoming Port in Security Information of the SIP Profile configuration.

C. Destination Port in SIP Information section of the SIP Trunk configuration

D. Incoming Port in SIP Trunk Security Profile configuration

E. Destination Port in SIP Trunk Security Profile configuration

Where on Cisco UCM does the administrator configure the standard local route group for a group of devices?

A. System > Location Info

B. Call Routing > Route/Hunt > Local Route Group Names

C. System > Device Pool

D. Call Routing > Emergency Location > Emergency Location (ELIN) Groups

When locations-based Call Admission Control denies the call, which two masks can AAR apply when routing the call through the PSTN? (Choose two.)

A. AAR destination mask

B. called party transform mask

C. external phone number mask

D. +E.164 alternate number mask

E. enterprise alternate number mask

A company was looking at the IT charges and saw many long-distance and international calls primarily to sites in North America and around the world. The administrator wants to optimize the PSTN expense. Which dial plan configuration reduces PSTN connectivity charges by using the IP network to bring the egress point to the PSTN as close as possible to the called number?

A. translation patterns

B. tail end hop off

C. client matter codes

D. dial rules

The sales department must answer phones when other sales members are not at their desks. The administrator knows that configuring Call Pickup allows the sales users to answer all the calls in the department by pressing only the softkey. Which call pickup configuration meets this requirement?

A. Standard Call Pickup

B. Group Call Pickup

C. Other Group Call Pickup

D. Directed Call Pickup
