A stand-alone LTM device is to be paired with a second LTM device to create an active/standby pair. The current stand-alone LTM device is in production and has several VLANs with floating IP addresses configured. The appropriate device service clustering (DSC) configurations are in place on both LTM devices.

Which two non-specific DSC settings should the LTM Specialist configure on the second LTM device to ensure no errors are reported when attempting to synchronize for the first time? (Choose two.)

A. pools

B. VLANs

C. default route

D. self IP addresses

An LTM Specialist sees these entries in /var/log/ltm:

Oct 25 03:34:31 tmm warning tmm[7150]: 01260017:4: Connection attempt to insecure SSL server (see RFC5746) aborteD. 172.16.20.1:443 Oct 25 03:34:32 tmm warning tmm[7150]: 01260017:4: Connection attempt to insecure SSL server (see RFC5746) aborteD. 172.16.20.1:443 Oct 25 03:34:32 tmm warning tmm[7150]: 01260017:4: Connection attempt to insecure SSL server (see RFC5746) aborteD. 172.16.20.1:443 Oct 25 03:34:32 tmm warning tmm[7150]: 01260017:4: Connection attempt to insecure SSL server (see RFC5746) aborteD. 172.16.20.1:443 Oct 25 03:34:32 tmm warning tmm[7150]: 01260017:4: Connection attempt to insecure SSL server (see RFC5746) aborteD. 172.16.20.1:443 Oct 25 03:34:33 tmm warning tmm[7150]: 01260017:4: Connection attempt to insecure SSL server (see RFC5746) aborteD. 172.16.20.1:443

Assume 172.16.20.0/24 is attached to the VLAN "internal."

What should the LTM Specialist use to troubleshoot this issue?

A. curl -d - -k https://172.16.20.1

B. ssldump -i internal host 172.16.20.1

C. tcpdump -i internal host 172.16.20.1 > /shared/ssl.pcap ssldump < /shared/ssl.pcap

D. tcpdump -s 64 -i internal -w /shared/ssl.pcap host 172.16.20.1 ssldump -r /shared/ssl.pcap

An LTM Specialist is investigating reports from users that SSH connections are being terminated unexpectedly. SSH connections are load balanced through a virtual server. The users experiencing this problem are running SQL queries that take upwards of 15 minutes to return with no screen output. The virtual server is standard with a pool associated and no other customizations.

What is causing the SSH connections to terminate?

A. UDP IP ToS

B. TCP idle timeout

C. The virtual server has no persistence.

D. The pool has Reselect Retries set to 0.

A web application requires the client to provide the destination server and service identification. Which HTTP header will supply this information?

A. Host

B. From

C. Expect

D. Connection

An LTM Specialist with the Administrator role and terminal access of "tmsh" logs in via ssh and is in the Traffic Manager Shell. The LTM Specialist wants to enter the bash shell to review log files. Which command does the LTM Specialist need to run to access the bash shell?

A. exit

B. quit

C. run /cli bash

D. run /util bash

Given LTM device ltm log:

Sep 26 20:51:08 local/lb-d-1 notice promptstatusd[3695]: 01460006:5: semaphore mcpd.running(1) held

Sep 26 20:51:08 local/lb-d-1 notice promptstatusd[3695]: 01460006:5:

Sep 26 20:51:08 local/lb-d-1 warning promptstatusd[3695]: 01460005:4: mcpd.running(1) held, wait for mcpd

Sep 26 20:51:08 local/lb-d-1 info sod[3925]: 010c0009:6: Lost connection to mcpd - reestablishing.

Sep 26 20:51:08 local/lb-d-1 err bcm56xxd[3847]: 012c0004:3: Lost connection with MCP: 16908291 ... Exiting bsx_connect.cpp(174)

Sep 26 20:51:08 local/lb-d-1 info bcm56xxd[3847]: 012c0012:6: MCP Exit Status

Sep 26 20:51:08 local/lb-d-1 info bcm56xxd[3847]: 012c0012:6: Info: LACP stats (time now:1348717868) : no traffic

Sep 26 20:51:08 local/lb-d-1 info bcm56xxd[3847]: 012c0014:6: Exiting...

Sep 26 20:51:08 local/lb-d-1 err lind[3842]: 013c0004:3: IO error on recv from mcpd - connection lost

Sep 26 20:51:08 local/lb-d-1 notice bigd[3837]: 01060110:5: Lost connection to mcpd with error 16908291, will reinit connection.

Sep 26 20:51:08 local/lb-d-1 err statsd[3857]: 011b0004:3: Initial subscription for system configuration failed with error ''

Sep 26 20:51:08 local/lb-d-1 err statsd[3857]: 011b0001:3: Connection to mcpd failed with error '011b0004:3: Initial subscription for system configuration failed with error '''

Sep 26 20:51:08 local/lb-d-1 err csyncd[3851]: 013b0004:3: IO error on recv from mcpd - connection lost

.............skipping more logs.....

Sep 26 20:51:30 local/lb-d-1 notice sod[3925]: 01140030:5: HA proc_running bcm56xxd is now responding.

Sep 26 20:51:34 local/lb-d-1 notice sod[3925]: 01140030:5: HA proc_running mcpd is now responding.

Sep 26 20:51:34 local/lb-d-1 notice sod[3925]: 010c0018:5: Standby

Which daemon failed?

A. promptstatusd

B. mcpd

C. sod

D. bcm56xxd

E. lind

-- Exhibit -

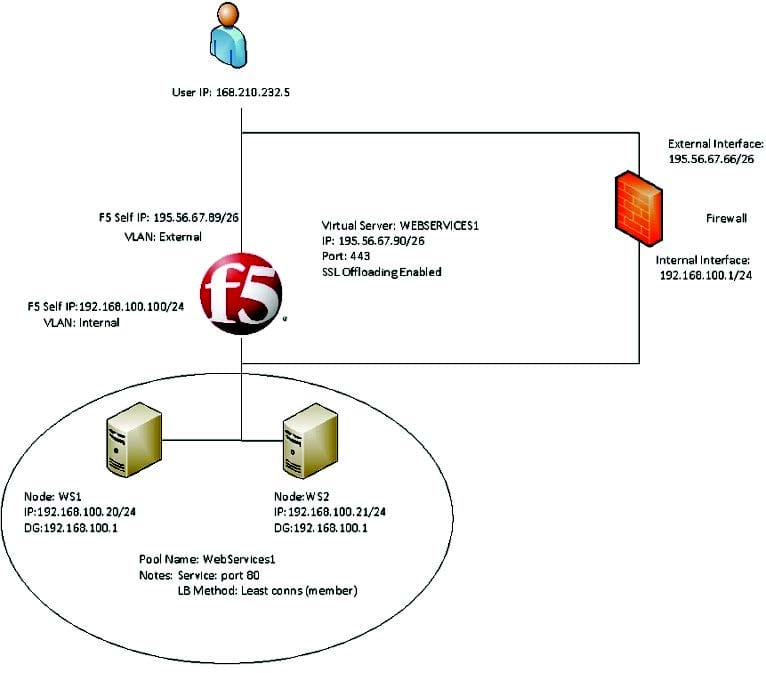

-- Exhibit -Refer to the exhibit.

A company uses a complex piece of client software that connects to one or more virtual servers (VS) hosted on an LTM device. The client software is experiencing issues. An LTM Specialist must determine the cause of the problem.

The LTM Specialist is seeing a client source IP of 168.210.232.5 in the tcpdump. However, the client source IP is actually 10.123.17.12.

Why does the IP address of 10.123.17.12 fail to appear in the tcpdump?

A. The LTM device performed NAT on the individual's IP address.

B. The Secure Network Address Translation (SNAT) pool on the virtual server is activated.

C. Network Address Translation (NAT) has occurred in the path between the client and the LTM device.

D. The individual's data stream is being routed to the LTM device by a means other than the default route.

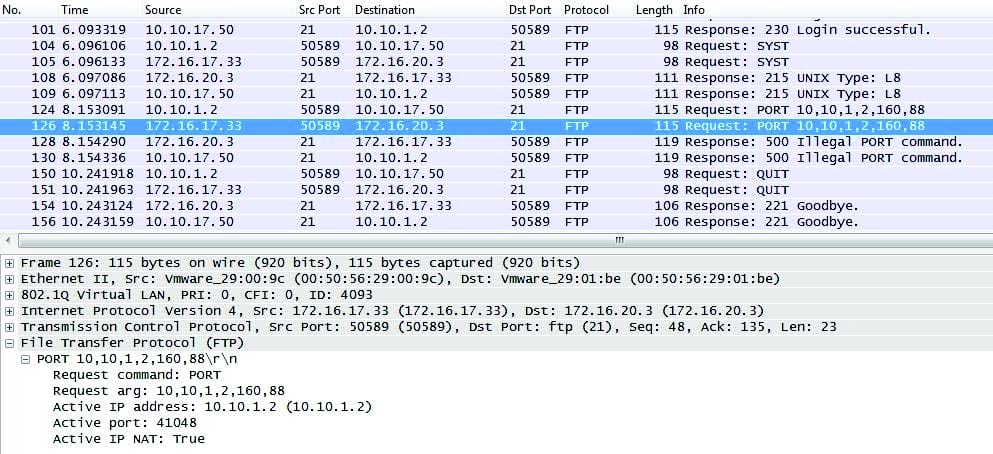

-- Exhibit -- Exhibit -Refer to the exhibit. An LTM Specialist is investigating reports that users are unable to perform some commands through an FTP virtual server. The users are receiving the FTP error "500 Illegal PORT command." The virtual server is configured to SNAT using

automap. The LTM Specialist performs a capture on the server side of the LTM device. Why is the server returning this error?

A. LIST command disallowed

B. PORT command disallowed

C. Active IP address in PORT command

D. Active IP address in LOGIN command

-- Exhibit

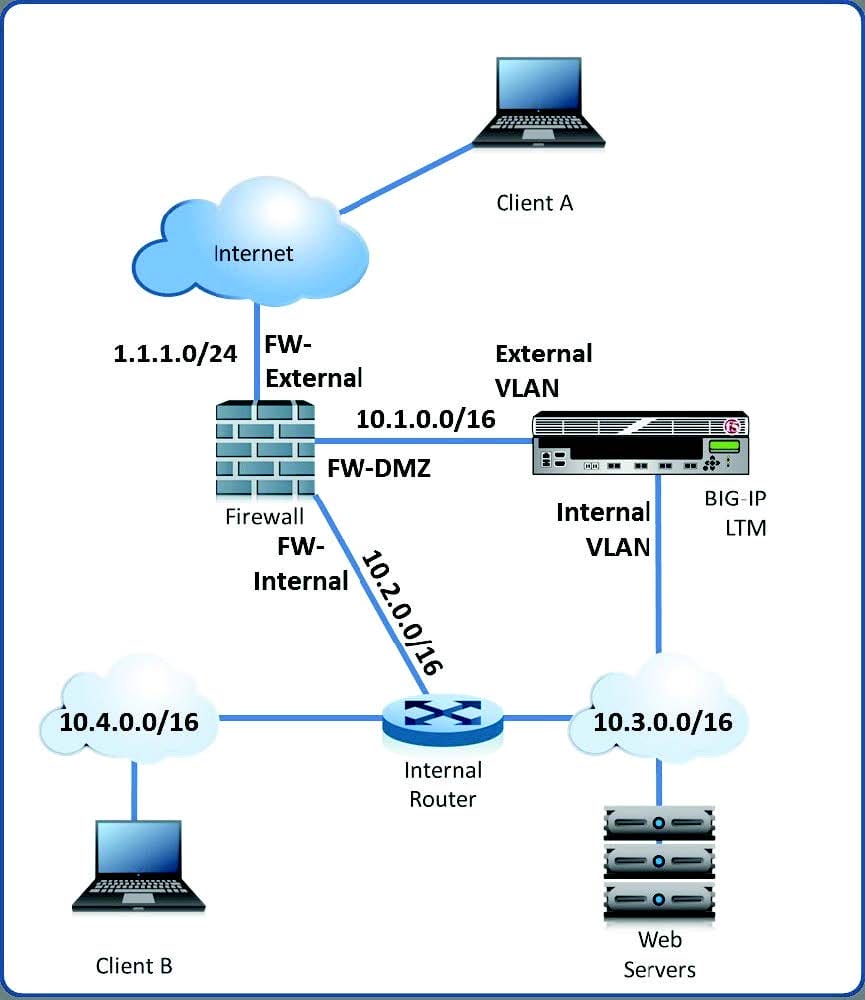

-- Exhibit -Refer to the exhibit.

A layer 2 nPath routing configuration has been deployed. A packet capture contains a client connection packet with the following properties:

Source IP:

Destination IP:

At which two locations could the packet capture have been taken? (Choose two.)

A. the network interface of web server

B. the DMZ interface of the Internet firewall

C. the internal interface of the Internet firewall

D. the external VLAN interface of the LTM device

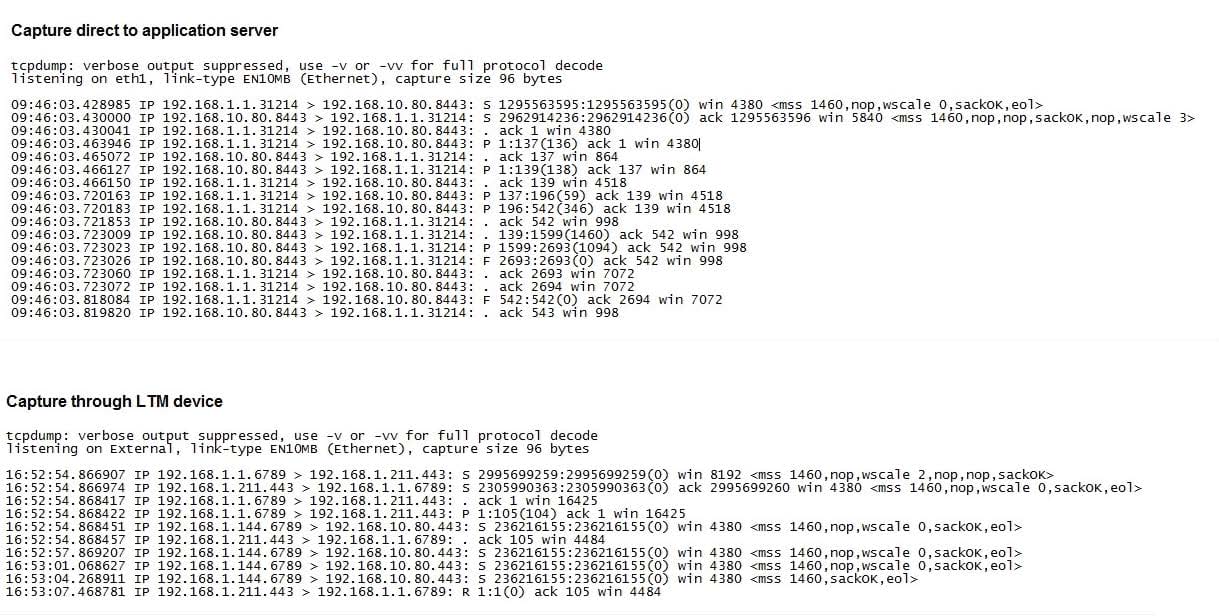

-- Exhibit -- Exhibit -Refer to the exhibits. An LTM Specialist is troubleshooting an issue with one of the virtual servers on an LTM device, and all requests are receiving errors. Testing directly against the server generates no errors. The LTM Specialist has captured the request and

response on both client and server sides of the LTM device. What should the LTM Specialist do to fix this issue?

A. Remove "header-erase Host" in http profile.

B. Configure SNAT Automap on the virtual server.

C. Assign OneConnect profile to the virtual server.

D. Set "redirect-rewrite" to "selective" in http profile.
