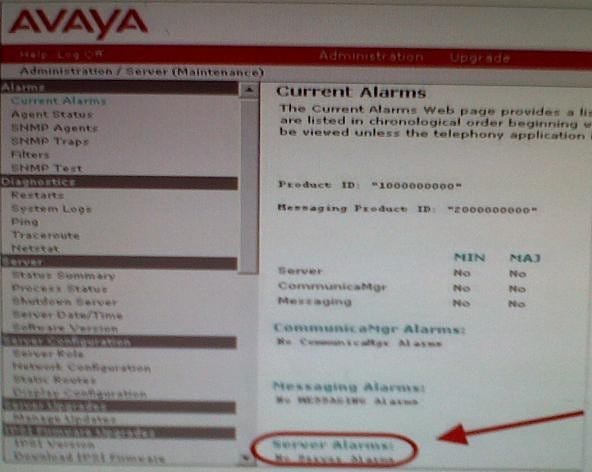

In addition to consulting Avaya Aura® Communication Manager Server Alarms (03-602798) for interpreting the Server Alarms section of the Current Alarms Page as shown In the exhibit, what other information source helps interpret these alarms l

A. Status Summary page (SMI)

B. SAT: display alarms command

C. Server manufacture's maintenance documentation

D. SAT: display events command

You have activated Outcalllng but it Is sometimes delayed when sending out the notifications. All the outcalling defaults will improve the situation? Which option will improve this situation?

A. Turn outcalling off and then on again.

B. Restart messaging.

C. Increase the maximum simultaneous ports and used for outcalling

D. Change the outcalling start and end times.

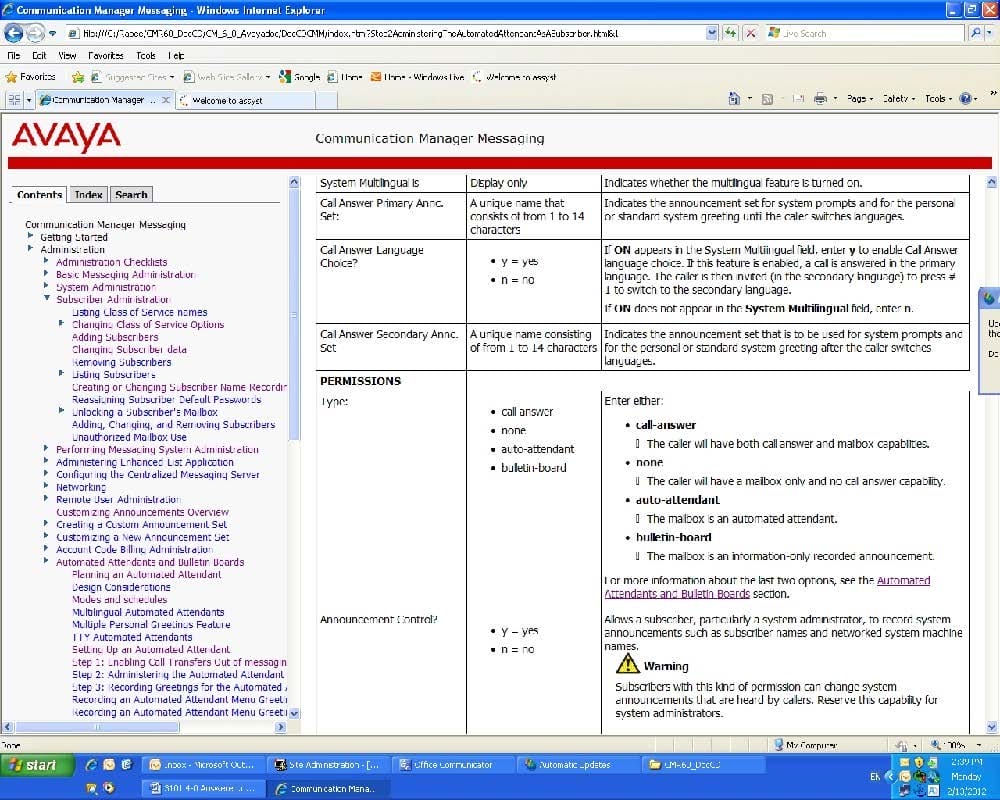

You are configuring a subscriber's mailbox and need to enable the call answer and other standard mailbox capabilities. Which type of permission should you choose to allow both capabilities?

A. None

B. Auto-attendant

C. Bulletin-board

D. Call-answer

You have administered a mailbox as an auto attendant but calls are not redirected when a presses 0 or *0.

Which option is most likely cause?

A. CALL TRANSFER OUT OP MESSAGING > Transfer Type dropdown menu > Enhanced cover 0

B. CALL TRANSFER OUT OP MESSAGING > transfer Type drop-down menu > Non

C. AUTOMATED ATTENDANT MENU> Treatment drop-down menu > call-answer.

D. AUTOMATED ATTENDANT MENU> Treatment drop-down menu

Which command would you use to determine whether an LSP is registering with Communication Manager?

A. List trace tac

B. List trace station

C. List trace ras

D. list trace media-gateway

It is 10 AM and you are responsible For maintaining a Communication Manager System. Your local electric company just Informed you that there will be a power outage between 6-10 PM tonight. At 1PM you are expected to add equipment, extensions, and mailbox for four temporary workers who are working onsite through tomorrow afternoon. Your regular CM (full) backup is scheduled for 9 PM but it does not include CMM.

What information should you save, at what Interface, and when to ensure that there are no problems tomorrow morning?

A. Save translations at the SAT at 5 PM

B. Perform full CM backup and CMM backup (all categories) at CM SMI at 5 PM.

C. Perform full CM backup from the CM SMI at 5 PM.

D. Perform full CM backup at the CM SMI immediately

E. Save translations at the SAT and perform a CMM backup at the C MM SMI at 2 PM.

Avaya Communication Manager uses Network Regions for network bandwidth efficiency and to help ensure voice quality.

Which statement describes the group for which Network Regions was designed?

A. A group of similar IP endpoints that confirm to the same Dial Plan

B. A group of similar IP endpoints using IP Media Processor (TN2302AP) or IP Media Resource 320 (TN2602AP) boards

C. A group of similar IP endpoints that share the same VoIP and signaling resources

D. A group of similar IP endpoints in the same branch location

Your company has received notice that Communication Manager (CM) update is available, and CM update also requires an update to System Platform (SP) How, and In what order, do you perform the updates?

A. leave SP at current version, and then update CM only

B. Update CM first, then update SP.

C. Update SP First and then update CM

D. Perform the updates according to the PCN/PSN.

You periodically run traffic measurement reports to monitor system performance. From the Administration/Messaging web interface Server reports menu, you select the following traffic measurements requirements: Type: Feature Cycle: Hourly Start Date: March 1 2011 Hour 8

If today is March 3 2011, what information would you expect the report to return?

A. All features traffic information for March at 8 hour intervals

B. Messaging features traffic information for March 1 Hour 8

C. Answer features traffic information for the month of March

D. All features traffic information for March 1 Hour 8

You have a problem with a system and you know that you need to view a log of captured data. However, you are unsure of what kind of information the logs on the Diagnostics > system Logs (SMI) page capture.

With reference to the exhibit, which document contains descriptions of these logs?

A. Communication Manager Alarms

B. Communication manager Procedures

C. Communication Manager server Alarms

D. Communication Manager Denial Events
