You are configuring MPLS traffic-engineering tunnels in the core. Which two ways exist for the tunnel path across the core? (Choose two.)

A. The dynamic path option is supported only with IS-IS.

B. Tunnels can be configured with dynamic path or explicitly defined path.

C. A zero bandwidth tunnel is not a valid option.

D. The bandwidth statement creates a "hard" reservation on the link.

E. Tunnel links inherit IGP metrics by default unless overridden.

Refer to the exhibit.

With which router does IOSXRV-1 have LDP session protection capability enabled but session hold up is not active?

A. 192.168.0.4

B. 192.168.0.5

C. 192.168.0.1

D. 192.168.0.3

A service provider is using multicast flows to provide streaming video content to its customers. Video streams are sometimes interrupted, and network instability is determined to be the cause. Which action should the service provider take to decrease the burden on the router resources in an unstable unicast routing environment?

A. increase the PIM hello hold timers

B. reduce the volume of query messages

C. filter unnecessary SA messages

D. tune the RPF backoff

Refer to the exhibit.

Router 1: interface gigabitethernet0/1ip address 192.168.1.1 255.255.255.0

router ospf 1network 192.168.1.0 0.0.0.255 area 1

Router 2: interface gigabitehternet0/1ip address 192.168.1.2 255.255.255.0

interface loopback 0ip address 192.168.2.1 255.255.255.0

router ospf 2network 192.168.1.2 0.0.0.0 area 2 network 192.168.2.1 0.0.0.0 area 1

Router 1 is missing the route for the router 2 loopback 0. What should the engineer change to fix the problem?

A. the area numbers on Router 1 and Router 2 to be similar

B. the wildcard mask network statement in OSPF of Router 2

C. Router 1 to be an ABR

D. the hello timers on Router 1 and Router 2 to be different

Refer to the exhibit.

AN engineer is configuring segment routing on an ISP to simplify traffic engineering and management across network domains. What should the engineer do to complete the implementation of segment routing?

A. OSPF must be configured with wide area metrics to support routing.

B. The segment will run without any further configuration.

C. Area authentication must be enable before segment routing will run.

D. Area Authentication must be enable before segment routing will run.

A network engineer is testing an automation platform that interacts with Cisco networking devices via NETCONF over SSH. In accordance with internal security requirements:

1.

NETCONF sessions are permitted only from trusted sources in the 172.16.20.0/24 subnet.

2.

CLI SSH access is permitted from any source.

Which configuration must the engineer apply on R1?

A. configure terminalhostname R1 ip domain-name mydomain.comcrypto key generate rsaip ssh version 1access-list 1 permit 172.16.20.0 0.0.0.255netconf ssh acl 1 line vty 0 4transport input sshend

B. configure terminalhostname R1 ip domain-name mydomain.comcrypto key generate rsaip ssh version 2access-list 1 permit 172.16.20.0 0.0.0.255access-list 1 permit anynetconf ssh line vty 0 4access-class 1 in transport input sshend

C. configure terminalhostname R1 ip domain-name mydomain.comcrypto key generate rsaip ssh version 1

access-list 1 permit 172.16.20.0 0.0.0.255

access-list 2 permit any

netconf ssh

line vty 0 4

access-class 2 in

transport input ssh

end

D. configure terminalhostname R1 ip domain-name mydomain.comcrypto key generate rsaip ssh version 2access-list 1 permit 172.16.20.0 0.0.0.255netconf ssh acl 1 line vty 0 4transport input sshend

Refer to the exhibit.

An engineer at ISP C is configuring a new interconnection with ISPs A and B using the BGP protocol. After the initial configuration, the engineer noticed high memory usage and an abnormally large LIB table on router R2. Which two actions must the engineer take on R2 to minimize memory usage? (Choose two.)

A. Configure the mpls ldp neighbor 11.11.11.11 labels accept 1 command.

B. Configure Standard ACL 1 with accepted prefixes.

C. Configure Extended ACL 101 with accepted prefixes.

D. Configure the mpls ldp neighbor 1.1.1.1 labels accept 101 command.

E. Configure the mpls ldp neighbor 21.21.21.21 labels accept 101 command.

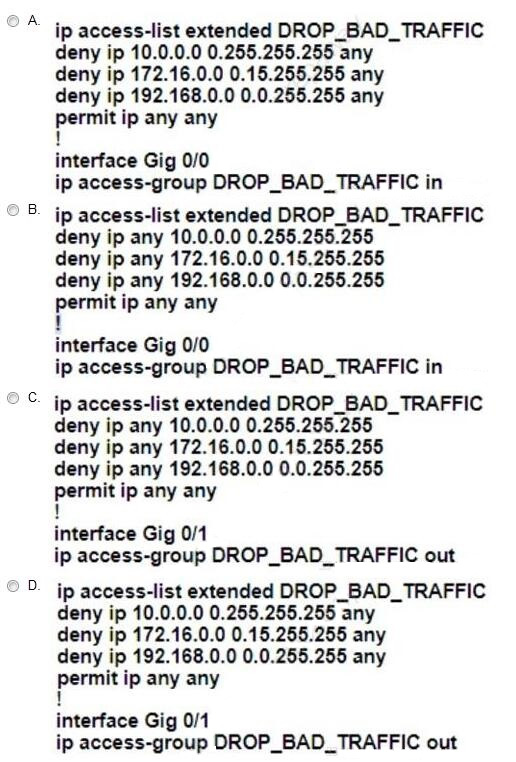

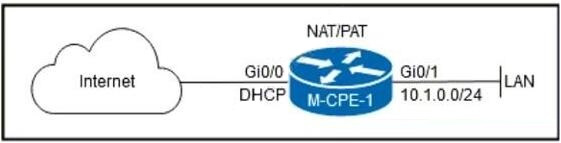

Refer to the exhibit. An engineer working for a service provider with an employee ID: 1234:56:789 notices that malicious traffic with a source IP in the RFC1918 range is arriving on the WAN connection to the internet and impacting customer resources on the LAN. Which ACL configuration must the engineer implement on M-CPE-1 to block the malicious traffic?

A. Option A

B. Option B

C. Option C

D. Option D

Which feature describes the weight parameter for BGP path selection?

A. Its value is local to the router

B. Its value is set either locally or globally.

C. Its default value is 0.

D. Its value is global to the router.

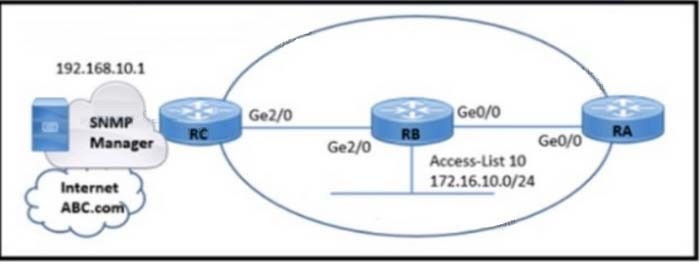

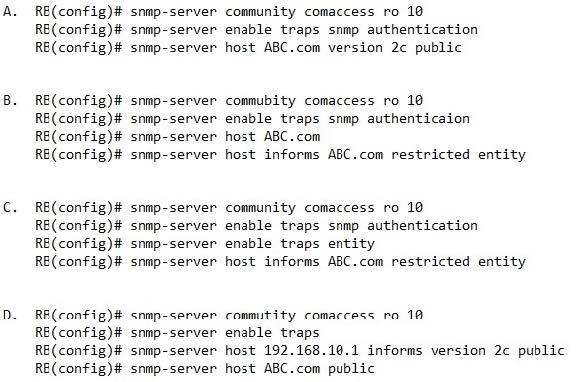

Refer to the exhibit. A network engineer is configuring an SNMP community on router RB with these requirements:

Allow read-only access for all objects to members of Access-List 10 that use the comaccess community string.

Other SNMP managers must not have access to objects. SNMP authentication failure traps must be sent to SNMPv2c and then to the host using SNMPv2c with the public community string.

Which configuration meets these requirements?

A. Option A

B. Option B

C. Option C

D. Option D
