Which OAM tool can be used to dynamically learn the MAC address of a CE device connected to a SAP within a VPLS service?

A. oam mac-populate

B. oam mac-ping

C. oam mac-trace

D. oam svc-ping

E. oam cpe-ping

Click on the exhibit below.

The following IP filter has been configured and applied to a SAP in a non-VPLS service. Which of the following statements is true?

A. An error will be generated and the configuration will not be allowed.

B. The filter entry will be ignored and traffic matching the criteria will be forwarded

C. All traffic matching entry 20 will be dropped.

D. Traffic matching entry 20 will be forwarded to sdp 100:1.

Two management VPLSs have been created. mVPLS 1 and mVPLS 2. Two user VPLS services exist. uVPLS 10 and uVPLS 20. What command can be used to determine which management VPLS is managing uVPLS 10?

A. show stp 10

B. show service vpls 1 stp

C. show service id 10 stp

D. show service id 1 stp or show service id 2 stp

Why is MAC explosion a factor to be considered when designing a large VPLS network? (Choose 2)

A. The time to relearn thousands of MAC addresses may result in excessive flooding or loss of packets.

B. If the FDB reaches the limit, the router will discard frames.

C. Discarding frames when the FDB limit is reached could deny SLA guarantees.

D. It could take several seconds to relearn thousands of MAC addresses denying QoS/SLA guarantees.

What is the DA address used for in the Ethernet Header?

A. MAC learning

B. SA filtering

C. Routing table population

D. Frame forwarding

Click on the exhibit below.

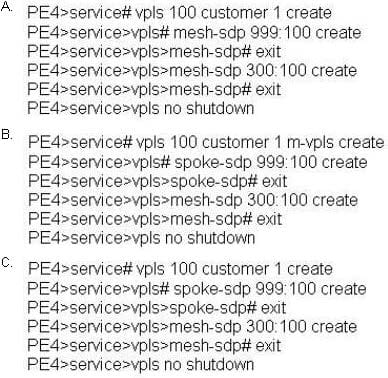

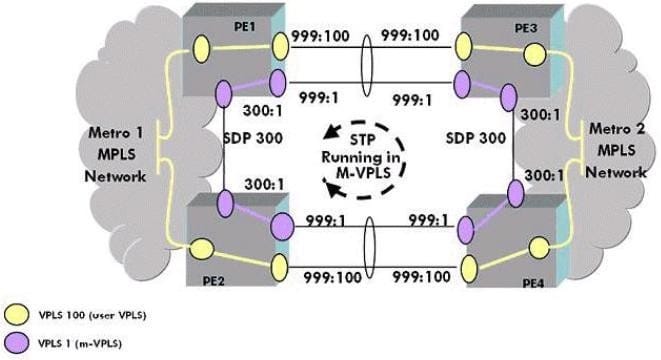

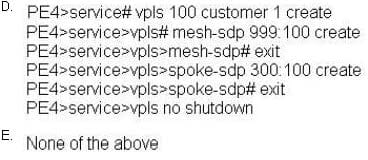

Study the network diagram. Which of the following configurations is correct for user VPLS 100 on PE4?

A. B. C.

D. E.

H-VPLS solves the data-plane and control-plane problems with the exception of one issue. What is the concern that H-VPLS does not solve?

A. Increased LSP count.

B. Number of TLDP sessions.

C. The amount of network touches.

D. FDB consumption.

E. Increased bandwidth and replication.

Click on the exhibit below.

Assume PE-B expects avian tag as part of the RFC 4762 (Martini) encapsulation. How must PE- A be configured?

A. The port that the SAP belongs to must have the correct ether type configured.

B. The SAP must be configured with the right VLAN tag.

C. The SDP VC type must be configured as type VLAN and the correct vlan-vc-tag must be specified.

D. All of the above.

Click on the exhibit below.

Which port will become the alternate port?

A. Bridge B 1/1/3

B. Bridge B 1/1/2

C. Bridge C 1/1/2

D. Bridge C 2/1/1

E. Bridge D 1/1/1

F. Bridge D 1/1/3

G. Bridge E 1/1/1

H. Bridge E 1/1/3

An MC-LAG is configured with default parameters. When a failed interface recovers, the active link reverts to the restored interface.

A. TRUE

B. FALSE
