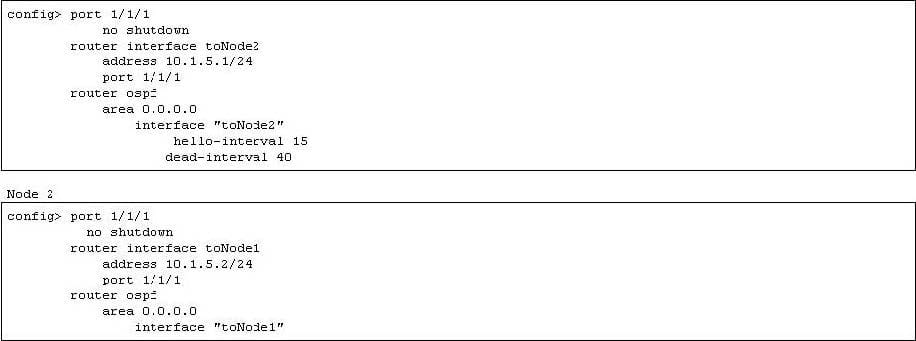

Two routers are physically connected to each other over Ethernet port 1/1/1. Review the configuration information shown below. What state should the OSPF neighbor be in?

A. INIT

B. EXCHANGE

C. EXSTART

D. FULL

E. No OSPF neighbor

Which of the following debug statements can be used to troubleshoot if the OSPF adjacency is staying at xstart state? Select two answers.

A. Debug router ospf rtm

B. Debug router ospf packet dbdescr

C. Debug router ospf neighbor

D. Debug router ospf packet hello

E. Debug router ospf spf

Two routers are physically connected to each other over Ethernet port 1/1/1. Review the configuration information below. What state should the OSPF neighbor be in?

A. INIT

B. EXCHANGE

C. EXSTART

D. FULL

E. No OSPF neighbor

Two direct connected routers are running RIPv2, neighbors are up but there is no route in the RIP database. Review the configuration information below. What is the potential problem?

A. System interface is not added to the RIP protocol

B. No import policy is configured

C. No export policy is configured

D. Split-horizon has to be disabled in RIP

E. Message-size has to be configured with a non-zero value

A CSPF LSP with no bandwidth requirement is established from Node 1 (10.10.1.1) to Node 2 (10.10.1.2). OSPF-TE is enabled on all routers in the network. What commands can be used on Node 1 to determine if another LSP can be established to Node 2 with 400M bandwidth requirement? Choose all that apply.

A. Show router lsp detail

B. Show router ospf database detail

C. Show router ospf opaque-database detail

D. Tools perform router mpls cspf to 10.10.1.2 bandwidth 400

E. Tools dump router mpls lspinfo

Due to same VPLS mis-configuration, traffic (e.g.ping) is not work between PC1 and PC 2. Choose the best explanation for the problem.

A. MTU is not configured on all sdp

B. SDP id has to match on all three nodes

C. STP has to be enabled on all three nodes

D. No SAP is configured on Node-2

E. Spoke-sdp has to be used on all three nodes

Which command is used to view alarms of all severity levels on the Alcatel 7x50?

A. Show log log-id 99

B. Show alarm

C. Show log filter-id 1

D. Show log log-id 100

E. Show log 99

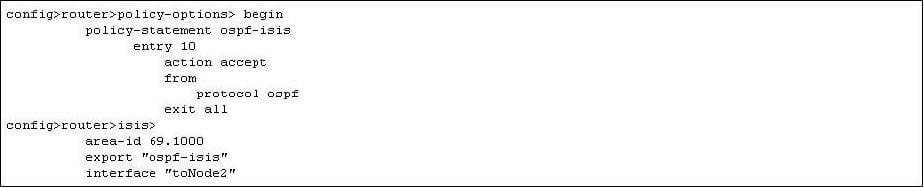

An operator has entered the following CLI commands to configured redistribution of OSPF routes into ISIS. None of the active OSPF routes are redistributed into ISIS, what is the problem in the CLI commands?

A. OSPF area has to be configured as NSSA

B. Default-action has to be configured as accept

C. Import policy has to be configured under OSPF

D. The policy is still in edit mode, therefore it will not take any effect

E. to protocol isis has to be added under entry 10

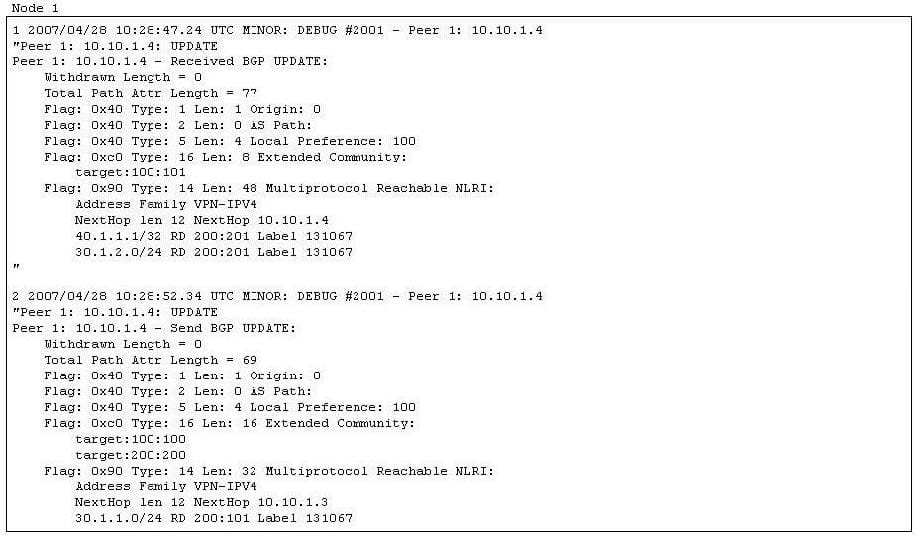

Based on the following MP-BGP update packet, what is the export route-target of peer 10.10.1.4 on Node 1?

A. 100:100

B. 100:100 and 200:200

C. 200:200

D. 100:101

E. 200:101

Refer to the diagram below, what encapsulation type and VLAN tag are required at point X for the PC to ping the IES interface?

A. qinq sap 1/1/1:6.0

B. qinq sap 1/1/1:6.*

C. dot1q sap 1/1/1:6

D. null sap 1/1/1

E. There is no way to make ping works in this case
