A static route is created using the command "static-route 2.3.4.0/24 next-hop 1.2.3.4". What is the correct traceroute command to test this static route on an Nokia 7750 SR?

A. traceroute 2.3.4.1

B. traceroute 2.3.4.0/24 next-hop 1.2.3.4

C. traceroute next-hop 1.2.3.4

D. traceroute does not work on the Nokia 7750 SR

Which of the following statements best describes the function of an OSPF Type 4 LSA?

A. A Type 4 LSA is originated by an ABR to describe a route to an ASBR to routers outside the area.

B. A Type 4 LSA is originated by an ASBR to describe a route to itself to routers outside the area.

C. A Type 4 LSA is originated by an ABR that is connected to a stub area. The LSA is injected into the backbone area to provide routing information.

D. A Type 4 LSA is originated by an ABR that is connected to a stub area. The LSA is injected into the stub area to provide routing information.

Click the exhibit.

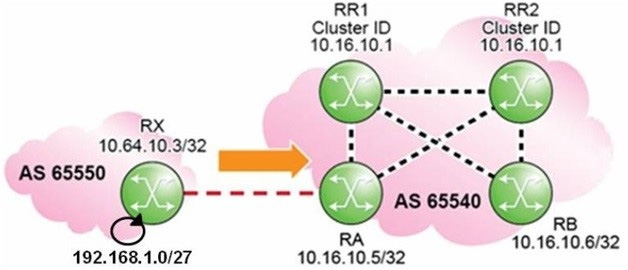

Routers RR1 and RR2 are route reflectors with the same Cluster-ID. How does router RA treat the updates for prefix 192.168.1.0/27 received from routers RR1 and RR2?

A. Router RA prefers the update received from router RR1.

B. Router RA prefers the update received from router RR2.

C. Router RA flags both updates as invalid.

D. Router RA accepts both updates and flags them as used.

A network consists of four PE routers. A customer requires a VPLS and has sites connected to each PE. The VPLS is fully meshed using IP/MPLS. How many SDPs must be configured on each PE?

A. 3

B. 4

C. 6

D. 8

How are policy direction and data flow related on the Nokia 7750 SR?

A. Import policies affect ingress data flow.

B. Export policies affect ingress data flow.

C. Both import and export policies affect ingress data flow.

D. Policy direction and data flow are independent.

Click on the exhibit.

Two LSPs traverse the path R1-R2-R3. Both LSPs are configured with facility fast reroute and link protection. When router R1 is the PLR, which router becomes the Merge Point (MP) for this LSP?

A. Router R1

B. Router R2

C. Router R3

D. Router R4

E. Router R5

Which of the following statements regarding OSPF routing updates on a multi-access network segment is true?

A. In multi-access networks, a DR and BDR are elected only if there are more than two routers connected to the network segment.

B. In multi-access networks, a DR and BDR are elected only if the subnet masks on the router interfaces are less than /30

C. In multi-access networks, a DR and BDR are elected. To ensure resiliency, both the DR and BDR send link-state advertisements describing the network.

D. In multi-access networks, a DR and BDR are elected. The DR sends link-state advertisements describing the network.

Click the exhibit button.

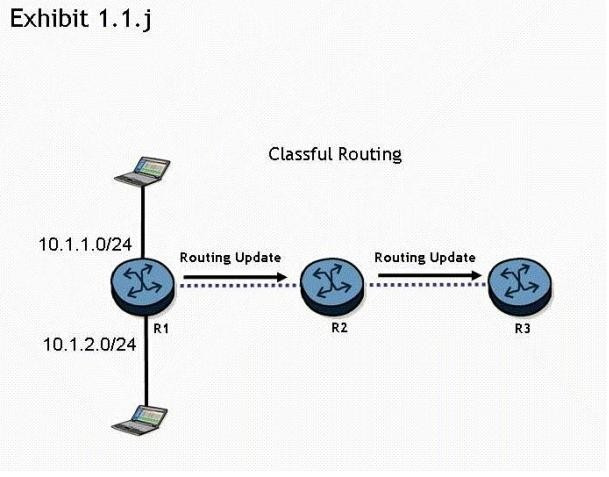

Routers R1 ,, R2, and R3 are running a classful routing protocol between them. Assuming that router R1 advertises all directly connected networks, how will these networks be represented in router R3's routing table?

A. Router R3's routing table can only contain one of the routes, which will result in route flapping.

B. Router R3's routing table will have one entry for 10.1.1.0/24 and one entry for 10.1.2.0/24.

C. The networks will be represented with one entry of 10.0.0.0/8 in router R3's routing table.

D. The networks will be represented with one entry of 10.0.0.0/24 in router R3's route table.

Click on the exhibit.

If the primary path goes down, which secondary LSP path will the head-end router select first?

A. Secondary_Path-1

B. Secondary_Path-2

C. Secondary_Path-3

D. Secondary_Path-4

What causes an adjacency to change from "Init" to "Two Way"?

A. When a Link State Update is received in response to a Link State Request

B. When a router receives a Hello packet from a neighbor that contains its router id in the neighbor list

C. When OSPF neighbors exchange Database Descriptor packets

D. When a Link State Acknowledgement is received in response to a Link State Update
