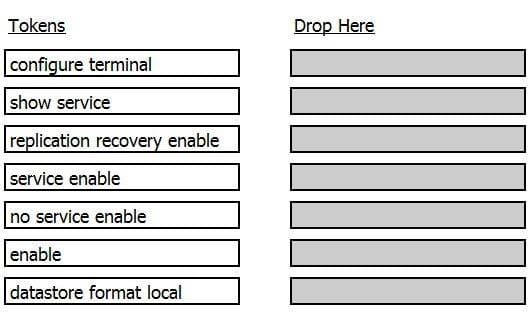

If performing a disaster recovery (DR) test, what commands and in what order do they need to be run?

Select and Place:

What are three available disk management modes for the Granite Edge? (Select 3)

A. Granite storage mode.

B. Granite standalone mode.

C. VSP standalone storage mode.

D. VSP and local LUN mode.

E. VSP and Granite storage mode.

Which block store encryption options are supported on a Granite Edge? (Select 2)

A. DES

B. SSLv3

C. AES 64

D. AES 192

E. AES 256

If implementing a virtual Whitewater appliance v210 or higher to support a greater then 2TB volume for cache, which version of ESXi and storage type should be used?

A. ESXi 4.x and VMDK volumes.

B. ESXi 4.x and spanned VMDK volumes.

C. ESXi 5.x and VMDK volumes.

D. ESXi 5.x and RAW volumes.

E. ESXi 5.x and spanned VMDK volumes.

How much additional cloud capacity (beyond the license stated amount) is granted by a license before Whitewater appliances begin to fail writes?

A. 5%

B. 10%

C. 15%

D. 20%

If Amazon Glacier is used for cloud storage, which default deduplication mode will the Whitewater appliance use?

A. Deduplicate against cloud and local contents.

B. Deduplicate against cloud contents only.

C. Deduplicate against local contents only.

If the following system log messages occur during cloud storage provider configuration on Whitewater appliance, select the actions below that can be taken to diagnose the causE. (Select 5)

Riverbed rfsd[29622]: [retry.ERR] (29625) failed request 0 of get_buckets after receiving 1032: "1032:

There was a mismatch between the signature in the request and the signature computed by the server.", status=access denied Riverbed rfsd[29622]: [replicator.ERR] (29625) Failed to list buckets : access denied Riverbed rfsd[29622]:

[rfsd.ERR] (29625) Cloud test faileD. access denied Riverbed rfsd[29622]:

[rfsd.ERR] (29625) Cloud test failed

A. Reboot the Whitewater appliance and see if the error resolves itself.

B. Restart the Whitewater appliance storage optimization service and see if the error resolves itself.

C. Verify the cloud storage provider credentials within Whitewater appliance.

D. Verify the cloud storage provider credentials outside of Whitewater appliance.

E. Take a TCP trace.

F. Check the Whitewater appliance system date/time.

A crash-consistent snapshot leaves the LUN in the same state as: (Select 2)

A. Warm boot

B. Cold reboot

C. Hard reset

D. Logout

Which are some best practices for Granite appliance implementations? (Select 4)

A. Deploy Granite Core appliance on GigE network when possible.

B. Configure jumbo frames in your network infrastructure.

C. Segregate storage traffic from management traffic.

D. Recommend mutual CHAP authentication when possible.

E. Must use separate IP addresses for primary, aux. and eth0_x ports.

Which operating system below supports Riverbed Turbo Boot?

A. Windows XP.

B. Windows 2003.

C. Windows Server 2003.

D. Windows Server 2008 r2.

E. Windows Server 2003 r2.
