Common configuration elements occur across Cisco Contact Enterprise solution components. Drag and drop the Cisco Unified ICM configuration elements on the left to the matching Cisco Unified Communications Manager and IP IVR configuration elements on the right.

Select and Place:

Select and Place:

Refer to the exhibit. In the Cisco Unified Contact Center Enterprise solution, the Cisco Unified ICM Script Editor provides a "Monitor Mode" that is useful in understanding how calls are being handled in real time. Given the screen capture, which two states describe the calls handled by this Call Routing Script? (Choose two.)

A. Thirty calls are currently in queue for the "Gold" Skill Group.

B. Three calls failed the Queue to Skill Group Node because no "Gold" agents were logged in.

C. Agents in the "Gold" Skill Group were immediately available for 20 calls.

D. Four calls remained in queue on the Cisco Unified IP IVR waiting for available agents and heard the prompts played by the "qmsg" script.

E. "CCM1_1" is the Media Routing Domain of the "Gold" Skill Group.

Refer to the exhibit. In a Cisco Unified Contact Center Enterprise deployment, call center agents report that calls drop intermittently as soon as they answer the phone.

Callers who experienced the symptoms said they did not hang up, they were disconnected by the system.

The Cisco Unified Communications Manager log files were examined during this failure, with specific items noted.

Given these symptoms and the information in the log file, what is the most likely cause of this problem?"

A. lack of Music on Hold resources in Cisco Unified Communications Manager

B. lack of Conference Bridge resources in Cisco Unified Communications Manager

C. lack of Transcoder resources in Cisco Unified Communications Manager

D. lack of trunk or port resources on Voice Gateway

Refer to the exhibit. In a Cisco Unified Contact Center Enterprise system, the call flow uses a Cisco Unified IP IVR application to collect an Account ID and PIN from the caller as shown above. In testing this call flow, the Cisco Unified ICM Call Routing Script is not receiving the digits entered by the caller. What is the most likely cause of the problem?

A. The "Set Contact Info" variable should be used before the "Set ICM Result" to set "Call.PeripheralVariable1". to "accountID" and "Call.PeripheralVariable2" to "accountPIN"

B. The "Set Enterprise Call Info" step should be used before the "Set ICM Result" step to set "Call.PeripheralVariable1" to "accountID" and "Call.PeripheralVariable2" to "accountPIN".

C. In the "Set ICM Result" the "Call.PeripheralVariable1" variable should be set to "accountID" and the "Call.PeripheralVariable2" variable should be set to "accountPIN".

D. The "Set Call Variable" step should be used before the "Set ICM Result" step to set "Call.PeripheralVariable1" to "accountID" and "Call.PeripheralVariable2" to "accountPIN".

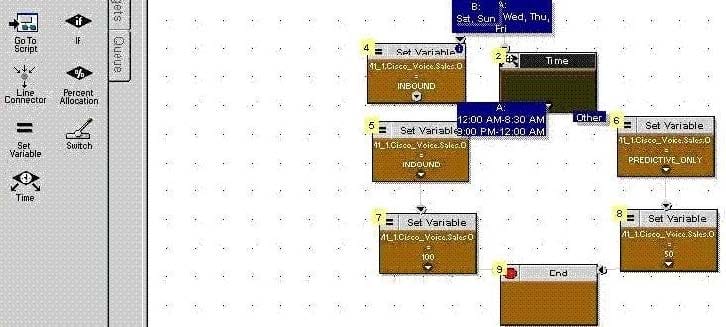

Refer to the exhibit. In a Cisco Unified Contact Center Enterprise deployment with the Outbound Option, the CCM1_Cisco_Voice_Sales skill group did not receive any outbound calls on Tuesday between 8:30 m. and 9:00 a.m.

During this time frame the campaign was scheduled to begin at 8:30 a.m. and 10 (ten) agents were logged into the skill group.

Based on the Cisco Unified ICM Admin Script that is used to control the outbound calling, what could cause the group not to get any outbound calls?

A. The Outbound Percent for the skill is set to 50%.

B. The Admin Script is invalid because the Time legs are inverted.

C. The period the Admin Script was set to run is hourly and the next time that it ran was 9:00 a.m.

D. The Outbound mode in Node 6 should be set to "BLENDED".

Refer to the exhibit. In a Cisco Unified Contact Center Enterprise deployment with agents deployed as shown in the exhibit, an agent has reported receiving CTI screen pops for calls, but then the call is not sent to the agent. What is a possible cause of this problem?

A. The agent logged in with an extension that does not exist.

B. The agent logged in using an extension that is assigned to another agent's phone.

C. The agent's phone is not associated with the PG User.

D. The agent is still logged into CTIOS on another PC.

Refer to the exhibit. In a Cisco Unified Contact Center Enterprise system, callers have reported that their calls are dropping intermittently without hearing any greetings or queue music. At times they are able to hear Cisco Unified IP IVR

prompts but are then dropped before connecting to an agent.

The Cisco Unified Communications Manager is configured as follows for this deployment:

All CTI Route Points that make requests to Cisco Unified ICM have names that start with "IPCC."

All CTI Route Points used for Cisco Unified ICM Translation Routing to the Cisco Unified IP IVR are named starting with "Trans."

All CTI Ports used by the Cisco Unified IP IVR are named starting with "CTI."

All Agent Phones are named starting with "SEP."

There is concern about how these devices are associated in the Cisco Unified Communications Manager configuration. The device associations for the PGuser and IVRuser are shown in the exhibit.

Given the problem and the current device associations, what two things might be causing these call failures? (Choose two.)

A. "Enable CTI Application Use" is not checked on the PGuser and IVRuser configurationoptions

B. The Peripheral Gateway and Cisco Unified IP IVR do not use the PGuser nor IVRuser Cisco Unified Communications Manager user accounts

C. CTI_1300 and TransRtPT3 should not be associated with the PGuser Cisco Unified Communications Manager user account

D. All devices should be associated with both the PGuser and IVRuser Cisco Unified Communications Manager user accounts

E. The Agent IP Phone 3001 should not be associated with the IVRuser Cisco Unified Communications Manager user account

F. The problem is not with the configuration. The Cisco Unified Communications Manager database subscription is broken on subscribers

When troubleshooting calls that are dropping in the Cisco IP IVR in the Cisco Unified Contact Center Enterprise solution, which log file settings would be useful? Select the three best options for tracing from the AppAdmin > System > Tracing menu. (Choose three.)

A. Trace Configuration > CRS Engine > SUBSYSTEMS turn on these MIVR trace Debug levels SS_TEL and SS_ICM

B. Trace Configuration > CRS Engine > SUBSYSTEMS turn on these MIVR trace Debug levels SS_TEL and SS_JTAPI and SS_ICM

C. Trace Configuration > CRS Engine > SUBSYSTEMS Under MISCELLANEOUS, turn on this MIVR trace Debug level for ENG

D. Trace Configuration > CRS Engine > SUBSYSTEMS Under LIBRARIES, turn on this MIVR trace Debug level for LIB_ICM

E. Trace Configuration > CRS Engine > SUBSYSTEMS Under LIBRARIES, turn on this MIVR trace Debug level for LIB_JTAPI

Refer to the exhibit. The Cisco Unified Communications Manager Peripheral Gateway is unable to connect and activate the link to Cisco Unified Communications Manager. Review the log file from the Cisco Unified Communications Manager JTAPI Gateway. What are two possible causes of this failure to connect? (Choose two.)

A. The Cisco Unified Communications Manager is not reachable on the network.

B. The JTAPI Gateway's configuration of the Cisco Unified Communications Manager Publisher IP Address is invalid.

C. The JTAPI Gateway's configuration of the JTAPI User ID (ccm1pguserX) does not match with the Cisco Unified Communications Manager's preconfigured ID.

D. The JTAPI Gateway version is not compatible with the Cisco Unified Communications Manager version and needs to be downloaded again from the Plug-in page in Cisco Unified Communications Manager.

E. The Cisco Unified Communications Manager's CTI Manager service is not enabled.

F. The JTAPI Gateway's configuration of the JTAPI User Password does not match the Cisco Unified Communications Manager's preconfigured password.

In the Cisco Unified Contact Center Enterprise solution, which command should be entered at the command prompt to invoke the Cisco Unified ICM Support Tools command-line version of the "Log Collection Utility" in interactive mode?

A. lct

B. lcutil

C. lcutility

D. lctool

E. supporttoolslogcollection
