Correct Answer: D

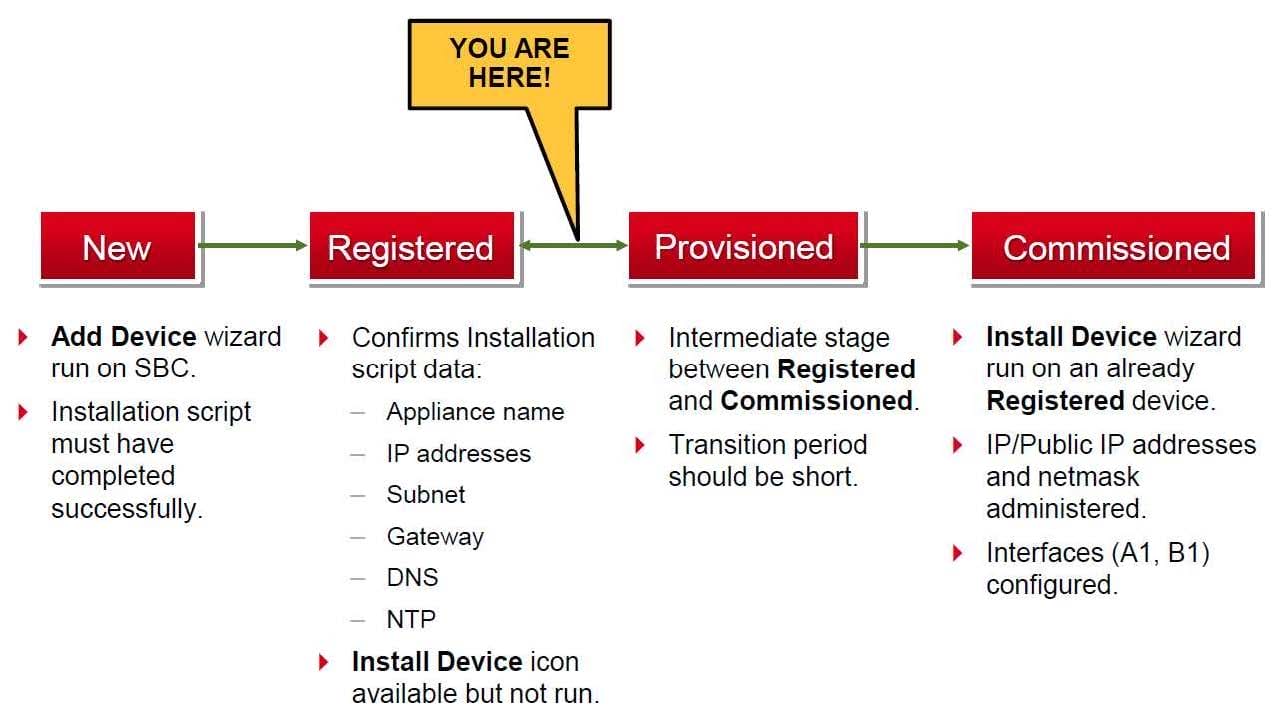

The interface might need to be enabled.

2. Click on the Interface Configuration tab.

3. Click the Toggle link for both the A1 and the B1 interfaces. The Administrative Status for both A1 and B1 changes to Enabled References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 204

Correct Answer: BCD

The AXC connector is always co-resident with the Avaya message store.

References: Administering Avaya Aura Messaging Release 6.2, Issue 2.2 (December 2013) https:// downloads.avaya.com/css/P8/documents/100172127

Correct Answer: B

Dedicated AxC/Directory server: A physical server that manages notification capabilities and the LDAP database and provides communications between application servers and the thirdparty storage server. This server also stores user properties and name and greeting recordings. Not all configurations require a dedicated AxC/Directory server because the AxC/Directory role runs on the Avaya-provided message store. You only need a dedicated AxC/Directory server for: References: Avaya Aura Messaging Overview and Specification, Release 6.3.2 (January 2015) , page https://downloads.avaya.com/css/P8/documents/101004642

Correct Answer: C

Routing policies describe the conditions under which Session Manager will route calls between Communication Manager and Avaya Aura Messaging. References: Application Notes for Configuring Avaya Aura Messaging 6.1 as a Voice Messaging Solution for Avaya Aura Communication Manager 6.0.1 Featureand; Evolution Server Using SIP Trunks and Avaya Aura Session Manager 6.1 璉ssue 1.0, page 25 https://www.devconnectprogram.com/fileMedia/ download/08ad7375-7c2e-4767-929f- 15f4e8130a0d

Correct Answer: B

Enabling AE Services refers to administering the transport link between Communication Manager and AE Services. Procedure

1.

Type change ip-services. Communication Manager displays the IP SERVICES form

2.

Complete Page 1 of the IP SERVICES form

3.

Complete Page 3 of the IP SERVICES form as follows. a. In the AE Services Server field, type the name of the AE Services server b. In the Password field, create a password. This is the password that the AE Services administrator must set on the AE Server (Communication Manager Interface > Switch Connections > Edit Connection > Switch Password). The passwords must exactly match on both Communication Manager and the AE Services server. References: Avaya Aura Application Enablement Services Administration and Maintenance Guide, Release 6.3 (June 2014) , page 26 https://downloads.avaya.com/css/P8/documents/100171737

Correct Answer: ABD

*

One of the primary differentiating features for the WebRTC Snap-in is that the web application handles authentication and authorization of calls. This includes the capability to assert a calling user's phone number and restrict the numbers that can be called.

*

The Avaya SBCE enables secure firewall traversal for HTTP and SRTP packets, facilitates sending DTLS to provide secured key exchange for the SRTP flow, and takes care of all security requirements mentioned in the TURN protocol for the solution.

*

WebRTC can be a game changer for enterprise communications and customer engagement. Enterprises can now add real-time communications to any website. References: Avaya WebRTC Snap-in Reference,

Release 3.1 (May 2016), page 9 https://downloads.avaya.com/css/P8/documents/101013939

Correct Answer: B

A cluster profile is a pre-loaded template that contains cluster attributes. The Core Platform cluster profile: A closed cluster that supports up to 10 Avaya Breeze servers.

Correct Answer: B

The Avaya Media Server can translate WebRTC media into a SIP media stream. References: http:// www.avaya.com/blogs/archives/2014/10/an-introduction-to-the-avaya-webrtc- snap-in.html

Correct Answer: B

Cross-origin resource sharing (CORS) is a mechanism that allows restricted resources (e.g. fonts) on a web page to be requested from another domain outside the domain from which the first resource was served. A web page may freely embed cross-origin images, stylesheets, scripts, iframes, and videos. Note on the History of CORS: Cross-origin support was originally proposed by Matt Oshry, Brad Porter, and Michael Bodell of Tellme Networks in March 2004 for inclusion in VoiceXML 2.1 to allow safe cross-origin data requests by VoiceXML browsers. In May 2006 the first W3C Working Draft was submitted. In March 2009 the draft was renamed to "Cross-Origin Resource Sharing" and in January 2014 it was accepted as a W3C Recommendation. References: https://en.wikipedia.org/wiki/Cross-origin_resource_sharing

Correct Answer: A

Administering an Avaya Breeze instance Before you begin To complete this task you will need:

*

The IP address of the Avaya Breeze Management Network Interface. This is the same IP address you

used when deploying the Virtual Machine (VM).

*

The IP address including the network mask, and default gateway for the Avaya Breeze Security Module.

Procedure (see step 6 below)

1.

On System Manager, in Elements, click Avaya Breeze.

2.

Click Server Administration.

3.

In the Avaya Breeze Server Instances list, click New.

4.

In the SIP Entity field, select the SIP Entity that you created.

5.

Ensure that the value in the UCID Network Node ID field is unique across the solution deployment so

that it does not conflict with other UCID-generating entities like Avaya Aura Communication Manager or

Avaya Aura

Experience Portal.

6.

In the Management Network Interface FQDN or IP Address field, type the IP address of the Avaya

Breeze Management Network Interface.

References: Deploying Avaya Breeze, Release 3.1, (September 2016), page 47 https://

downloads.avaya.com/css/P8/documents/101014426
