An IP (AST) user 1011111 and H.323 user 1011711 share a common Communication Manager (Evolution) server. Given the following actions:

CM will negotiate the codec for the H.323 endpoint based on CM configuration.

Session Manager verifies SIP user 1011111 in the registry and authenticates it. After authenticating the SIP user, Session Manager checks the SIP user's profile for sequence applications and routes the request to Communication Manager.

Communication Manager performs feature processing and terminates the call to the H.323 endpoint. If SIP user 1011111 calls H.323 user 1011711, in which order will these actions take place?

A. 4, 2, 1, 3

B. 4, 3, 2, 1

C. 4, 2, 3, 1

D. 3, 4, 2, 1

E. 2, 4, 1, 3

Which command can be used to investigate PPM issues in Avaya Aura Communication Manager?

A. list trace station

B. traceSM

C. list trace tac

D. SIP tracer_asset log

E. status ppm

You are preparing to enable EASG to provide Avaya Services local and remote access for performing support and system optimization.

What are the three methods to enable EASG during the implementation? (Choose three.)

A. During the OVA deployment

B. Using the CLI command EASGManage after deployment

C. Open a ticket to Avaya services and request to enable it

D. Using SMGR web GUI, check the "Enable EASG" check box on the desired component in the Inventory/Manage Elements screen

E. Using the SDM after the deployment

F. Using SSH to access Avaya servers

Which screen in the Avaya Aura Media Server will display the Media Server service status and Operational State?

A. Server Status

B. Cluster Status

C. Element Status

D. Monitoring

E. System Manager Dashboard

What happens if Session Manager cannot find a matching SIP Communication Profile for a user in its SIP registry when that user tries to make a SIP call?

A. The call is sent to Communication Manager to check if the number dialed exists in CM's call routing tables.

B. The caller receives a busy tone.

C. Network Routing Policy (NRP) is consulted for further routing instructions.

D. The call is routed to voicemail to check if the extension is associated with a mailbox.

E. Session Manager attempts to create a new SIP Communication Profile for the user.

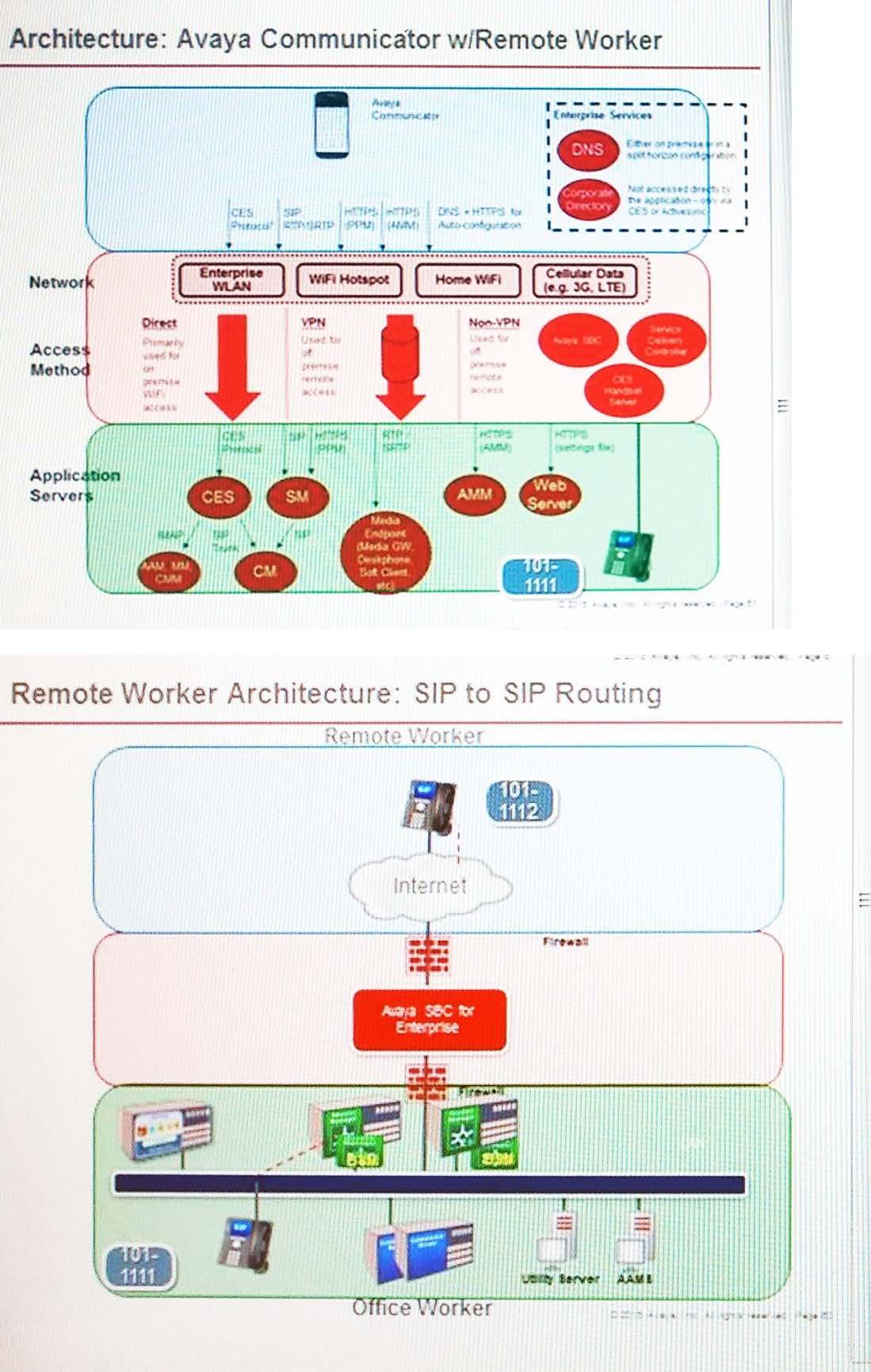

Refer to the Exhibits.

What is the main difference between the SIP call flow made from an Avaya Communicator Remote Worker and the call flow made from a 96X1 telephone Remote Worker?

A. The 96X1 telephone Remote Worker requires registration to Avaya Aura Session Manager.

B. Avaya Aura Communication Manager processes full call model for the SIP-to- Communicator call flow.

C. The Communicator registers to Avaya Session Border Controller for Enterprise (SBCE).

D. Avaya Aura Communication Manager processes half-call model for the SIP-to-SIP call flow.

Avaya Aura System Manager (SMGR) holds a copy of the Avaya Aura Communication Manager (CM) database, and it is important that the database is kept identical in both SMGR and CM.

If they ever stop being synchronized, what should be done to get them synchronized again?

A. Go to the Inventory > Synchronize > Communication System, and send the database from SMGR to CM.

B. Issue a save translations all command in CM.

C. Go to the Replication page and issue a Repair of the database on SMGR.

D. Go to the Inventory > Synchronize > Communication System, and synchronize the database from CM to SMGR.

E. Use the command 'sync database' on both CM and SMGR to synchronize the databases.

What are three purposes of the Shared Bandwidth Management feature introduced in Avaya Aura R7.l? (Choose three.)

A. Protect the quality of existing connections by allowing oversubscription

B. Provide more DSP resources to the Remote Workers

C. Better determination of bandwidth usage at any location

D. Protect the quality of existing connections by preventing oversubscription

E. Prevent the use of compressed Codecs during video call

F. Dynamically adjust the available bandwidth based on network conditions

What documents are expected to be filled out by customers/partners before contacting support in Avaya's Diagnostic Methodology program?

A. Problem Clarification

B. Cause

C. Knowledge Management

D. Details/Findings

E. Problem Statement

F. Troubleshooting steps taken

What are two functions performed by System Manager in Avaya Aura

A. It delivers a set of shared management services and a common console.

B. It establishes direct media for Direct IP-IP Audio Connections and h.323 two-party calls.

C. It provides SIP registration and authentication.

D. It enables SIP-SIP two-party calls to use direct media with 'Initial IP-IP Direct Media' enabled.

E. It provides centralized management of enterprise-wide dial plans.

F. None of the above
