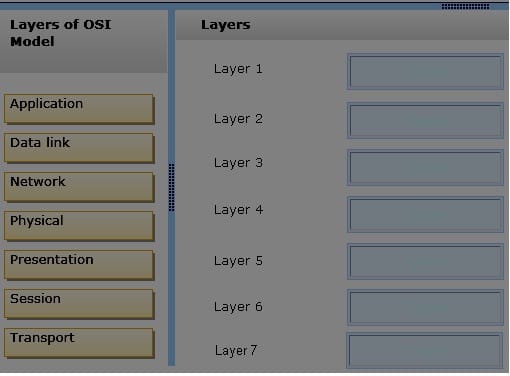

Order the layers of the OSI model:

Select and Place:

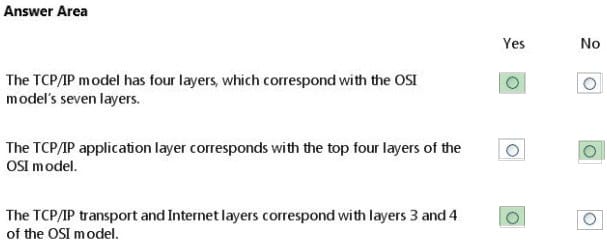

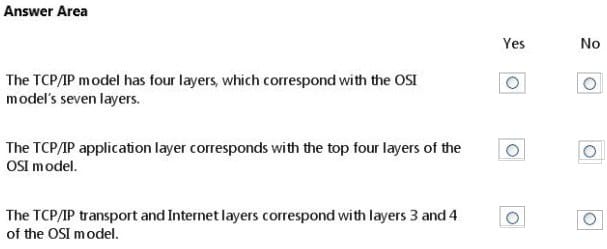

For each of the following statements, select Yes if the statement is true. Otherwise, select No. Each correct selection is worth one point.

Hot Area:

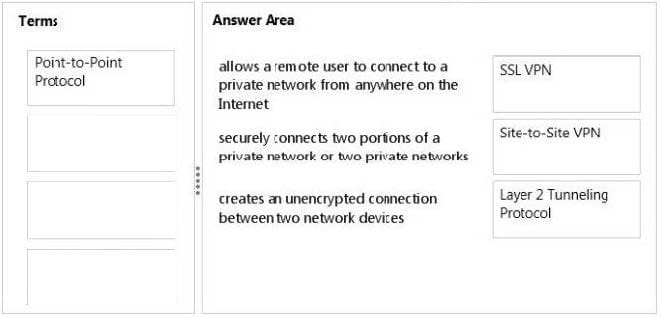

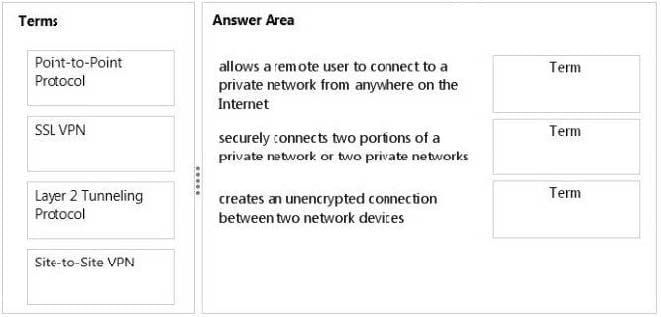

Match the VPN connection type to the corresponding definition.

To answer, drag the appropriate VPN term from the column on the left to its definition on the right. Each term may be used once, more than once, or not at all. Each correct match is worth one point.

Select and Place:

The maximum throughput of an 802.llg network is:

A. 2.4 GHz.

B. 54 GHz.

C. 2.4 Mbps

D. 54 Mbps.

One purpose of a perimeter network is to:

A. Make resources available to the intranet.

B. Link campus area networks (CANs).

C. Link local area networks (LANs).

D. Make resources available to the Internet.

Which protocol can be used to encrypt packets on the Internet?

A. SNMP

B. HTTPS

C. TFTP

D. HTTP

Tracert is used to:

A. Manage routing tables dynamically.

B. Manage session-oriented connections between nodes.

C. Report the route taken by packets across an IP network.

D. Report the shortest route between different networks.

What type of record does DNS use to find a mail service?

A. Service (SRV) DNS record

B. Canonical (CNAME) DNS record

C. Mail Exchanger (MX) DNS record

D. Host (A) DNS record

This question requires that you evaluate the underlined text to determine if it is correct.

Each IPv4 address consists of a "MAC address and data-link laver address".

Select the correct answer if the underlined text does not make the statement correct. Select "No change is needed" if the underlined text makes the statement correct.

A. Network ID and a host ID

B. DNS record and a default route

C. 64-bit binary number divided into octets

D. No change is needed

This question requires that you evaluate the underlined text to determine if it is correct.

The 802.11n wireless standard specifies a maximum data rate of 54 Mbps.

Review the underlined text. If it makes the statement correct, select "No change is needed." If the statement is incorrect, select the answer choice that makes the statement correct.

A. 10 Mbps

B. 11-128 Mbps

C. 300-600 Mbps

D. No change is needed
