You are planning to add a new DAE to a VNX storage system. Doing so will exceed the supported total drive count by four drives. What impact will this have on the operation of the VNX system?

A. The DAE will be recognized but four drive slots will not function.

B. All slots on the DAE will be available for use.

C. Connecting the new DAE will take the bus offline.

D. The DAE can be physically connected, but will not be available.

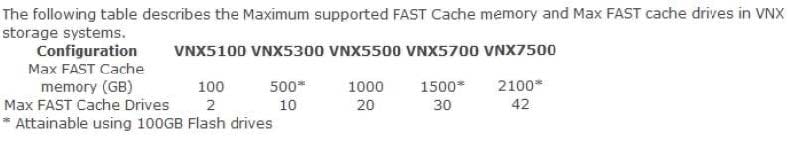

How much FAST Cache storage can be allocated as cache?

A. 500 GB

B. 1TB

C. 2TB

D. 4TB

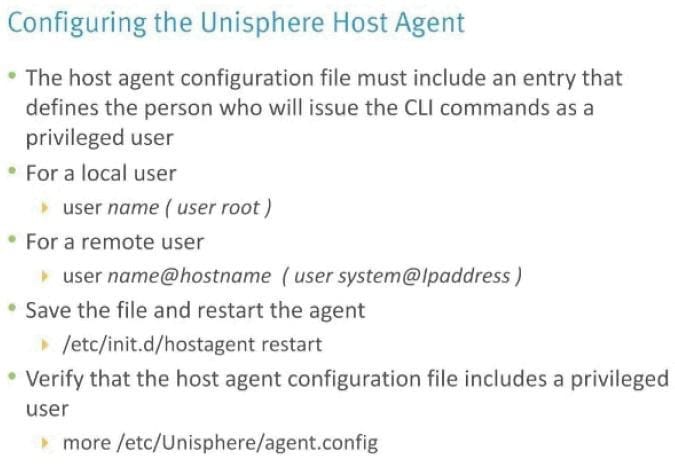

What is the location of the host agent configuration file on a Linux host?

A. /etc/Unisphere/bin/agent config

B. /sbin/Unisphere/agent.config

C. /etc/init.d/agent.config

D. /etc/Unisphere/agent.config

You are using the USM install Disk Array Enclosure wizard to add a DAE enclosure to a VNX system. What is the maximum number and type of DAE enclosure that the system can have?

A. A combination of eight 2U 25-drive DAE5S enclosures and 3U 15-drive DAE6S enclosures

B. It is based on the maximum number of drives

C. Six 2U 25-drive DAE5S enclosures

D. Eight 3U 15-drive DAE6S enclosures

In order to connect to a VNX series array, you are tasked with implementing a CNA adapter on a ESX host. What is the minimum supported ESX version required for this type of adapter?

A. 3.5 U4

B. 3.5

C. 4.0

D. 4.1

Where in Unisphere is FAST Cache configured?

A. In Storage Pool Properties

B. In Storage System Properties

C. In RAID Group Properties

D. In Storage Hardware Properties

How many storage groups can a host belong to in an array?

A. 2

B. 4

C. 6

D. 1

A Storage Administrator created several new LUNs for an existing SAN attached Linux host. Some of the new LUNs are owned by SPA and some are owned by SPB. Linux can only see some of the new LUNs. Which troubleshooting step should be completed next?

A. Check the EMC Host Connectivity Guide for Linux to verify the maximum number of LUNs visible to the host

B. Check the zoning to verify that all HBAs can see all of the ports on each Storage Processor

C. Check the agent.config file on the host to verify the maximum number of LUNs the host can manage

D. Check the LUN ownership of each LUN to make sure none are trespassed

A VNX file system has auto_extend enabled. If the file system size is greater than the extend_size value, what will happen when the file system reaches its high water mark (HWM)?

A. File system is extended by 5% of its size

B. File system is extended until it is 10% over the HWM

C. File system is extended by 3% of its size

D. File system is extended by its size

A storage administrator is creating a file system on a VNX system through AVM. What is the maximum number of NL-SAS-based dvols that can be striped together in a storage pool?

A. 2

B. 4

C. 5

D. 8
