What is the maximum amount of cache that can be configured in a Symmetrix VMAX 20K?

A. 128 GB / engine 1 TB / array

B. 128 GB / engine 512 / array

C. 256 GB / engine 1 TB / array

D. 256 GB / engine 2 TB / array

What is the maximum number of drives that can be configured in a Symmetrix VMAX 10K (959)/VMAXe with Standard DAE configuration?

A. 3200

B. 2400

C. 1560

D. 1080

Which set of interface types support hardware compression on VMAX 40K?

A. 10 GigE and FC

B. FC and FCoE

C. FCoE and 10 GigE

D. 1 GigE and FCoE

You are installing a VMAX 40K with dispersed System Bay.

Which length cables are required to provide back-to-back separation?

A. 25M

B. 10M

C. 3.6M

D. 20M

A CE is dispatched to perform an FCO replacing multiple SPS. After logging into a Symmetrix VMAX 40K

running Enginuity 5876.159.102 Simplified SymmWin is automatically launched.

How should the CE proceed?

A. Close Simplified SymmWin and select SymmWin from the desktop, then select Procedure Wizard

B. Close Simplified SymmWin and select SymmWin from the desktop, then select Replace Bad FRU

C. Log off then log on using a Break Fix Credential

D. Simplified SymmWin does not support VMAX 40K

What is the default folder where SymmWin 5876 is installed?

A. C:\SymmWin

B. C:\Program files\EMC\SymmWin\5876

C. C:\SymmWin\5876

D. C:\Program files\EMC\SymmWin

You are reviewing a VMAX configuration and find 4 Diskless devices. Which type of Symmetrix VMAX feature is configured?

A. Cascaded

B. Auto-Provsioning

C. Virtual-Provisioning

D. SNAP

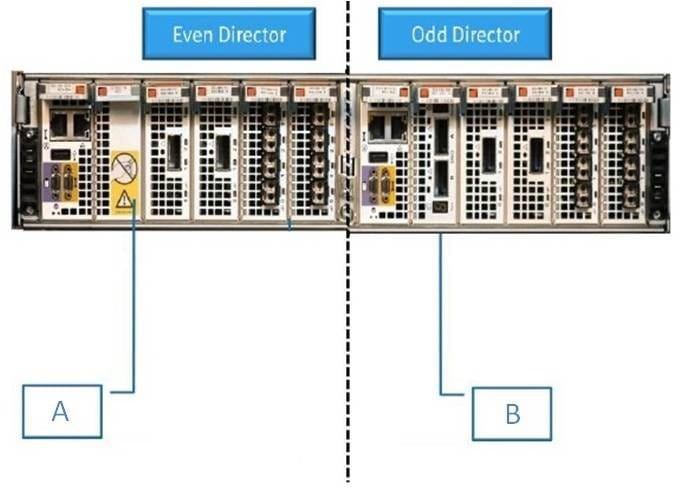

Refer to the Exhibit.

What is the VMAX 10K component illustrated as 'B'?

A. SIB

B. Filler

C. BE I/O

D. FE I/O

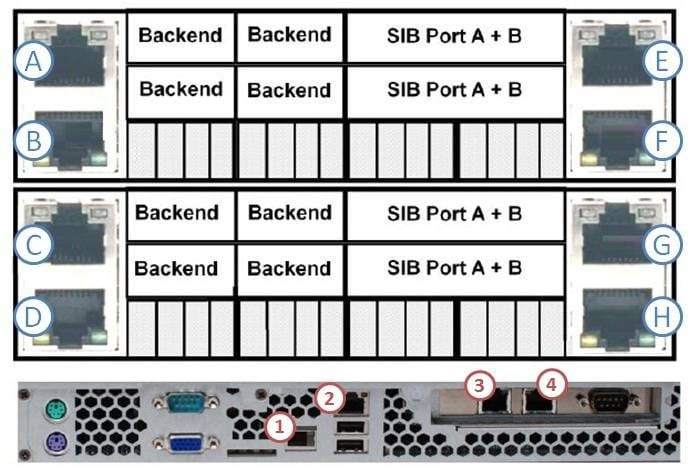

Refer to the Exhibit.

While configuring a Multi-Engine VMAX 20K, the CE is connecting Engine numbers 4 and 5 with cables. What is the type and sequence of connections required to connect the Highest Engine number?

A. Purple Cable; connects B to C and A to 1

B. Green Cable; connects B to C and A to 1

C. Purple Cable; connects B to C and D to 1

D. Green Cable; connects B to C and D to 1

Refer to the exhibit.

A customer would like to have dynamic SRDF target volumes which cannot be swapped. From the illustration shown, what would you select?

A. DR2

B. DRX

C. R2

D. DR1
