You are an EMC service provider and want to install the ESRS IP client solution. The workstation on which you want to install this software is on a network with a proxy server. What information must you provide in order to be able to install the solution?

A. You must provide your proxy server IP address and the array IP address.

B. Service partners are not allowed to install the ESRS IP client at a customer site.

C. You must provide your Powerlink SecurID credentials and the proxy configuration.

D. You must provide the array serial number and the proxy configuration.

When installing a VNX gateway in the Auto-Config mode, which step is optional?

A. Create system RAID groups and LUNs for VNX File

B. Configure fibre switch zoning for Data Movers

C. Set up the Data Mover initiator records

D. Set up VNX Block storage groups

When using VNX Installation Assistant to register a VNX system, which three methods can you use to transmit the registration and configuration package to EMC?

A. Automatic upload, manual upload utility, default email client

B. Automatic upload, default email client, Powerlink upload page

C. Manual upload utility, Powerlink upload page, SPcollect

D. Automatic upload, SPcollect, default email client

You are onsite for a DAE and drive upgrade for a VNX 7600 array. After inspecting SP Collects from the array you notice that the VNX has the following active configuration:

1 x 2.5" DPE

36 x 2.5" DAE's

919 total drives

914 bound data and hotspare drives

6 empty slots

How many additional 2.5" DAEs and drives can the array support?

A. 3 x 2.5" DAEs, 81 drives

B. 3 x 2.5" DAEs, 86 drives

C. 6 x 2.5" DAEs, 81 drives

D. 6 x 2.5" DAEs, 86 drives

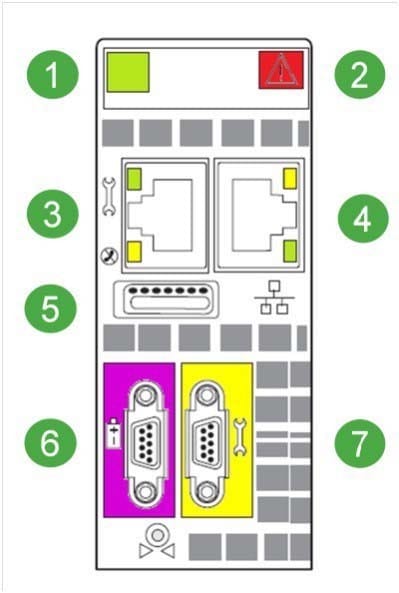

Refer to the exhibit.

Which port is used to observe Power Up on the VNX8000?

A. 7

B. 6

C. 4

D. 3

You are collecting logs from a VNX Control Station. What is a function of the following command?

$ /nas/tools/automaticcollection -getlogs

A. Gathers support materials

B. Runs the transfer script for dumps

C. Runs the transfer script for logs

D. Checks the state of the transfer script

You are auditing active software enablers and currently installed software packages on a VNX with MCx array. Which command will assist in this task?

A. naviseccli h ndu -list

B. naviseccli h managefiles

C. navicli h cache sp info

D. naviseccli h spcollect set

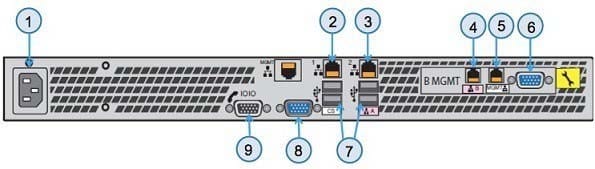

Refer to the exhibit.

Which number indicates the connection to the service serial port on the rear of the Control Station for VNX with MCx?

A. 6

B. 2

C. 8

D. 9

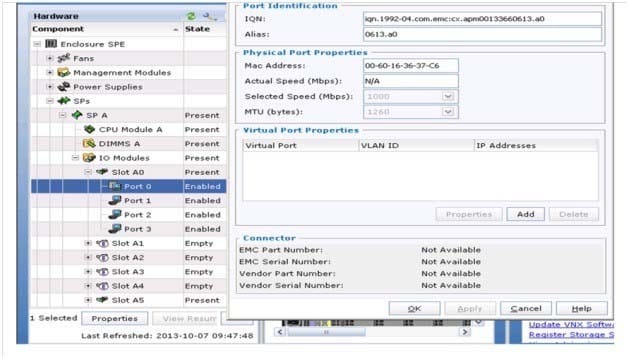

Refer to the exhibit.

From the highlighted information in the picture, which type of I/O module is represented?

A. 4 port 1G Base T iSCSI

B. 4 port 8G FC

C. 4 port 8Gb copper ethernet

D. 4 port FCoE

Refer to the exhibit.

What is a function of the IPv6 Common Parameters configuration type?

A. Disables IPv6 addressing on the SPs

B. Enables configuration of IPv6 in Unisphere

C. Disables the reminder to reboot after the configuration is done

D. Enables IPv4 addressing on the SPs
