What CLI command will accomplish the selection of the secondary software image the next time the switch is rebooted?

Which of the following CLI commands would you use to enable ECMP for RIP?

A. enable rip route sharing

B. enable route sharing rip

C. enable iproute sharing

D. None of these, ecmp is not supported by RIP

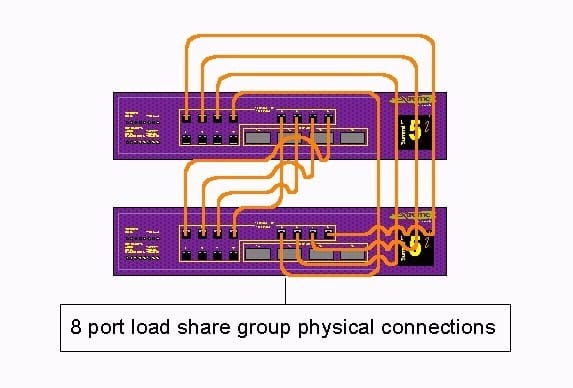

You have been assigned the task of configuring an 8-port load share group between two switches that use the address-based algorithm. Which of the following commands will provide you with the desired result?

A. Summit #1: enable sharing 1 grouping 1-8 algorithm address-basedSummit #2: enable sharing 8 grouping 1-8 algorithm address-based

B. Summit #1: enable sharing 1 grouping 1-8 algorithm address-basedSummit #2: enable sharing 1 grouping 1-8 algorithm address-based

C. Summit #1: enable sharing 1 grouping 1-8 address-based algorithmSummit #2: enable sharing 1 grouping 1-8 address-based algorithm

D. None of the above.

The ExtremeWare feature VLAN aggregation allows multiple sub-VLANs to share a single IP subnet.

A. TRUE

B. FALSE

Link aggregation is supported on a Summit 1i and the following load sharing algorithm is recommended by Extreme Networks.

A. port-based

B. address-based

C. round-robin

D. None of the above, link aggregation is not supported

The Summit5i provides a total of 16 user ports from which 12 are either 100/1000 Ethernet (RJ-45) or 1000 Ethernet (MT-RJ) and the last 4 are unpopulated GBIC-based 1000BASE-X ports.

A. TRUE

B. FALSE

What is a CP SYN?request?

A. A request from a TCP client to synchronize an FTP session

B. A request from a TCP station to establish a TCP session to another station

C. A request from a TCP server to re-send telnet data

D. TCP client to server keep-alive

ExtremeWare does not support the exterior gateway protocol ?BGP4 in any of the Extreme Networks switch products.

A. TRUE

B. FALSE

What is the well-known port number for Telnet?

A. 25

B. 110

C. 22

D. 23

The default settings for the console port of an ?chipset switch are: 9600 bps/8 data-bits/one stop-bit/no parity/software flow control

A. TRUE

B. FALSE
