Correct Answer: Check the answer in explanation.

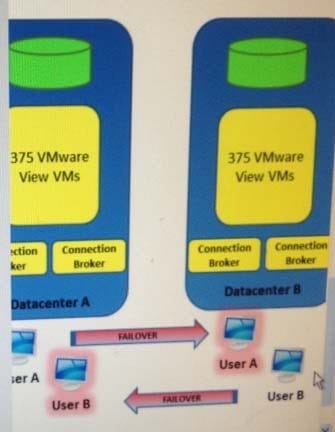

User A in DataCenter A (375 VmWare) transfer to DataCenter B User B in DataCenter B (375 VmWare) transfer to DataCenter A Not replication between DataCenter A and DataCenter B

Correct Answer: AC

Objective: Sought a reliable, secure and scalable high-performance platform to deliver managed cloud services, accelerate time-to-market and support rapid growth. Reduces hardware provisioning times three- fold, accelerating time-tomarket. http://h20195.www2.hp.com/v2/GetPDF.aspx%2F4AA4-6104EEW.pdf

In commerce, time to market (TTM) is the length of time it takes from a product being conceived until its being available for sale. TTM is important in industries where products are outmoded quickly. A common assumption is that TTM matters most for first-of-a-kind products, but actually the leader often has the luxury of time, while the clock is clearly running for the followers.

Correct Answer: B

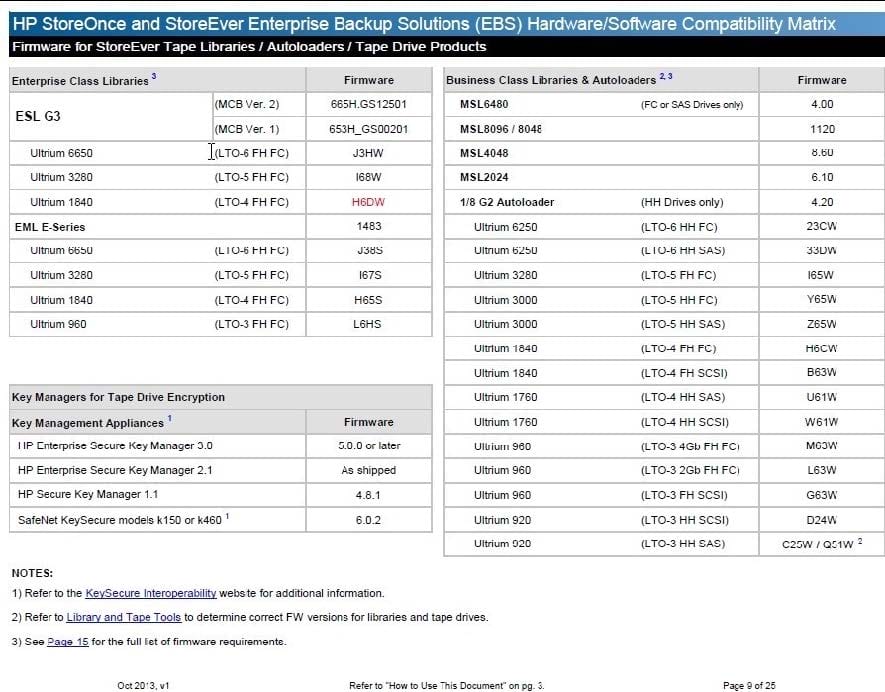

Models HP Secure Key Manager Models HP Secure Key Manager, ESL/EML tape libraries and Encryption SAN Switches are purchased separately from Secure Key Manager. http://h20564.www2.hp.com/portal/site/hpsc/public/kb/docDisplay/?docId=c04007622

To greatly enhance data privacy, HP EML Tape Libraries are available with LTO-6 Ultrium 6650, LTO-5 Ultrium 3280 and LTO-4 Ultrium 1840 hardware encrypting tape drives for secure high performance backups meeting consortium specifications.. HP Data Protector Software can enable the drive encryption and provide basic key management capabilities. Additional information regarding ISV's supporting hardware encryption is available on the HP Enterprise Backup Solutions (EBS) website at: www.hp.com/ go/ebs. The encryption on LTO-6, LTO-5 and LTO-4 media occurs with or without compression, and without speed or capacity penalties. Hardware encryption is not supported on LTO-2 and LTO-3 tapes.

LTO-6, LTO-5 and LTO-4 use the Advanced Encryption Standard (AES) with the longest and most secure keys -- 256 bits. AES-256 is implemented within Galois Counter Mode (GCM). This is a method of increasing AES security by efficiently adding Message Authentication Codes to ensure the integrity of the backup data stored on tape. The HP LTO-6, LTO-5 and LTO-4 tape drive(s) are designed to be compliant with the standard for tape drive security (IEEE 1619.1). ESKM: The HP Enterprise Secure Key Manager reduces your risk of a costly data breach and reputation damage while improving regulatory compliance with a secure centralized encryption key management solution for HP LTO-6, LTO-5 and LTO-4 enterprise tape libraries (EML and ESLG3). In addition, the ESKM provides strong auditable security and reliable lifetime key archival. The ESKM and LT0-6/LT0-5/LT0-4 drive encryption in the EML library provides a complete and secure privacy solution to protect customers' confidential data. Please note Secure Manager license is required for CVTL to enable connection to ESKM. For further information on the ESKM please visit: www.hp.com/go/eskm

http://en.wikipedia.org/wiki/Linear_Tape-Open

Correct Answer: C

http://h20195.www2.hp.com/V2/GetPDF.aspx%2F4AA3-8318ENW.pdf Replication solutions for demanding disaster tolerant environments HP 3PAR Remote Copy software

Long-distance disaster recovery

Disaster recovery requirements that include low RTOs and zero-data loss RPOs pose a significant challenge.

Adding a requirement for a distant disaster recovery site on the opposite side of a continent rather than in an adjacent town greatly compounds these challenges and the complexity of typical solutions.

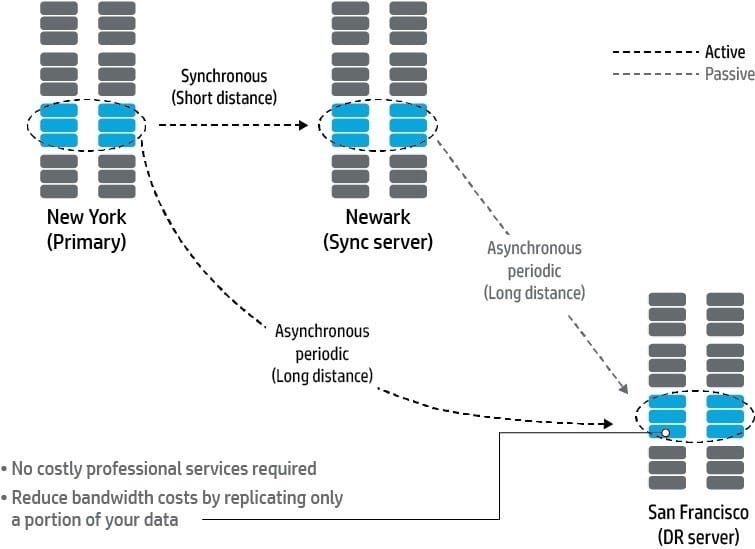

PDF Replication solutions for demanding disaster tolerant environments, pp 10 e 11 Synchronous long- distance topology

Synchronous long distance combines the ability to make replicas created using synchronous mode over a high-speed low-latency network along with the high-link latency replication capability offered by asynchronous periodic mode to provide

a long distance replication solution. An SLD topology has the potential of delivering a zero data loss RPO to the remote asynchronous periodic replication site. This is accomplished by using two backup storage servers: one located near the

primary InServ using Synchronous mode (the sync array) and a distant storage server using asynchronous periodic mode (the disaster recovery array). In addition to the HP 3PAR Remote Copy connections from the primary array to the two

backup arrays, a passive asynchronous periodic link is configured from the sync array to the disaster recovery array (see figure 8). This is the only HP 3PAR Remote Copy technology that supports replicating the same Remote Copy primary

volumes from a source array to two separate target arrays. Only a single Remote Copy volume group (consistency group) is supported in an synchronous long distance topology.

The primary intent of the SLD topology is to provide users with a way of potentially achieving an RPO of zero at the distant asynchronous periodic disaster recovery array in the event a disaster renders the primary array down. If a disaster

takes the primary storage array down, on failover to the sync array, the passive asynchronous periodic link between the sync array and the disaster recovery array is activated and any data that was written on the sync array but that has not

yet made it to the disaster recovery array is sent from the sync array to the disaster recovery array, bringing the disaster recovery array up to date with the last write that occurred to the primary array. After the disaster recovery array has been

made consistent with the state of the primary storage array at the time of failure, operations may be continued using the disaster recovery site with no loss of data suffered (RPO = 0) (or operations can proceed from the sync array if that is

desired). The normally passive asynchronous periodic link between the sync array and the disaster recovery array is then reversed so updates to the disaster recovery array are replicated back to the sync array albeit in asynchronous periodic

mode. When the original primary array is restored to service, its Remote Copy links are reversed and used to synchronize the primary server's volumes with changes that occurred during the outage before resuming normal service.

Correct Answer: D

http://cloud-land.com/blog/category/storage/

http://h20195.www2.hp.com/v2/GetPDF.aspx%2F4AA3-8316ENW.pdf HP 3PAR StoreServ offers efficient, autonomic, and multi-tenant features to positively impact your critical business issues. It has set the gold standard for thin provisioning

and is the leading storage vendor offering a multidimensional approach to thin storage.

Correct Answer: B

Correct Answer: B

Reference: http://www8.hp.com/us/en/products/data-storage/storeall.html (what's new)

Correct Answer: B

Reference: https://solutionexchange.vmware.com/store/products/hp-insight-control-storage- module-for- vcenter

Correct Answer: D

Correct Answer: BD

Fabric zoning controls which FC end-devices have access to each other on the fabric. Zoning also isolates the host and HP 3PAR StoreServ Storage ports from Registered State Change Notifications (RSCNs) that are irrelevant to these ports

When changing an existing host persona from 6 to 11, a host reboot is required tor the change to take effect. This is an offline process. See "Configuring ESX/ESXi Multipathing for Round Robin via SATP PSP" (page 42) for the detailed procedure, as the host persona change should coincide with changing the SATP rules on the host as well.
