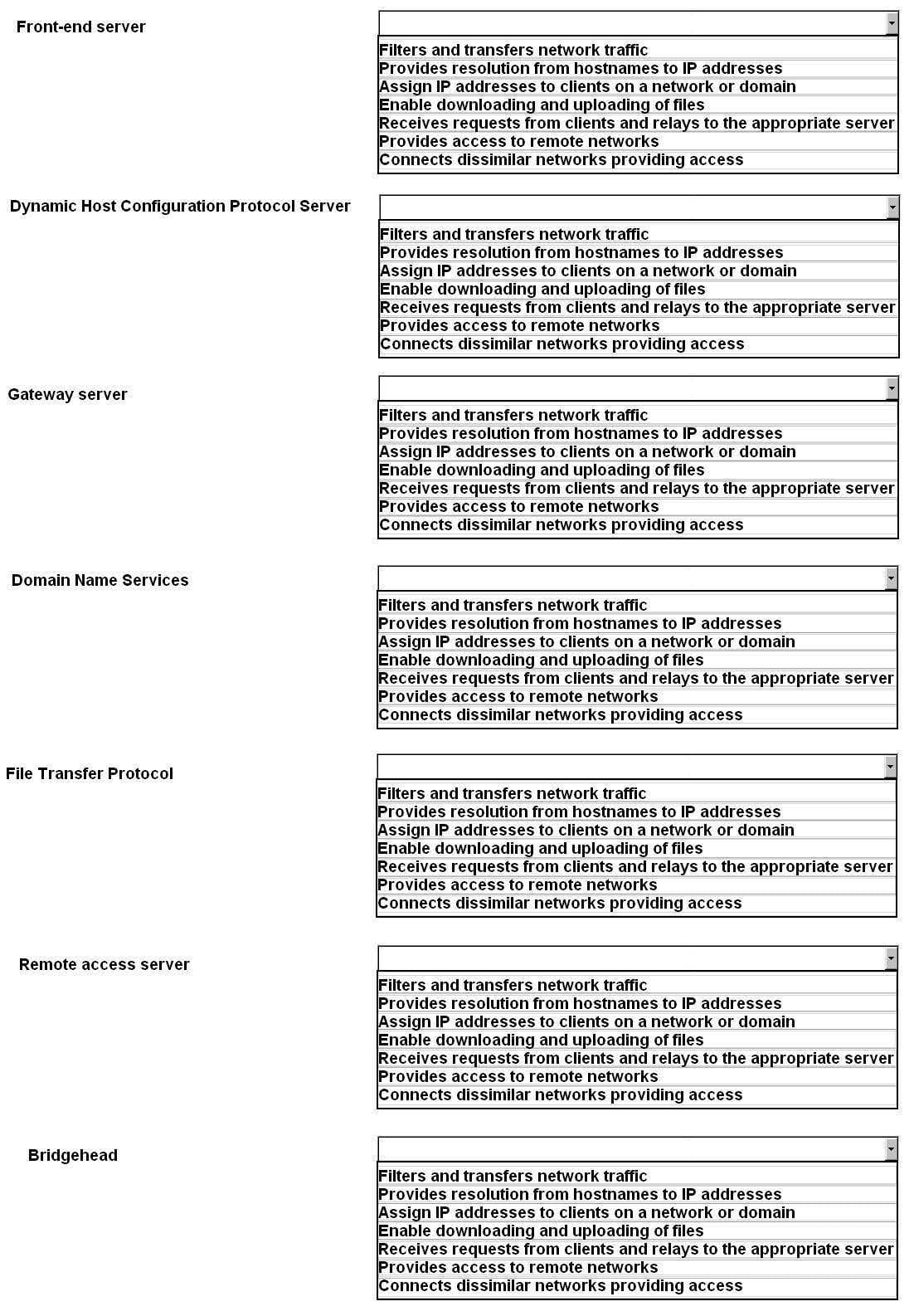

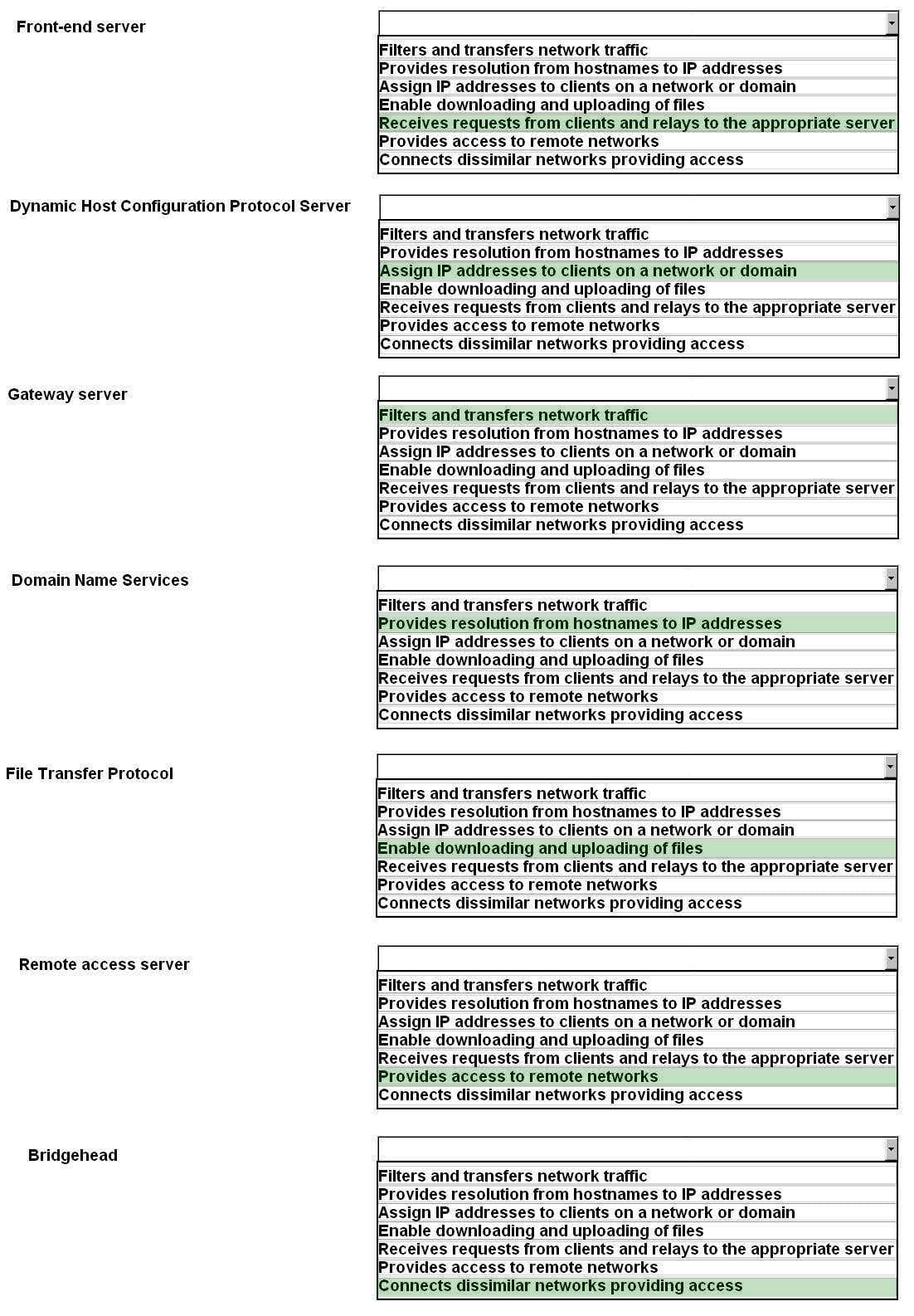

Match each server environment to correct description.

Hot Area:

Hot Area:

You instated Hyper-V on a BL460 G6. Which RBSU advanced setting should be changed?

A. Hyperthreading

B. Intel Virtualization technology

C. hardware pre-fetcher

D. option ROM loading sequence

An external storage device is connected to HP ProLiant Gen8 servers VMware 5.0i. You want to create a shared datastore for all the servers. After creating a LUN on a storage device, what is the correct procedure to do this?

A. Present the LUN to one ESXi server, using the storage configuration tool, create a VMFS datastore and enable Round Robin or MRU policy for that datastore.

B. Present the LUN to the server running VCenter, create a datastore and present it to the ESXi servers.

C. Present the LUN to all servers and format it with the VMFS file system from any of them, the remaining servers will recognize the newly created datastore.

D. Present the LUN to one of the servers and create a datastore; enable access for the remaining servers.

Which HP P4000 feature enables volume replication to the remote site using WAN link?

A. CMC WAN Replication

B. SAN/iQ Remote Copy

C. SAN/iQ SmartClone

D. P4000 Command View

You are designing a new multi-site data center. A key requirement for storage is to start with a small solution and include the ability to increase capacity and performance as needed. Which storage solution has the opportunity to start with 2 nodes, scaling up to 32 nodes as a single solution?

A. HP 3PAR T800/P10000

B. HP P2000

C. HP P6000 EVA

D. HP P4000

You configured disk thresholds for all servers running Windows Server 2008 R2. You want HP SIM to react by running a script that will delete all IE temporary files on the server that reports problems with the available capacity on the drive. What do you have to configure from the HP SIM level to achieve this?

A. Configure the Single Sign On feature for all the servers that should be covered that script.

B. Establish a trust relationship between HP SIM and all servers covered by that script, and apply the Insight Control licenses.

C. Create a custom command that will delete temporary files and configure an automatic event handling task to run this script when a specific event occurs.

D. Import the HP SIM certificate to the HP System Management homepage for all of the servers that should be covered by that script and configure SNMP security to allow remote command execution.

A customer is running a Matrix Operating Environment to manage a virtualized environment with ESX and Hyper-V hosts. The customer wants to prepare an initial performance baseline for the environment. Which tool can be used to prepare this baseline?

A. Insight Control performance management

B. Performance Quick Reference tool

C. Active Health System log

D. Insight Performance Orchestrator

Which HP SIM feature allows you to perform a Virtual Connect Profile movement from a failed server to a pace machine after the failure was discovered?

A. Insight Control virtual management functionality

B. Automatic event handling and custom commands

C. Remote Task Execution based on SSH

D. vCenter Server and HP SIM integration

HP Insight Remote Support can be configured to use an encrypted connection. To enable this feature, which TCP port needs to be allowed for outbound connection?

A. 22

B. 3389

C. 4253

D. 443

VMware HA has a prerequisite that includes the ability to power on a virtual machine from all hosts within the cluster. This means all hosts have to access to which common resource?

A. VMware HA agent

B. vCenter server

C. Redundant heartbeat network

D. Shared storage
