Refer to the exhibit.

A network administrator needs to configure link aggregation using static LACP on Switch-A, which is an HP Comware switch. Which configuration accomplishes this goal?

A. Option A

B. Option B

C. Option C

D. Option D

Which statement is correct about IRF?

A. Identical models of switches must be used in the same IRF domain.

B. Logical IRF port one on a switch must be connected to IRF port two on a second switch.

C. MSTP is used to remove loops within an IRF domain.

D. LACP is used to build IRF port connections between switches.

When performing auto discovery with Intelligent Management Center (IMC), which two components should be defined in order to fully manage the discovered networking devices?

A. SNMP and syslog

B. telnet and SSH

C. SSH and TFTP

D. SNMP and telnet

Which VLAN port type is only supported by HP Comware switches?

A. access

B. voice

C. trunk

D. hybrid

Which action can be performed from an HP Comware switch?

A. Execute the super command to change privilege levels.

B. Execute the startup-default command to define the configuration file to load upon bootup.

C. Execute the show flash command to examine the operating systems stored in flash.

D. Execute the boot set-default flash command to define the default operating system to load.

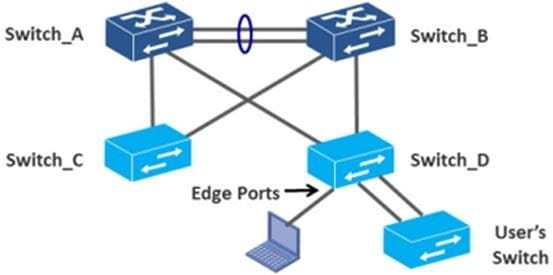

Refer to the network exhibit.

A user brings a generic switch from home into a company. The user switch does not support any Spanning Tree protocols. The user switch has two connections to the network on switch ports that are defined as edge ports. Assume the company switches are HP Provision switches.

Which HP protection feature effectively manages this problem?

A. Edge Protection

B. Loop Protection

C. Root Protection

D. BPDU Protection

Refer to the exhibit.

A network administrator is managing the configuration files on an HP Provision switch and executes the commands shown in the exhibit. What is the probable cause of the error message when the network administrator tries to copy the file?

A. The flash memory in the switch is full and supports no more files.

B. The copy command should only be used to manage operating systems.

C. No empty configuration memory slots exist on the switch.

D. The copy command contains a syntax error.

Which statement is true about using the RADIUS protocol for AAA functions'?

A. Only passwords are encrypted in the RADIUS payload.

B. Digital certificates are used to authenticate the networking devices and AAA server.

C. AAA accounting records can be saved using RADIUS or syslog.

D. RADIUS uses TCP as a transport.

Refer to the network exhibit.

Switch_A and Switch_B are HP Comware switches currently in the same MSTP region with the following MSTP configuration:

Region name: HP

Revision number 1

Instance 1:VLANs 10 and 11

Instance 2: VLANs 12 and 13

Instance 0: VLANs 1-9 and 14-4094

MSTP is operating correctly on Switch_A and Switch_B. Switch_C and Switch_D are new Comware switches and have been added to the network. The links between the switches are trunks, where VLAN 1 is the PVID and all other VLANs are permitted on the trunks. The only STP command executed on the two new switches is stp enable. Based on this information, what is the resulting Layer 2 topology?

A. All uplinks are blocked until the new switches have MSTP configured correctly.

B. A Layer 2 loop will result, creating a broadcast storm,

C. Only one uplink from each new switch will be utilized.

D. Both uplinks from the new switches are utilized but load sharing is inefficient

Which technology allows 802.11n scale up speeds of 600 Mbps?

A. Spatial Multiplexing (SM)

B. Multiple-Input Multiple-Output (MIMO)

C. Worldwide Interoperability for Microwave Access (WIMAX)

D. Channel Bonding (CB)
