Correct Answer: B

The first step in building the model in executing a model-based systems engineering methodology should be to define the initial model organization. The initial model organization defines the structure and scope of the model, such as the packages, views, viewpoints and frameworks that will be used to organize the model elements and diagrams. The initial model organization provides the foundation and context for the subsequent steps in building the model, such as defining the domain model structure, defining the initial set of system requirements or defining the business or enterprise use cases. The initial model organization can also help establish the modeling conventions and standards that will be followed throughout the model development process. References: OMG-Certified Systems Modeling Professional - Model Builder ?Advanced (OCUP2-ADV) Examination Guide Version 1.0, Section 4.1

Correct Answer: C

The main difference between software development methodologies and systems development methodologies is that software development methodologies tend to focus on high quality code, such as functionality, reliability, performance and maintainability, while systems developmentmethodologies tend to focus on holistic issues, such as stakeholder needs, system boundaries, interfaces, trade-offs and lifecycle management. Software development methodologies are usually applied to software- intensive systems or subsystems, while systems development methodologies are usually applied to complex systems that involve multiple disciplines and domains. It is not true that all current systems development methodologies are extensions of previous software development methodologies, as some systems development methodologies have different origins and foundations. It is not true that software development methodologies employ formal architecting techniques, while systems development methodologies tend not to, as both types of methodologies can use different levels of formality and rigor in their architecting approaches. It is not true that for software intensive systems, there is effectively no difference between system development methodologies and software development methodologies, as software intensive systems still require a broader and deeper perspective than software development methodologies can provide. It is not true that there is no difference between any methodology good for software development and any methodology good for systems development, as different types of systems may require different types of methodologies that suit their characteristics and challenges. References: OMG-Certified Systems Modeling Professional - Model Builder ?Advanced (OCUP2-ADV) Examination Guide Version 1.0, Section 4.5

Correct Answer: A

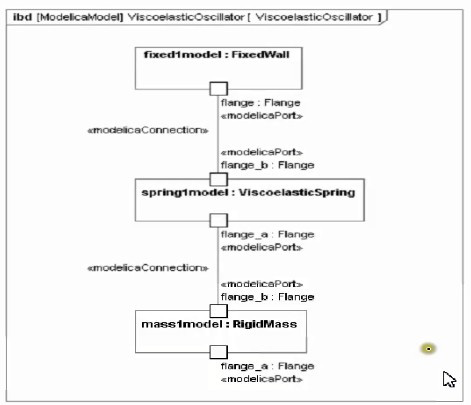

To get this model ready for solving according to the SysML-Modelica Transformation specification, one must provide specific values for the parameters and properties of the blocks, such as resistance, capacitance, voltage, etc. Also, one must define a parametric diagram that includes equations for Kirchhoff's Laws consistent with the above ibd. A parametric diagram is a SysML diagram that shows constraints and parameters on blocks and their properties. Kirchhoff's Laws are physical laws that describe how electric currents and voltages behave in a circuit. By defining a parametric diagram with these equations, one can specify how the blocks and connectors in the ibd are related mathematically.

Correct Answer: C

Option C gives the most general answer without including any irrelevant rules. Option A is incorrect because it does not account for the possibility of an input object being consumed without producing any other object. Option B is incorrect because it introduces the concept of undocumented user need, which is not part of the requirements analysis. Option D is incorrect because it adds an unnecessary rule about cycles of control flows, which are not prohibited in activity diagrams. References: OMG-Certified Systems Modeling Professional - Model Builder ?Advanced (OCUP2-ADV) Examination Guide Version 1.0, Section 4.2.1.3

Correct Answer: D

It is appropriate to use the MARTE profile to model this system with SysML because the control unit must order the submarine's operations in real time, which the MARTE profile makes it possible to model in SysML. MARTE is a UML profile that provides concepts and annotations for modeling and analyzing real-time and embedded systems. It supports modeling time-related properties and constraints, such as deadlines, periods, durations, clocks, etc., as well as resource-related properties and constraints, such as memory, CPU, power, etc. By using MARTE, one can capture the real-time requirements and behavior of the system and perform schedulability and performance analysis.

Correct Answer: C

The forward temporal order of these development stages is based on the typical sequence of activities in a system engineering process. Needs analysis is the first stage, where the problem and the stakeholder needs are defined. System design is the second stage, where the system architecture and requirements are developed. Trade study is the third stage, where alternative solutions are evaluated and compared based on various criteria. System acceptance is the final stage, where the system is verified, validated, and delivered to the customer.

Correct Answer: A

A trade study is a method for making a decision between competing alternatives based on a set of criteria, such as cost, performance, reliability, etc. A trade study allows a user to objectively determine the best means of implementing a particular function by evaluating and comparing the pros and cons of each alternative. A trade study can also help identify trade-offs and risks associated with each alternative

Correct Answer: B

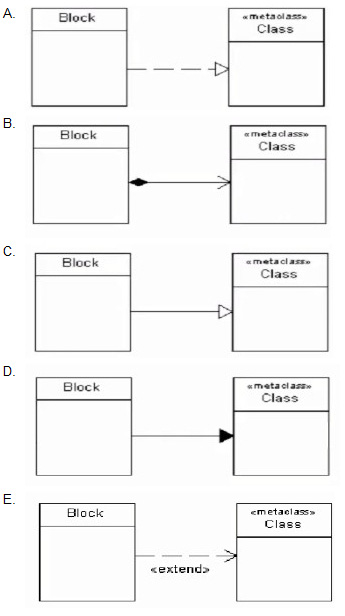

The diagram fragment that correctly shows a SysML Block extending a basic UML Class is Option B. This option shows a Block with the stereotype <> applied to it. This stereotype indicates that the Block is an extension of the Class metaclass. The Block inherits all the features of the Class, such as attributes, operations, associations, etc., and adds additional features specific to SysML, such as ports, flows, values, constraints, etc.

Correct Answer: C

The most important aspect of system development methodologies that the engineer is likely to discuss with the director of field support is how the system model can be used to facilitate change proposals, support plans, and training in the operational environment. The system model can provide a consistent and comprehensive view of the system's structure, behavior and performance throughout its lifecycle, and can help identify and evaluate potential changes, improvements or issues in the field. The system model can also help document and communicate the support requirements, procedures and resources for the system's operation and maintenance. The system model can also help design and deliver effective training programs for the system's users and operators. How field support operations can be modeled using MBSE methods, how software design patterns can be used to suggest Pre Planned Product Improvement (P3I) opportunities, and how operational evaluation (OPEVAL) plans can be developed and cross-checked in a system modeling environment are less important aspects of system development methodologies that may not be relevant or applicable to the director of field support's concerns. References: OMG-Certified Systems Modeling Professional - Model Builder ?Advanced (OCUP2-ADV) Examination Guide Version 1.0, Section 4.5

Correct Answer: A

For a system with stringent real-time requirements and power-consumption constraints, the concern that would lead the designer to employ the MARTE profile is ensuring that the structure could be precisely modeled and that analysis was supported. MARTE provides concepts and annotations for modeling the structure of real-time and embedded systems in terms of components, ports, connectors, flows, etc., as well as for modeling their behavior in terms of state machines, activities, etc. MARTE also provides concepts and annotations for performing analysis of system properties, such as schedulability, performance, power consumption, etc., using various methods and tools.
