HOTSPOT
You network contains an on-premises Active Directory domain that syncs to an Azure Active Directory (Azure AD) tenant. The domain contains the users shown in the following table.
You have a Windows Virtual Desktop deployment that contains the application groups shown in the following table.
You have the workspaces shown in the following table.

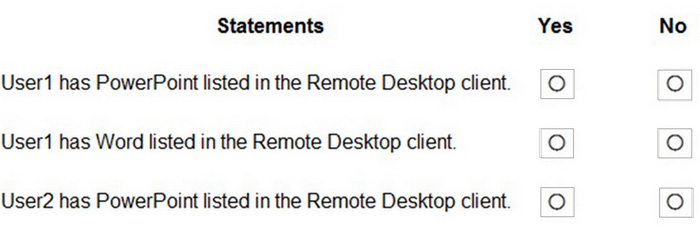

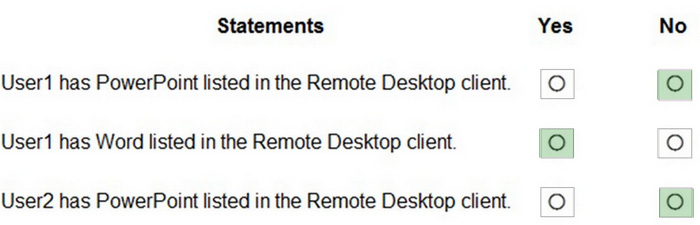

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:
HOTSPOT
You have an Azure subscription that contains the virtual machines shown in the following table.
You create a shared image gallery as shown in the SharedGallery1 exhibit. (Click the SharedGallery1 tab.)
You create an image definition as shown in the Image1 exhibit. (Click the Image1 tab.)
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:
HOTSPOT
You have an Azure subscription.
You plan to deploy an Azure Virtual Desktop solution that will contain Windows 10 multi- session hosts in a single host pool. The solution has the requirements shown in the following table.
You need to configure the session host for the host pool. The solution must minimize costs.
How many session hosts should the host pool contain, and how many vCPUs should each session host have? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:
HOTSPOT
You have an Azure subscription that contains the virtual machines shown in the following table.
You create an Azure Compute Gallery as shown in the Azure compute gallery exhibit. (Click the Azure compute gallery tab.)
You create a virtual machine image definition as shown in the VM image definition exhibit. (Click the VM image definition tab.)
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
Hot Area:
DRAG DROP
You need to ensure that you can implement user profile shares for the Boston office users. The solution must meet the user profile requirements.
Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:
You have a Windows Virtual Desktop host pool named Pool1 that runs Windows 10 Enterprise multi- session hosts.
You need to use Performance Monitor to troubleshoot a low frame quality issue that is affecting a current use session to Pool1.
What should you run to retrieve the user session ID?
A. Get-ComputerInfo
B. qwinsta
C. whoami
D. Get-LocalUser
Your network contains an on-premises Active Directory domain and a Windows Virtual Desktop deployment. The computer accounts for all the session hosts are in an organizational unit (OU) named WVDHostsOU. All user accounts are in an
OU named CorpUsers.
A domain administrator creates a Group Policy Object (GPO) named Policy1 that only contains user settings. The administrator links Policy1 to WVDHostsOU.
You discover that when users sign in to the session hosts, none of the settings from Policy1 are applied.
What should you configure to apply GPO settings to the users when they sign in to the session hosts?
A. loopback processing
B. FSLogix profiles
C. mandatory Roaming User Profiles
D. restricted groups
You have an Azure Virtual Desktop deployment that uses Microsoft 365 cloud services including Microsoft Teams.
Users use the Remote Desktop client to connect to the deployment from computers that run Windows 10.
You need to support audio and video in Azure Virtual Desktop and provide the users with access to Microsoft Teams calling and meeting features.
Which three actions should you perform? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.
A. Install the Microsoft Teams WebSocket Service on the Windows 10 computers
B. Configure the IsWVDEnvironment registry key on the Windows 10 computers
C. Configure the IsWVDEnvironment registry key on the virtual machines
D. Install the Microsoft Teams desktop app on the Windows 10 computers
E. Install the Microsoft Teams WebSocket Service on the virtual machines
F. Install the Microsoft Teams desktop app on the virtual machines
Your network contains an on-premises Active Directory domain named contoso.com that syncs to an Azure Active Directory (Azure AD) tenant. You have an Azure Virtual Desktop host pool named Pool1 that has the following settings:
1.
Host pool name: Pool1
2.
Host pool type: Personal
3.
Load balancing algorithm: Breadth-first
4.
Number of VMs: 3
The session hosts have the following configurations:
1.
Image used to create the virtual machines: Windows 10 Enterprise
2.
Virtual machines domain-joined to: On-premises contoso.com domain
You need to ensure that you can use Microsoft EndPoint Manager to manage security update on the session hosts.
What should you do?
A. Create Windows 10 Enterprise multi-session images
B. Configure the session hosts as hybrid Azure AD-joined
C. Change Host pool type to Pooled
D. Change Load balancing algorithm to Depth-first
You create the virtual machines shown in the following table.
You need a source virtual hard disk for new Azure Virtual Desktop session host deployments. The source operating system must have user-specific and machine- specific information removed. Which virtual machines can you use as the source?
A. SourceVM3 only
B. SourceVM1 only
C. SourceVM1, SourceVM2, and SourceVM3
D. SourceVM1 and SourceVM2 only
E. SourceVM2 only
