You have an Azure Virtual Desktop deployment that has 500 session hosts.

All outbound traffic to the internet uses a NAT gateway.

During peak business hours. some users report that they cannot access internet resources. In Azure Monitor, you discover many failed SNAT connections.

You need to increase the available SNAT connections.

What should you do?

A. Bind the NAT gateway to another subnet.

B. Add a public IP address.

C. Deploy Azure Standard Load Balancer that has outbound rules.

You have an Azure virtual network and an on-premises datacenter.

You are planning a Site-to-Site VPN connection between the datacenter and the virtual network.

Which two resources should you include in your plan? Each correct answer presents part of the solution.

NOTE: Each correct selection is worth one point.

A. a user-defined route

B. a virtual network gateway

C. Azure Firewall

D. Azure Web Application Firewall (WAF)

E. an on-premises data gateway

F. an Azure application gateway

G. a local network gateway

You have 10 Azure App Service instances. Each instance hosts the same web app. Each instance is in a different Azure region.

You need to configure Azure Traffic Manager to direct users to the instance that has the lowest latency.

Which routing method should you use?

A. geographic

B. weighted

C. performance

D. priority

You are planning the IP addressing for the subnets in Azure virtual networks.

Which type of resource requires IP addresses in the subnets?

A. Azure Virtual Network NAT

B. virtual network peering

C. service endpoints

D. private endpoints

You need to ensure that the URL is accessible through the application gateway.

To achieve the requirement, you add a rewrite rule for the host header.

Did you achieve the requirement?

A. Yes

B. No

You plan to deploy an Azure Front Door.

Which properties should you use to configure routing rules?

A. HTTP protocols (HTTP/HTTPS)

B. Hosts

C. Paths

D. Time stamp

E. User certificates

You have an Azure subscription mat contains tour virtual networks named VNet1, VNet2, VNet3, and VNet4.

You plan to deploy a hub and spoke topology by using virtual network peering.

You need to configure VNet1 as the hub network. The solution must meet the following requirements:

1.

Support transitive routing between spokes.

2.

Maximize network throughput.

What should you include in the solution?

A. Azure VPN Gateway

B. Azure Route Server

C. Azure Private Link

D. Azure Firewall

You have an on-premises datacenter and an Azure subscription.

You plan to implement ExpressRoute FastPath.

You need to create an ExpressRoute gateway. The solution must minimize downtime if a single Azure datacenter fails.

Which SKU should you use?

A. ErGw1AZ

B. High performance

C. Ultra performance

D. ErGw3AZ

E. ErGw2AZ

HOTSPOT

Your on-premises network contains the subnets shown in the following table.

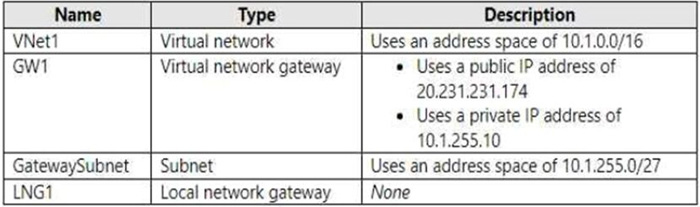

The network contains a firewall named FW1 that uses a public IP address of 131.107.100.200. You have an Azure subscription that contains the resources shown in the following table.

You plan to configure a Site-to-Site (S2S) VPN named VPN1 that will connect GW1 to FW1.

You need to configure LNG1 to support VPN1. The solution must meet the following requirements:

Ensure that the resources on Subnet1 and Subnet2 can communicate with the resources on VNet1.

Minimize administrative effort.

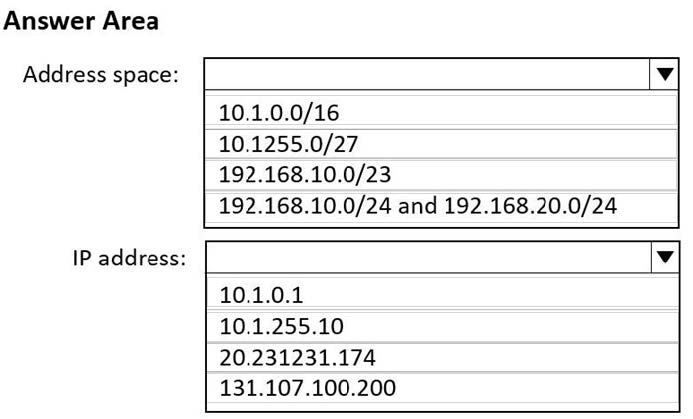

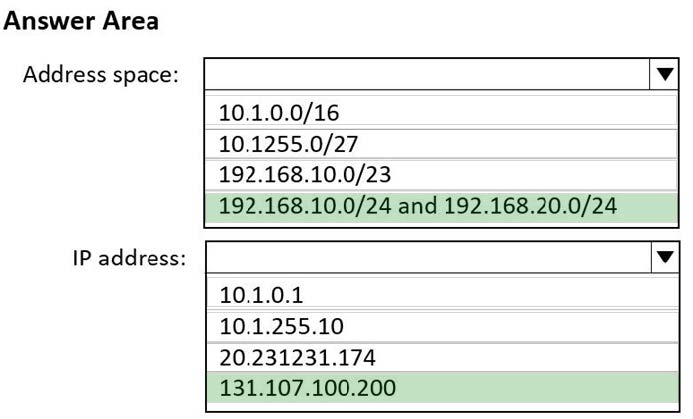

How should you configure LNG1? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

Hot Area:

HOTSPOT

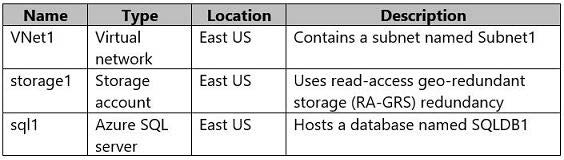

You have an Azure subscription that contains the resources shown in the following table.

You need to restrict access to storage1 and sql1 by using service endpoints. The solution must meet the following requirements:

Allow access from Subnet1 to SQLDB1.

Implement service endpoint policies to restrict access to supported resources.

Allow access from Subnet1 to storage1 and the read-only replica of storage1 in the paired Azure region.

What is the minimum number of service endpoints and service endpoint policies you should create? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

Hot Area:
