DRAG DROP

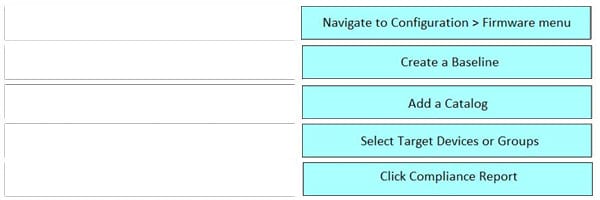

A datacenter administrator has been tasked to perform firmware updates of the whole chassis and its components based on the latest dell.com catalog.

What is the correct sequence of actions?

Select and Place:

DRAG DROP

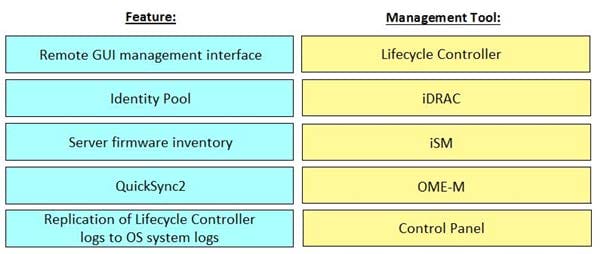

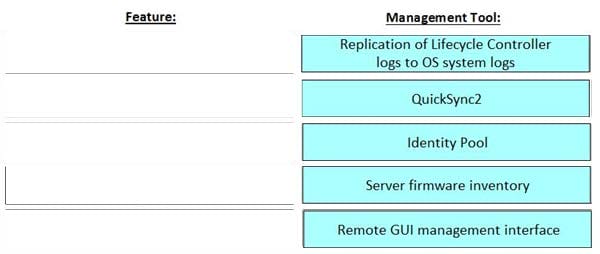

Match each feature with its associated PowerEdge server management tool.

Select and Place:

A server sled has a single mezzanine card installed in the correctly supported slot. To which IOM fabric(s) does the sled have access?

A. Fabric A1 and Fabric A2

B. Fabric A1 only

C. Either Fabric A or Fabric B, depending on the configuration set in OME-M

D. Fabric A1 and Fabric B1

What can be used as the firmware update source for OME-M within an MX chassis?

A. Server Update Utility Baseline from a Catalog

B. Server Update Utility System Live Image (SLI)

C. Dell Update package System Live Image (SLI)

D. Dell Update Package Baseline from a Catalog

What is a characteristic of MX7000 networking in Scalable Fabric Mode?

A. Enabled by default, all switch-specific OS10EE capabilities are available.

B. Layer 2 bridging is disabled be default and interfaces must join a bridge domain (VLAN) before being to forward frames.

C. All switch interfaces are assigned to VLAN 1 by default and are in the same Layer 2 bridge domain.

D. Available on MX9116n FSE and MX7116n FEM but not on the MX5108n.

Which I/O module is supported for Fabric B?

A. MX5016s

B. MSG610s

C. MX5000s

D. MX5108n

What is a characteristic of MX7000 networking in Full Switch Mode?

A. Layer 2 bridging is disabled by default and interfaces must join a bridge domain (VLAN) before being able to forward frames.

B. Networking is enabled by default and all switch-specific OS10EE capabilities are available.

C. Networking is available on MX9116n FSE and MX7116n FEM but not on the MX5108n.

D. Switches operate as layer 2 I/O aggregation devices and are managed through OME-M.

What is the benefit of C22 power inlet connectors on the MX7000 chassis?

A. Meet higher power requirements

B. C22 connectors are now standard on PowerEdge

C. Allow for higher exhaust temperatures

D. Enable linking together power supplies

What automatically opens a support case with technical support and collects the PowerEdge MX system state information that is required for troubleshooting an issue, then sends it securely to Dell EMC?

A. OpenManage Essentials

B. SupportAssist Collections

C. OpenManage Enterprise

D. SupportAssist Enterprise

Where in the OME-M Web interface can the Chassis Deployment Wizard be found?

A. Hardware > Initial Configuration

B. Configuration > Deploy > Chassis Deployment Wizard

C. Home > Settings > Chassis Deployment Wizard

D. Home > Configure > Initial Configuration
