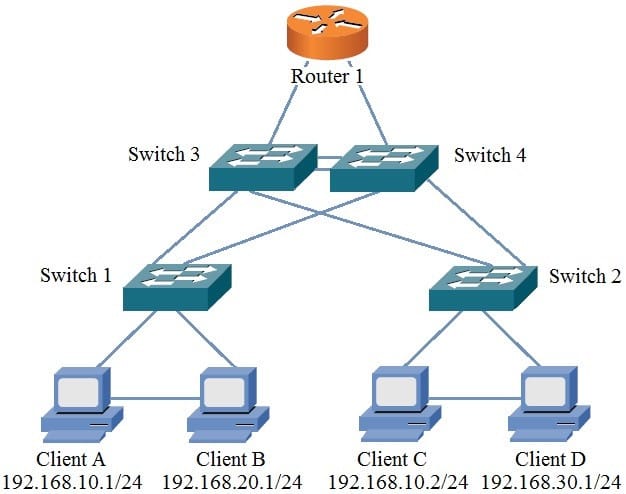

Refer to the Exhibit.

If Client B sends a packet to Client A, what is the highest level of the network hierarchy that the packet will transverse?

A. Distribution

B. Network

C. Access

D. Core

A user's workstation has an IP phone connected to a Dell EMC N-Series switch.

What is the recommended number of VLANs that should be configured on the switch port?

A. 0

B. 1

C. 2

D. 3

A user's workstation is connected to an IP phone that is connected to a Dell EMC N-Series switch. Which type of traffic is typically tagged or untagged?

A. Data = tagged, Voice = untagged

B. Data = untagged, Voice = untagged

C. Data = tagged, Voice = tagged

D. Data = untagged, Voice = tagged

In a traditional campus network design using a three-tier hierarchical model, what are the key attributes of the Core layer in this model?

A. Provides a wide range of services, is highly available, and operates in an active-passive mode

B. Provides a limited set of services, is highly available, and operates in an always-on mode

C. Provides a wide range of services, is highly available, and operates in an always-on mode

D. Provides a limited set of services, is highly available, and operates in an active-passive mode

Which port security method converts existing dynamically learned MAC addresses on an interface to this mode and not age out?

A. Static

B. MAC address

C. Sticky

D. Dynamic

Refer to the Exhibit.

A network administrator needs to configure the switches to allow traffic to communicate from Host 1 to Host 2. Which recommended switch port mode should the interconnecting switch ports be configured?

A. Access

B. Trunk

C. VLAN Stacking

D. Hybrid

What is the maximum number of dynamic MAC addresses that can be learned on a Dell EMC N-Series switchport that is configured for dynamic locking?

A. 100

B. 300

C. 400

D. 600

A network administrator is setting up a Class 5 powered device in their network. Which Dell EMC N-Serves switch model(s) will support this device?

A. N1100P and N2000P

B. N1500P

C. N2000 and N3000P

D. N3000P only

Which Layer 3 protocol does MLAG support?

A. None

B. Static Routing

C. OSPF

D. RIPv2

A Dell EMC N-Series switch is configured to uplink to a customer switch using two separate 4-port port-channels configured as trunks. Both switches are configured with 16 VLANs and RSTP.

How will VLAN traffic be distributed across the port-channels?

A. All VLANs are allowed across a single port-channel

B. A single VLAN is allowed across each port-channel

C. All VLANs are allowed across both port-channels

D. Eight VLANs are allowed across each port-channel
