DRAG DROP

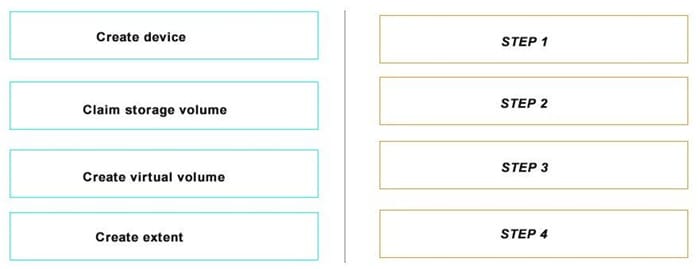

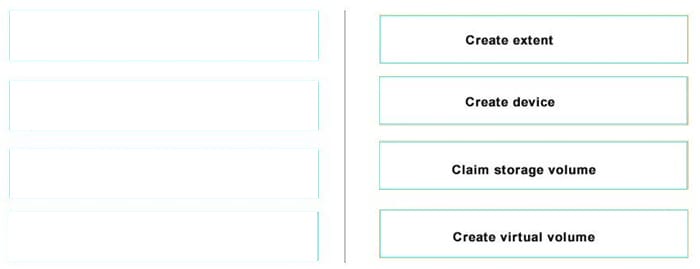

What is the correct order of steps to create a virtual volume?

Select and Place:

What can be used to monitor VPLEX performance parameters?

A. VPLEX Cluster Witness

B. Unisphere Performance Monitor Dashboard

C. EMC SolVe Desktop

D. EMCREPORTS utility

What are the two common use cases of the VPLEX Mobility feature?

A. NDU upgrades Continuous Data Protection

B. Workload Rebalance Deduplication

C. Workflow Automation Tech Refresh

D. Tech Refresh Workload Rebalance

LUNs belonging to an ESXi cluster were encapsulated behind VPLEX. What information must be shared with the ESXi administrator so that they can re-discover the datastore and the RDM LUNs?

A. Virtual volume VPD

B. UUID of back-end LUN

C. VML ID

D. WWN: WWPN

What is the maximum number of synchronous consistency groups supported by VPLEX?

A. 256

B. 512

C. 1024

D. 2048

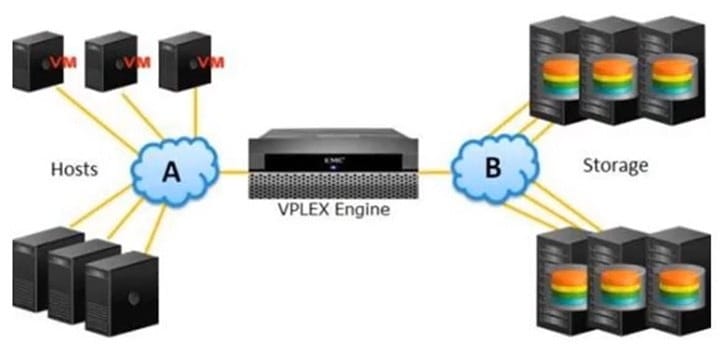

Which protocol is presented by "B" in the exhibit?

A. FC

B. iSCSI

C. FCoE

D. IPFC

What determines which cluster will service I/O in the event of a WAN COM failure for a distributed device that is not a member of a consistency group?

A. Rule set of the distributed device

B. VPLEX Witness

C. Detach rule of the consistency group

D. Detach rule of the storage view

VPLEX Metro has been added to an existing HP OpenView network monitoring environment. The VPLEX SNMP agent and other integration information have been added to assist in the implementation. After VPLEX is added to SNMP monitoring, only the remote VPLEX cluster is reporting performance statistics.

What is the cause of this issue?

A. Local VPLEX Witness has a misconfigured SNMP agent.

B. HP OpenView is running SNMP version 2C, which may cause reporting that does not contain the performance statistics.

C. TCP Port 443 is blocked at the local site's firewall.

D. Local VPLEX cluster management server has a misconfigured SNMP agent.

A storage administrator has been tasked with encapsulating 100 LUNs across five Oracle servers from an existing array to a VPLEX Metro cluster. The administrator can obtain the same outage window for all five servers and wants to streamline as much of the encapsulation process possible.

What can the administrator use to help achieve this task?

A. SolVe Desktop utility

B. VIAS Provisioning Wizard

C. Claim Storage Wizard

D. storage-tool compose

Which command is used to display available statistics for monitoring VPLEX?

A. monitor stat-list

B. monitor add-sink

C. monitor collect

D. monitor create
