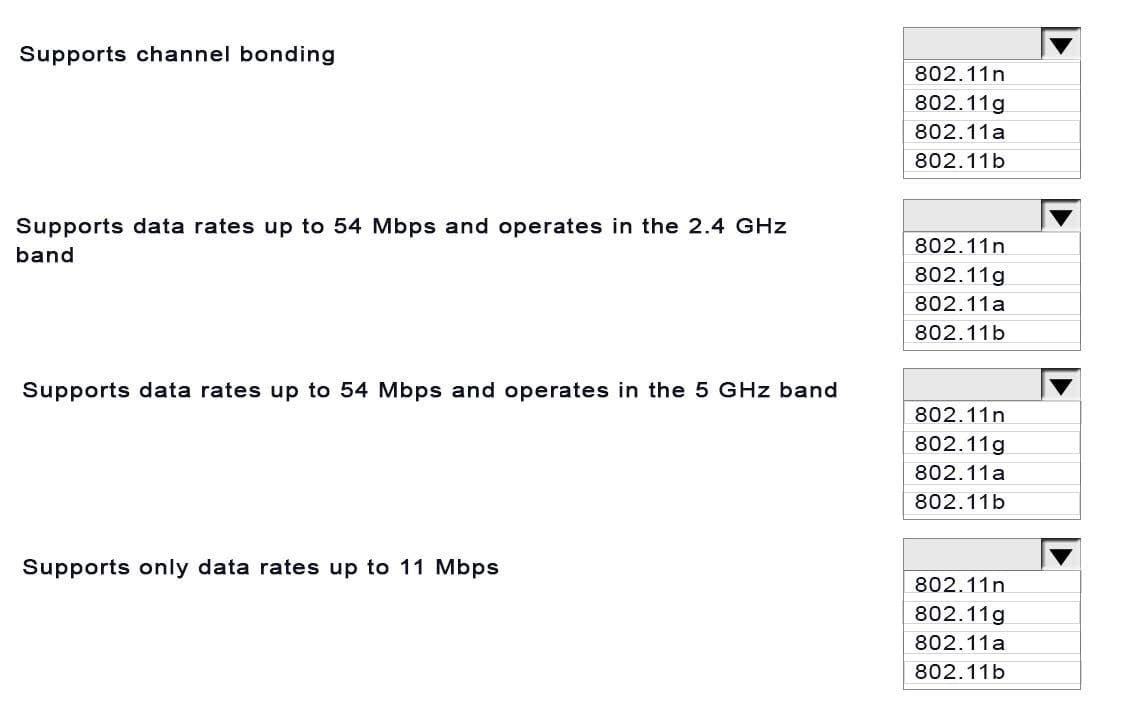

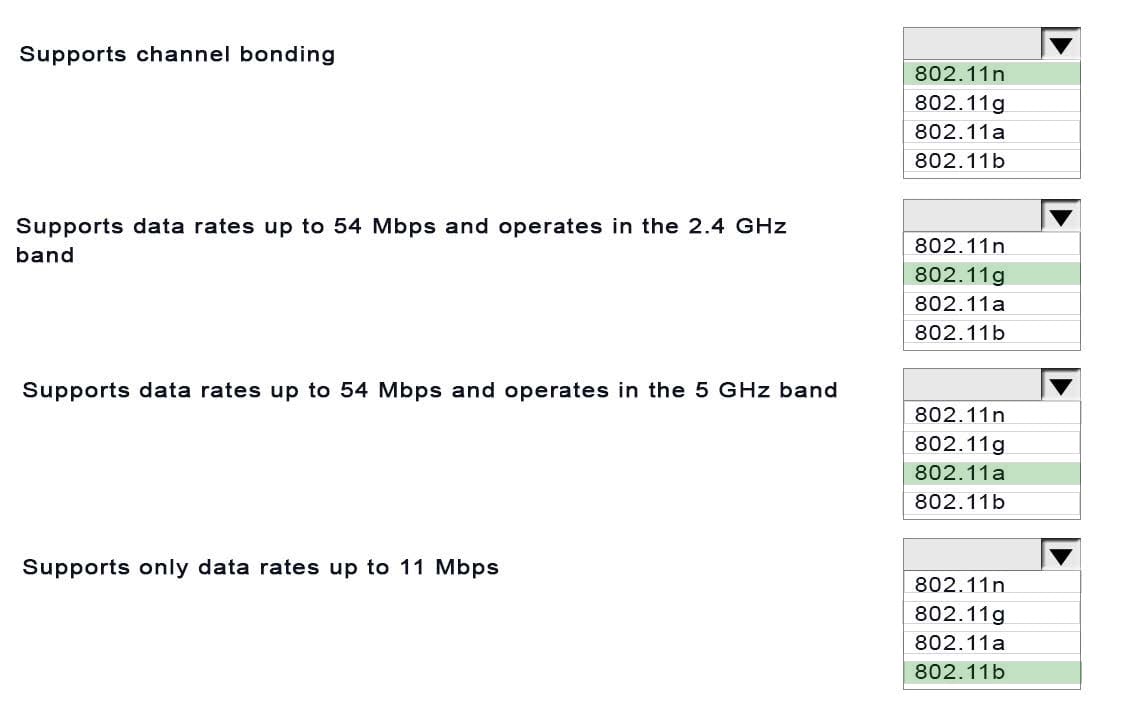

Match the description with the 802.11 standard. (Each option may be used only once.)

Hot Area:

A network administrator is managing an HP Comware switch from the CLI. Which action can the administrator only perform in User view?

A. verifying connectivity with traceroute or ping tools

B. creating a VLAN and assigning ports to it

C. executing display commands

D. viewing files located in flash memory

A company wants to implement HP Intelligent Resilient Framework (IRF) at the access layer. Which switches could they use?

A. two HP 5500 HI Series switches

B. one HP 5412R zl2 Series switch and one HP 5800 Series switch

C. one HP 5800 Series switch and one HP 5500 Series switch

D. two HP 5406R zl2 Series switches

Which ProVision configuration includes 10.0.3.0/24, which represents VLAN 30 in OSPF area 0?

A. vlan 30 ip ospf area 0

B. vlan 30 area 0

C. interface vlan 30 ip ospf area 0

D. router ospf area 0 vlan 30

A network administrator executes these commands on an HP ProVision switch: ProVision(config)# ip route 10.1.100.0/24 10.1.1.1 ProVision(config)# ip route 10.1.200.0/24 10.1.1.1 The administrator attempts to ping a device in the 10.1.100.0/24 network from a client attached to the switch and is unable to ping it. Assume there are no firewalls and all other settings are correct. What must the administrator configure on

the ProVision switch to get a response?

A. ProVision(config)# ip routing

B. ProVision(config)# spanning-tree disable

C. ProVision(config)# routing enable

D. ProVision(config)# routingProVision(config-router)# ip enable

A network administrator wants an HP switch to use an IP address that is always up for its Open Shortest Path First (OSPF) router ID. Which address meets this requirement?

A. An IP address configured as the global management address

B. An IP address on the interface for the default VLAN, which is typically VLAN

C. An IP address on the VLAN 1 interface

D. An IP address on a loopback interface

What is one feature that MSTP has that RSTP does not have?

A. load-sharing on redundant links

B. alternate root ports

C. multiple designated ports per segment

D. one set of BPDUs per VLAN

What is the purpose of a management VLAN on an HP Provision switch?

A. To prevent IP addresses from being configured on any VLANs other than the management VLAN

B. To provide an administrative-only marker, label, or alias for the VLAN where IMC is installed

C. To identify a specific VLAN as the only VLAN from which users can connect to the switch management interface

D. To limit remote access connections by specifying the IP addresses that can establish connections

A company needs a two-member Intelligent Resilient Framework (IRF) virtual switch. The network administrator is configuring IRF member 2 that will connect to port 1/1 on IRF member 1. What is the correct IRF port ID for member 2?

A. 1/2

B. 2/2

C. 1/1

D. 2/1

Which statement is true concerning spanning tree protocols and HP switches?

A. ProVision switches use non-standard default cost values

B. Comware switches have spanning tree enabled, by default

C. ProVision switches, by default, auto-sense edge ports

D. Comware switches use their serial number as the switch identifier in the bridge ID
