You are installing an additional HPE 3PAR StoreServ SFF disk enclosure in an HPE 3PAR 8200 StoreServ array. The newly-installed enclosure appears as cage1. You are able to verify from the 3PAR CLI that both cage0 and cage1 appear. However, you notice an error in the system health:

Click on the controller enclosure port you would look at to start troubleshooting this issue.

Hot Area:

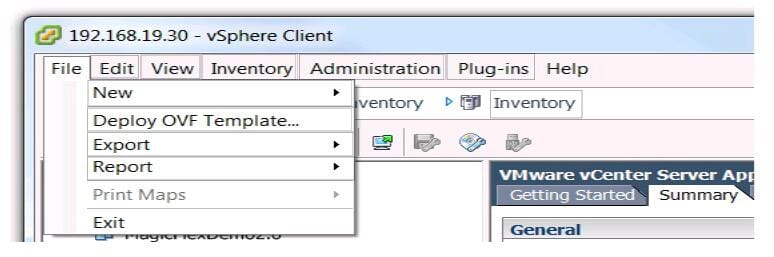

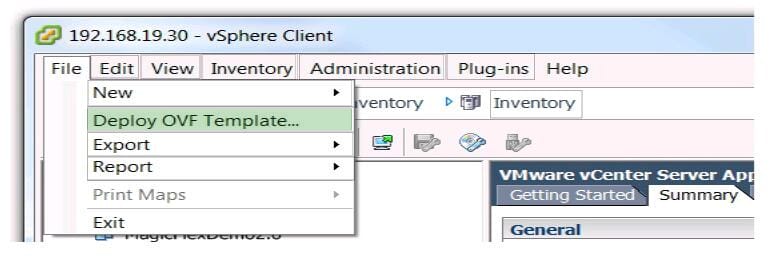

Click the menu option a storage integrator will use to install a new StoreOnce VSA solution.

Hot Area:

A storage integrator installed an HPE 3PAR StoreServ system.

For which default accounts will the storage integrator need to hand over changed passwords to the customer?

A. 3parcust. 3paradm

B. cpmaint, spmaint

C. root, 3paradm

D. root, console

An integrator is validating a design for an HPE 3PAR StoreServ solution. The assessment document shows that there is structured cabling between the rack the array will be installed in and the racks with the SAN switches. The fiber segments between the racks are documented as being 50 micron OM2 and are terminated with SC connectors.

What needs to be considered when validating this design?

A. 3PAR arrays must be directly connected to SAN switches.

B. The SC connectors must be replaced by LC connectors.

C. OM2 Fiber cables are not supported for 8 Gbps.

D. Fiber segments cannot mix OM2 and OM4 cables.

As a best practice, what should the Integrator do after finishing a storage solution installation?

A. Remove and insert each hot swappable component one-by-one.

B. Verify the used space in a rack.

C. Test storage solution functionality under the operational temperature range.

D. Verify the event logs are accumulating data.

Which management interface or tool primarily offers remote support capabilities for an HPE 3PAR StoreServ storage system?

A. HPE 3PAR Service Processor

B. HPE 3PAR Direct Connect

C. HPE Insight Remote Support

D. HPE Insight Online 3PAR

A storage integrator is planning an HPE MSA Storage installation.

What needs to be taken into consideration when implementing a SAS connected model?

A. SAS expander or a SAS switch is supported only with non-redundant paths.

B. SAS expander or a SAS switch is required if eight or more servers are connected.

C. Up to four servers with redundant paths can be connected.

D. Up to four servers with non-redundant paths can be connected.

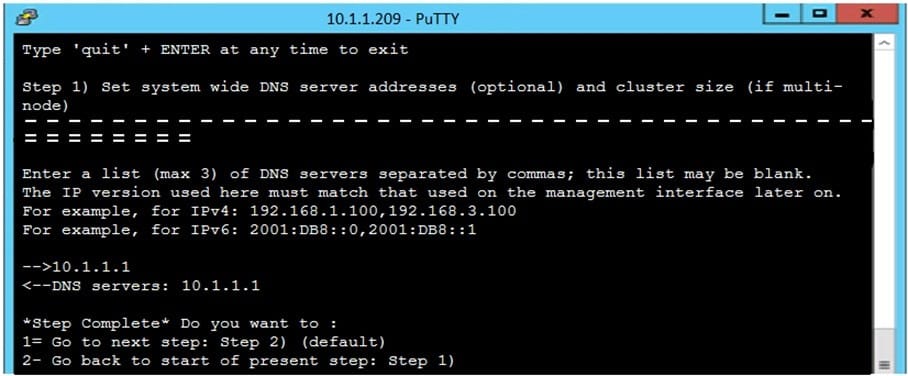

Refer to the exhibit.

Which command can be used in the CLI console to set the static IP address and DNS server for an HPE StoreOnce device?

A. net set wizard

B. create network

C. setup network

D. run setup

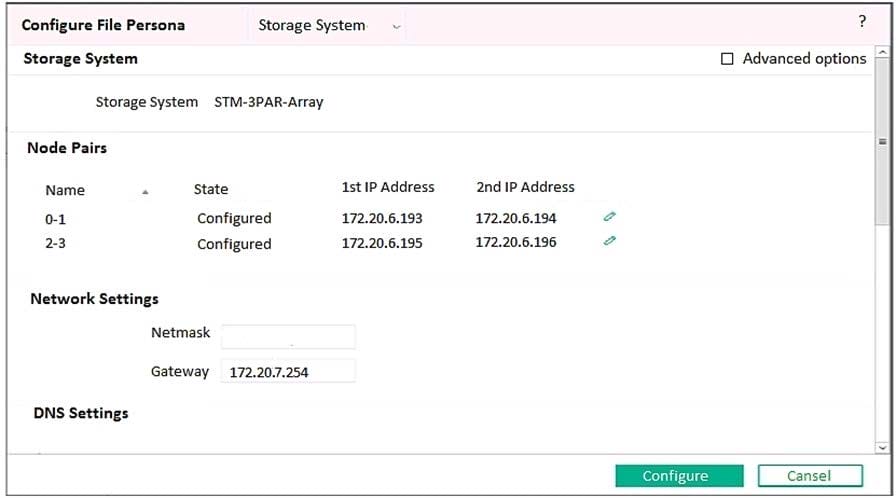

Refer to the exhibit.

An Integrator is configuring File Persona on a HPE 3PAR StoreServ 8440.

What is a valid Netmask for the configuration shown?

A. 172.27.97.61

B. 172.20.0.0

C. 255.255.255.0

D. 255.255.252.0

A storage integrator is installing an HPE MSA 2042 into a remote location as a part of warehouse automation solution. The site has no IT staff and warehouse employees will not be granted access to the location where the MSA will be installed. The customer is concerned about the inability to control individual AC power outlets connected to the MSA.

Which HPE power delivery equipment can be added to the solution to address these requirements? (Choose two.)

A. HPE G2 Metered and Switched PDU

B. HPE Standard Series G2 Basic PDU

C. HPE iPDU

D. HPE G2 Metered PDU
