DRAG DROP

Select all that apply.

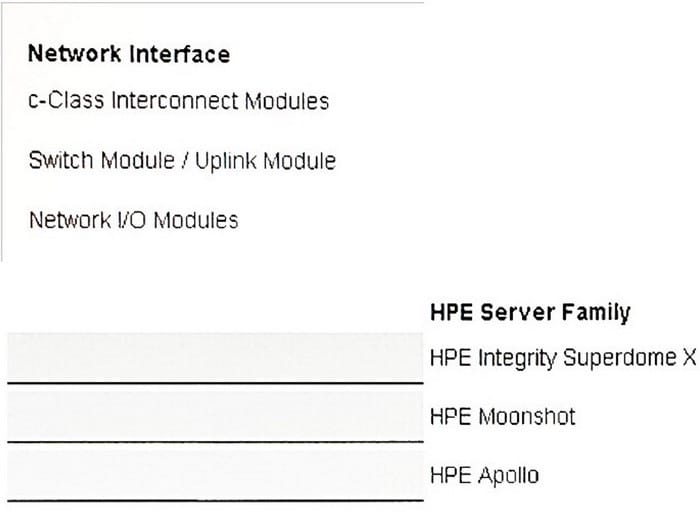

Click and drag the Network Interface on the left to match it with its HPE Server Family on the right.

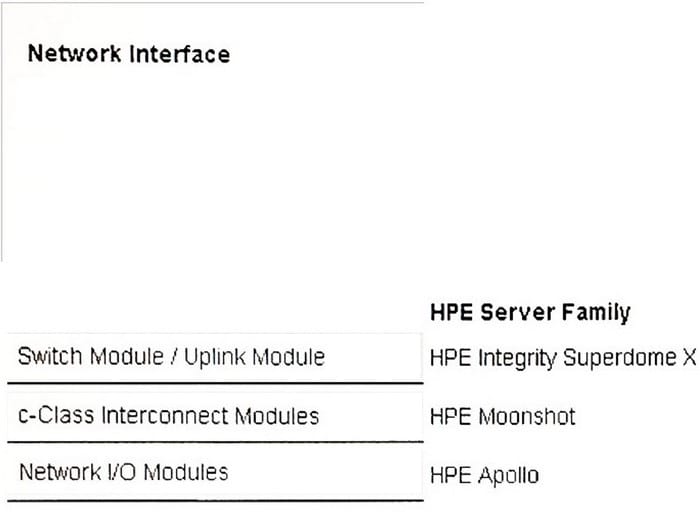

Select and Place:

View the Exhibit.

Refer to the exhibit. A customer has an HPE c7000 enclosure managed by HPE OneView with HP BL460c Gen9 servers in a vSphere cluster. The customer has multiple vLANs trunked from the top of rack (TOR) switches to the Virtual Connect modules in the enclosure. Due to network Access Control List (ACL) requirement and guidelines from the networking department, all network traffic should be forced to an upstream switch using the Virtual Connect "Private Network" feature.

The customer reports slow network response.

Which modification can the architect recommend to improve network performance?

A. Change the FlexFabric 20/40 adapter modules with Flex 10/100 modules.

B. Change the FlexFabric adapter modules with Flex-10 adapter modules.

C. Remove the Management network from the uplinks.

D. Put the vMotion network in a separate uplink set and disable "Private Network".

Which statement describes the availability metrics for an HPE system's high availability?

A. All standard HPE servers are designed for 99.9999% availability.

B. A system consisting of HPE standard servers with an availability of 99.9999% and a storage system with an availability of 99.99% will have a combined availability of 99.99999%.

C. A system with an availability of 99.99% can be expected to be in operational for 6 minutes or fewer per year.

D. A system with an availability of 99.999% will statistically not have an unscheduled downtime of more than 1 hour total in 10 years of operation.

An architect is choosing between 1GbE and 10GbE connectivity for an object storage solution. What is a valid reason to select 10GbE?

A. The customer's network infrastructure is based on QoS service.

B. The customer needs the system to recover quickly from a failure.

C. The customer needs the object storage servers to be able to locate random data on a disk more quickly.

D. The customer plans to increase the memory in the nodes in the future.

An architect has selected the FlexibleLOM option fur HPE XL230a compute trays, which will host an HPC application.

When should the architect select a FlexibleLOM adapter that supports Fibre Channel over Ethernet (FCoE)?

A. when the application uses parallel computing and relies on Fibre Channel to reduce latency for communications between compute nodes

B. when the application requires high throughput between processors and disk drives local to the same compute tray

C. when the application uses a Fibre Channel storage area network (SAN) for its shared storage solution

D. when the application requires additional bandwidth and needs a solution for load sharing traffic over multiple links

An architect explains a software-defined data center (SDDC) concept and its benefits to a customer. The customer indicates an interest and so the architect needs to verify whether the customer is ready to move to the SDDC. Which additional information should the architect obtain from the customer to verify this?

A. whether they already virtualize compute and storage resources

B. whether they have a disaster recovery plan implemented

C. whether they have standardized on a single vendor

D. whether they have a workplace mobility plan implemented

A customer has HPE BladeSystem BL460c Gen9 blades with two processors and 512GB of memory. The blades are running a MS-SQL database on a clustered 2TB SAS virtual volume that is exported from an HPE 3PAR StoreServ 8200. The customer reports that the MS-SQL database is performing poorly.

After extensive performance trending analysis, it is determined that the database front-end I/O requirements are unpredictable and often exceed 100,000 IOPs with latency in excess 30ms at critical times.

Which solution should the architect recommend to resolve the performance issue with consideration to cost and complexity?

A. Increase the memory on the blades to 2TB.

B. Install SSD drives local to the BL460c.

C. Install an HPE IO Accelerator on the blade.

D. Add Adaptive Optimization licensing.

A customer needs a mission critical SQL database. The customer has an HPE StoreServ and plans to use this as storage. The solution must meet the following requirements:

-240 logical cores (Hyper-Threading enabled)

-support for 6TB Memory

-16GB FC

-35TB RAID 1 storage

-

the ability for hardware partitioning to build different physical partitions and scale as the need for CPU and memory resources grows Which solution should the architect recommend?

A.

HPE Apollo 4200 with HPE ProLiant XL170r nodes

B.

HPE Superdome X with BL920s blades

C.

HPE ProLiant 980 Server

D.

HPE SL6500 with SL230s nodes

A customer is considering an object storage solution that will provide optimal rack density and will distribute the data with a very resilience across multiple servers and multiple sites. Which type of storage architecture should the architect design to provide the most cost-effective solution?

A. Direct Attached Storage (DAS)

B. Cloud Storage

C. Fibre Channel SAN

D. iSCSI/FCoE

A customer needs to use LACP to aggregate server network connections. The customer also needs to bond all FlexLOM connections in a single network across multiple switches.

Which networking feature should the architect recommend to meet the customer's needs?

A. Intelligent Resilient Framework

B. Transparent Interconnection of Lots of Links

C. Network Virtualization using Generic Routing Encapsulation

D. Shared Uplink Sets
