Aruba Data Center Network Specialist: HPE2-W09

Correct Answer: B

The solution is incorrect because enabling the REST interface in read-only mode is not a minimum requirement for setting up communications between the switch and NetEdit. NetEdit uses the REST interface to configure the switch, so it needs write access as well as read access. Therefore, enabling the REST interface in read-write mode is a minimum requirement for setting up communications between the switch and NetEdit.

Correct Answer: A

A schedule profile is a feature of ArubaOS-CX that determines the order and service of queues for transmission123. A schedule profile must be configured on every interface at all times23. The switch supports three scheduling algorithms: Guaranteed Minimum Bandwidth (GMB), Strict, and Strict EQS23. Strict scheduling gives absolute priority to a queue over other queues, regardless of the bandwidth allocation23. If the profile mixes strict priority scheduling with another scheduling algorithm, the strict priority queue must be the highest numbered queue23. Therefore, this is a rule for configuring schedule profiles on an ArubaOS-CX switch, and the correct answer is yes. For more information on schedule profiles and QoS, refer to the Aruba Data Center Network Specialist (ADCNS) certification datasheet1 and the QoS Guide for your switch model23.

Correct Answer: A

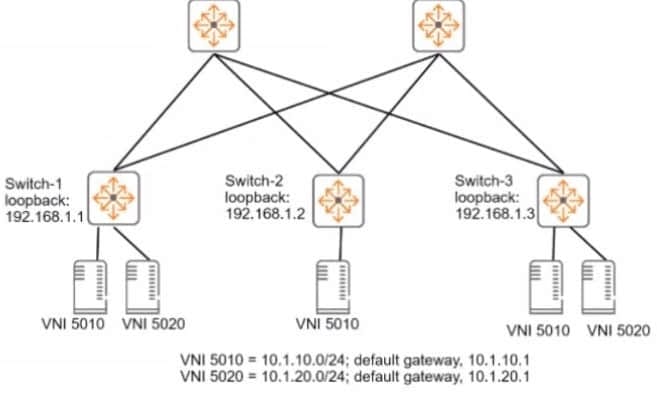

VXLAN is a feature of ArubaOS-CX that provides layer 2 connectivity between networks across an IP network1. VXLAN uses a 24-bit identifier called VXLAN Network Identifier (VNI) to segment the layer 2 domain1. VXLAN also uses a tunnel endpoint (VTEP) to encapsulate and decapsulate VXLAN packets1. A VXLAN interface is a logical interface that represents a VNI and is associated with a source IP address and a VRF1. To set up VXLAN without EVPN, you need to create VXLAN interfaces on each switch and configure static VTEP peers1. Based on the exhibit, Switch-1 needs to create two VXLAN interfaces, one with ID 5010 and one with ID 5020, to match the VNIs of the servers connected to it. Both VXLAN interfaces should use 192.168.1.1 as the source IP address, which is the loopback interface of Switch-1. Therefore, this is part of the process for setting up VXLAN to meet the requirements, and the correct answer is yes. For more information on VXLAN and EVPN, refer to the Aruba Data Center Network Specialist (ADCNS) certification datasheet2 and the EVPN VXLAN Guide for your switch model1.
