An ArubaOS switch has the routing table shown in the exhibit. A network administrator then enters this
command:
Switch (config) # ip route 10.1.8.0/24 10.1.12.8
Switch (config) # ip route 10.1.4.0/24 10.1.12.13
After the administrator enters this command, packets arrive that are destined for 10.1.12.8 and 10.1.12.13.
What does the switch do with this traffic?
A. It drops all of the traffic.
B. It forwards some of the traffic on VLAN 101 and some of the traffic on VLAN 4.
C. It forwards all of the traffic to 10.1.104.2.
D. It forwards some of the traffic to 10.1.101.1 and drops some of the traffic.
An ArubaOs switch has no passwords configured on it. The network administrator then enters these commands:

What is one task that the admin 1 user can log in to the switch and complete?
A. Mew interface status and statistics.
B. Back up a configuration.
C. Mew configuration files.
D. Enable an interface.
Two ArubaOS switches connect on a VLAN. and both enable OSPF on that VLAN. Which VLAN OSPF setting must match for the switches to become fully adjacent neighbors?
A. DR priority
B. area ID
C. cost
D. router ID

The switches in the exhibit use RSTP The network administrator needs to add Link 2. Why should the administrator configure Links 1 and 2 as a link aggregation?
A. to combine traffic statistics for the interfaces
B. to prevent a loop from occurring
C. to share traffic more evenly over both links
D. to automatically apply the settings already configured for Link 1 to Link 2

Switch-1 and Switch -2 have the Virtual Switching Framework (VSF) settings shown in the exhibits. The administrator then connects the switches together on the interfaces in the VSF link. The administrator first enables VSF on Switch-1 and confirms the reboot. After Switch-1 reboots, the administrator enables VSF on Switch-2 and confirms the reboot.
What happens?
A. Switch-1 and Switch-2 form a VSF fabric, and Switch-1 becomes the commander.
B. Switch-1 and Switch-2 fail to form a VSF fabric, and al interfaces on both switches remain up.
C. Switch-1 and Switch-2 form a VSF fabric, and all interfaces on Switch-1 are disabled.
D. Switch-1 and Switch-2 form a VSF fabric, and Switch-2 becomes the commander.
An ArubaOS switch has an LACP link aggregation with two links. How does the switch balance traffic over the links?
A. It assigns the first conversation (as defined by the load-balancing algorithm) to the first link, the second conversation to the second link, and so on, in a round-robin fashion.
B. It assigns the first packet to the first link, the second packet to the second link, and so on, in a round-robin fashion.
C. It assigns all traffic to the first link until the link reaches a bandwidth threshold; it then assigns traffic to the second link.
D. It assigns each conversation (as defined by the load-balancing algorithm) to a consistent link, based on a hash.
What is one requirement to combine Aruba 5400R zl2 Series switches in a Virtual Switching Framework (VSF) fabric?
A. One of the switches must be an Aruba 5412R switch, white the other member can be any switch in the 5400R series.
B. Both of the members must have two management modules.
C. The switches must operate in v3-modute only mode: any modules of an earlier version are automatically disabled.
D. The interfaces assigned to the VSF link must be pre-configured as part of a link aggregation.

Based on this ArubaOS switch output, what can a network administrator determine about the spanning tree topology?
A. Port 2 is an edge port
B. Port 3 will become the root port if the current root port becomes unavailable.
C. Switch-C is the root bridge of the topology.
D. Trk1 offers the lowest cost path to the common spanning tree root.


A network administrator has set up OSPF to enable communications between subnets 10.1.4.0/24 and 10.1.8.0/24. Swffch-4 is not receiving a route to 10.1.4.0/24.
What should the network administrator do to help fix this issue?
A. Fix the router IDs on al switches so that they are valid.
B. Enable OSPF on VLAN 4 on Switch-1.
C. Configure Switch-1 with a better DR priority on VLANs 100 and 101.
D. Verify that Switch-2 and Switch-3 are part of the backbone area.

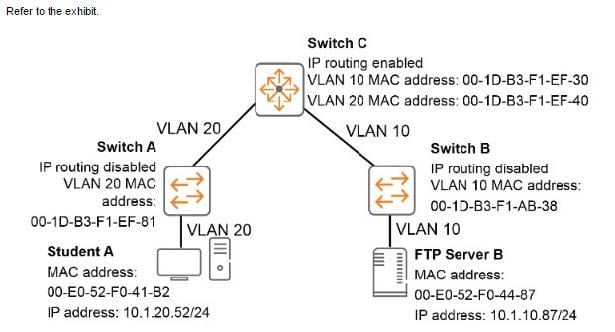

The Student A client needs to connect to FTP Server B. Student A sends the necessary ARP request and receives a reply. Which destination MAC address does the Student A client use in the FTP packet to FTP Server B?
A. 00-E0-52-F0-41-B2
B. 00-E0-52-F0-44-87
C. 00-1D-B3-F1-EF-81
D. 00-1D-B3-F1-EF-40
