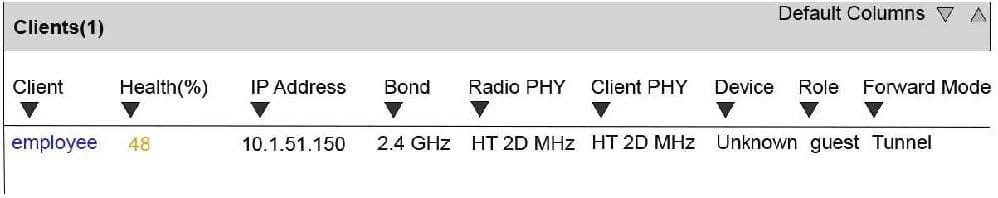

Refer to the exhibit.

The exhibit shows output from a Mobility Master (MM) dashboard. What does the health status indicate?

A. It takes the AP about twice as long to send data to the client as expected if all transmissions succeeded.

B. About half of the heartbeats the client sends reaches the Mobility Manager (MM).

C. The maximum data rate that 802.11ac supports is about twice as high as the data rate the client uses.

D. The client device only complies with about half of the rules in the endpoint health policy.

What is one difference between captive portal authentication and 802.1X authentication?

A. 802.1X authentication always authenticates the wireless client, while captive portal authentication always authenticates the wireless user.

B. 802.1X authentication occurs at Layer 2, while captive portal authentication occurs at Layer 3.

C. 802.1X authentication must use an LDAP server, while captive portal authentication can use a RADIUS server or an LDAP server.

D. 802.1X authentication is typically implemented without encryption, while captive authentication is often combined with WPA or WPA2.

A company has an Aruba Mobility Master (MM)-based solution. Where can network administrators look to monitor the health status of all controllers, APs, and clients?

A. the top banner

B. the MM Maintenance pages

C. the Performance dashboard

D. the Potential Issues dashboard

A company plans to deploy a Mobility Master (MM). The MM will manage 50 Mobility Controller (MC) appliances that will control a total of 700 APs, and 10 Virtual Mobility Controllers (VMCs) that will control a total of 200 APs.

How many MM licenses does the company require?

A. 60

B. 210

C. 900

D. 960

A network administrator configures an Aruba Mobility Master (MM)-based solution to provide wireless access to employees. The solution must meet these criteria:

1.

Authenticate users to a network RADIUS server

2.

Enforce different Aruba firewall rules based on the user department

How can the administrator meet these criteria in the simplest way?

A. Have the RADIUS server assign users in different departments to different VLANs. Apply firewall policies based on IP ranges.

B. Have the RADIUS server send different roles for users in different departments. Apply role-based firewall policies.

C. Create multiple zones on the MM. Assign different departments and sets of firewall policies to different zones.

D. Create a different WLAN and SSID for each department. Apply different firewall policies to each WLAN.

Refer to the exhibits.

Exhibit 1

Exhibit 2

A network administrator configures a guest WLAN on an Aruba Mobility Master (MM)-based solution. The exhibits show some of the settings for this WLAN. Which settings must the administrator configure on each Mobility Controller (MC) at the device level for this configuration to function properly?

A. an IPsec preshared key

B. CPSec certificates

C. a portal page

D. VLAN 99 IP settings

When an Aruba solution uses AirMatch, which device generates the channel and power plan for an AP?

A. the AirWave Management Platform

B. the Mobility Master (MM)

C. the Mobility Controller (MC) for the AP

D. the AP itself

A network administrator monitors an Aruba Mobility Controller with Aruba AirWave and sees the configuration status is Error. What should the administrator conclude?

A. AirWave checks the controller configuration and detects a syntax error.

B. AirWave determines that the controller configuration does not match the template for its group.

C. AirWave has a communication issue with the controller and cannot check the configuration.

D. AirWave detects a mismatch with the controller configuration and software version.

Which improvement does ArubaOS 8 offer for the Client Match feature?

A. It checks the compliance posture for Bring Your Own Device (BYOD) endpoints to improve security.

B. It enables the application of unique CM rules for specific client types.

C. It checks client behavior against a wider array of rules to detect more DoS attacks and intrusion attempts.

D. It offloads client load balancing decisions to local controllers.

Refer to the exhibit.

Which role must AP1 play?

A. Instant AP (IAP)

B. Mesh Point AP

C. Mesh Portal AP

D. Remote AP (RAP)
