HOTSPOT

Click on the colored box that corresponds with the line that best represents Unicast traffic flow.

Hot Area:

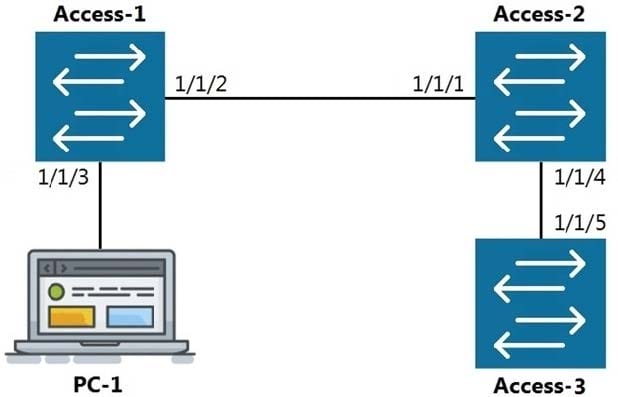

Refer to the exhibit.

LLDP

The command show LLDP neighbor-info gets typed into Access-1. All switches are Aruba OS-CX switches.

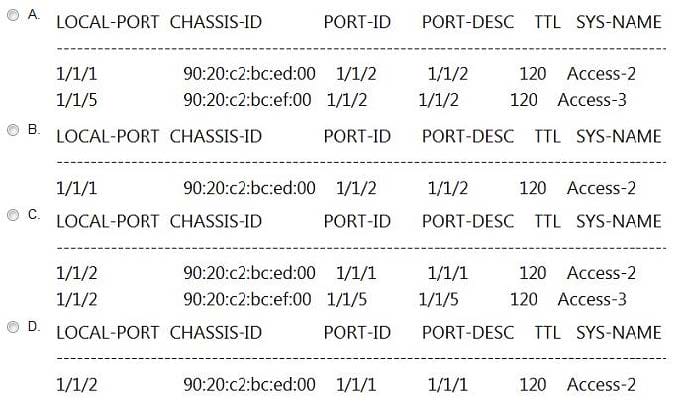

What is the output of this command?

A. Option A

B. Option B

C. Option C

D. Option D

Refer to the exhibit.

All four switches in the diagram have been configured with the region name "Aruba1".

What two other MSTP configurations must match for switches within the same MST region? (Choose two.)

A. MST region type

B. MST Bridge ID

C. MST version number

D. MST revision number

E. MST VLAN to instance mapping

Refer to the exhibit.

The above command was applied to an Aruba AOS-CX 6300M 24-port switch with 4-port SFP56 uplinks. All ports are set as access switchports.

Which ports carry VLAN 1 traffic?

A. 1/1/8, 1/1/10, 1/1/5-1/1/24

B. 1/1/1-1/1/28

C. 1/1/1-1/1/24

D. 1/1/8-1/1/10, 1/1/5-1/1/28

What is the Link Layer Discovery Protocol?

A. a discovery protocol used between Layer 3 devices to determine routes within a single autonomous system

B. a standardized IPv6 neighbor discovery protocol used to replace the ARP and broadcast mechanism used in IPv4

C. a standardized protocol for communicating directly-connected device information and capabilities.

D. an Aruba proprietary discovery protocol supported in all Aruba switches along with Cisco Discovery Protocol or CDP

Refer to the exhibit.

What commands will successfully enable the SVI for vlan 100 on interface 1/1/1 to produce the results displayed in the command show ip interface brief in the exhibit below?

A. Access-1(config)# interface 1/1/1Access-1(config-if)# routingAccess-1(config-if)# interface vlan 100Access-1(config-if-vlan)# ip address 10.1.1.1/24

B. Access-1(config)# interface 1/1/1Access-1(config-if)# vlan trunk permit vlan 100Access-1(config-if)# interface vlan 100Access-1(config-if-vlan)# ip address static 10.1.1.1/24

C. Access-1(config)# interface vlan 100Access-1(config-if-vlan)# ip address 10.1.1.1/24

D. Access-1(config-if)# vlan 100Access-1(config-vlan)# ip address 10.1.1.1/24

The following command is issued:

Switch# checkpoint rollback start

What is the result?

A. The command will fail because rollback commands must be issued from global-config mode.

B. The switch will revert the running-configuration to the checkpoint called “start” without a reboot.

C. The command will fail because it is incomplete.

D. The switch will use the checkpoint “rollback” as the starting configuration on next reboot.

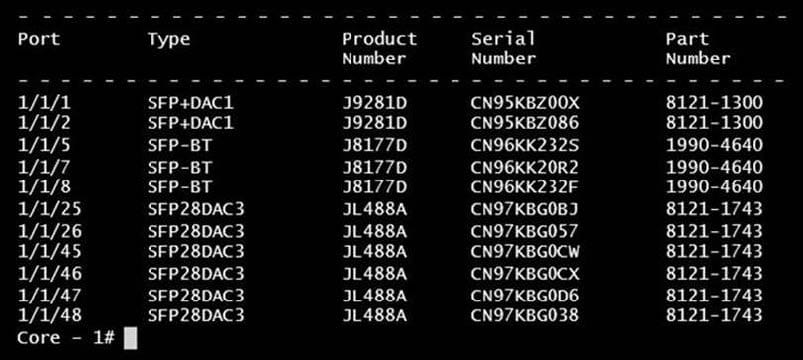

Refer to the exhibit.

What command (output shown above) gives the optics serial number and part number information?

A. show interface physical

B. show interface transceiver

C. show inventory

D. show interface optics

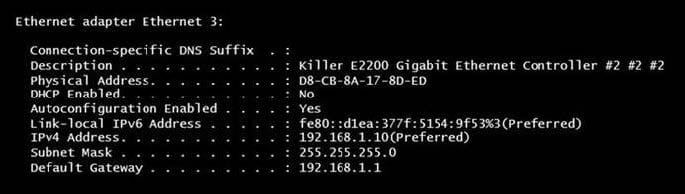

Refer to the exhibit.

What is the correct binary conversion of the last two hexadecimal characters of the physical address?

A. 1101 1000

B. 1110 1101

C. 1001 1111 0101 0011

D. 1000 1101 1110 1101

Which option correctly describes a WAN network?

A. a group of computer resources that communicates between geographically separate location

B. the connection between two separate buildings in the same campus

C. a network of devices over long distances but limited to within a single ISP

D. compute resources that are networked locally over wireless
