Refer to the exhibit.

An administrator implements AP licensing on a Mobility Master (MM). Each campus is responsible to purchase its own AP licenses.

There are 900 AP licenses deployed in the global pool

There are three dedicated pools.

From the global pool, 300 AP licenses are assigned to each dedicated pool.

Network engineers at CampusA want to deploy an additional 100 APs. Currently all of the AP licenses in

CampusA and CampusB are allocated, but only 200 of the AP licenses m CampusC are allocated.

What can the administrator do to add capacity for CampusA in alignment with campus policies?

A. Allow CampusA to share from the CampusC pool.

B. Add 100 more AP licenses and assign them to the CampusA pool.

C. Move 100 licenses from the CampusC pool to the global pool.

D. Add 100 more AP licenses to the global pool.

An administrator deploys an AP at a branch office. The branch office has a private WAN circuit that provides connectivity to a corporate office controller. An Ethernet port on the AP is connected to a network storage device that contains sensitive information. The administrator is concerned about sending this traffic in clear-text across the private WAN circuit.

What can the administrator do to prevent this problem?

A. Redirect the wired port traffic to an AP-to-controller GRE tunnel.

B. Convert the campus AP into a RAP.

C. Enable AP encryption for wired ports.

D. Enable IPSec encryption on the AP's wired ports.

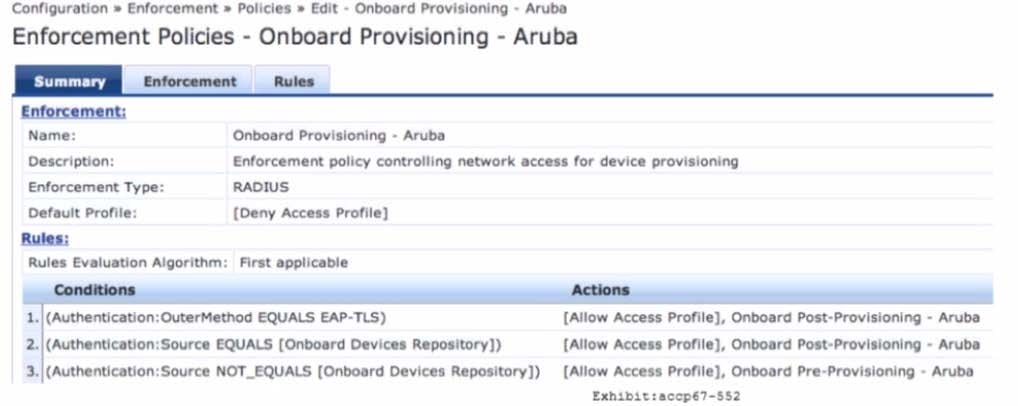

Refer to the exhibit.

An employee connects a corporate laptop to the network and authenticates for the first time using EAPTLS. Based on the Enforcement Policy configuration shown, which Enforcement Profile wilt be sent?

A. Deny Access Profile

B. Onboard Post-Provisioning - Aruba

C. Onboard Device Repository

D. Onboard Pre-Provisioning - Aruba

Which statement is true about the databases in ClearPass?

A. Entries in the guest user database do not expire.

B. A Static host list can only contain a list of IP addresses.

C. Entries in the guest user database can be deleted.

D. Entries in the local user database cannot be modified.

E. The endpoints database can only be populated by manually adding MAC addresses to the table.

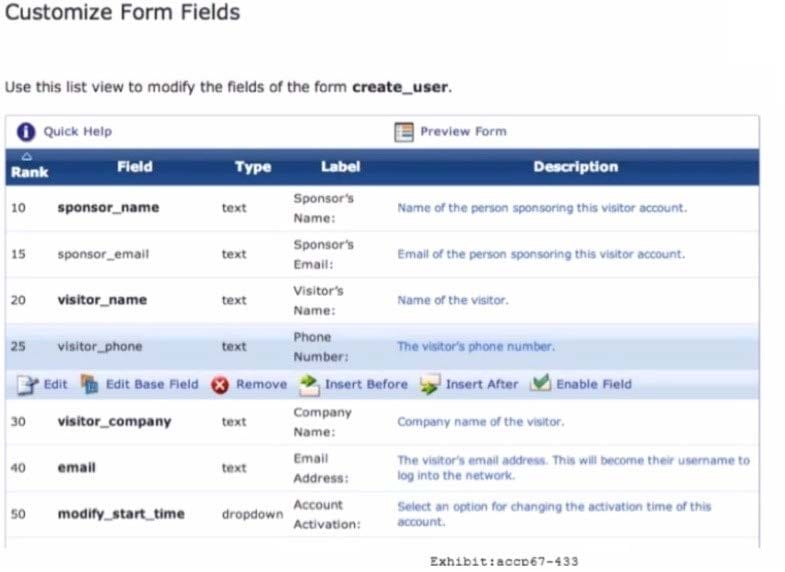

Refer to the exhibit.

Based on the configuration of me create_user form shown, which statement accurately describes the status?

A. The email field will be visible to guest users when they access the web login page.

B. The visitor_company field will be visible to operators creating the account.

C. The visitor_company field will be visible to the guest users when they access the web login page.

D. The visitor_phone field will be visible to the guest users in the web login page.

E. The visitor_phone field will be visible to operators creating the account.

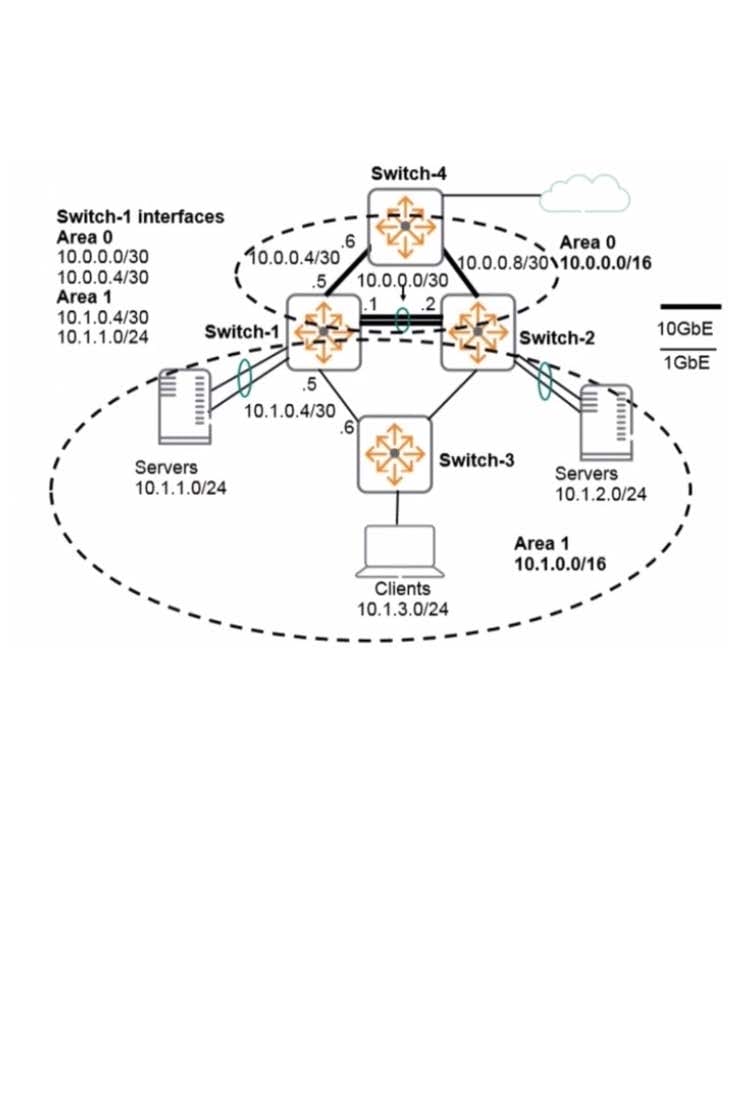

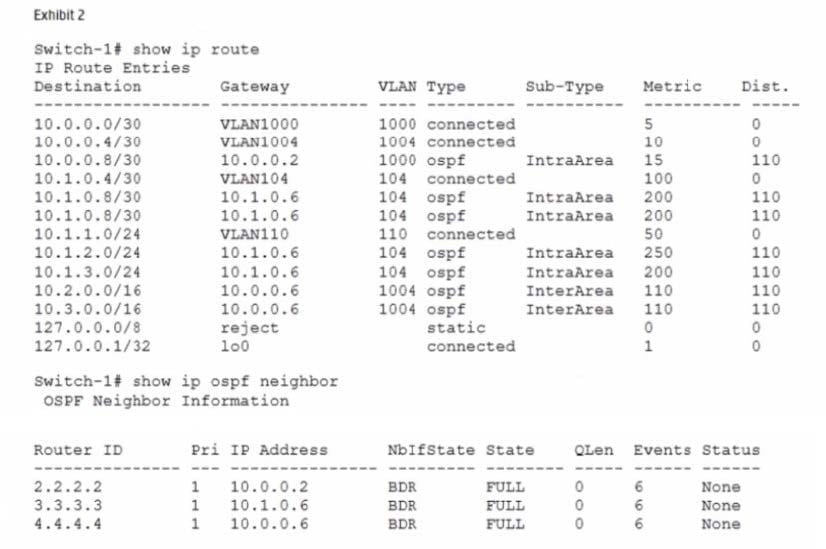

Refer to the exhibit.

Traffic between the servers m Area l takes a less optimal path rather than the link associated with VLAN l OOO, subnet 10.0.0.0/30. Based on the exhibits, why is this the case?

A. The metric on the VLAN 1000 interface is too low.

B. Switch-1 and Switch-2 cannot achieve adjacency on VLAN 1000 due to mismatches.

C. OSPF routing switches choose the best intra-area routes based on Area 1 links only.

D. The link between Switch-1 and Switch-2 has gone down.

A university wants to deploy ClearPass with the Guest module. They have two types of users that need to use web login authentication. The first type of users are students whose accounts are in an Active Directory server. The second type of users are friends of students who need to self-register to access the network.

How should the service be setup in the Policy Manager for this Network?

A. Guest User Repository and Active Directory server both as authentication sources

B. Active Directory server as the authentication source, and Guest User Repository as the authorization source

C. Guest User Repository as the authentication source, and Guest User Repository and Active Directory server as authorization sources

D. Either the Guest User Repository or Active Directory server should be the single authentication source

E. Guest User Repository as the authentication source and the Active Directory server as the authorization source

The administrator expects the AP to connect to a cluster, but the AP tails to connect. The administrator examines the configuration of an AP from apboot mode shown in the exhibit. What can the administrator determine about the configuration of the AP?

A. The AP is configured to terminate on a non-cluster Mobility Controller.

B. The AP is configured as a RAP to terminate on a stand-alone controller.

C. The AP is configured as a RAP to terminate on a Mobility Master.

D. The AP is configured to terminate on a Mobility Controller in a cluster.

An administrator needs to authenticate users connected to an ArubaOS Switch where the switch authenticates the user, assigns the firewall policies to the user, and processes some of the users' traffic. Which connection method should the administrator configure on the ArubaOS-Switch?

A. Per-user tunneled node

B. Split-tunneled mode

C. Per-port tunneled node

D. VLAN tunneled mode

An administrator deploys Aruba Mobility Controller 7005s to a company's branch offices. The administrator wants to disable the console port to prevent unauthorized access to the controllers.

Which controller command should the administrator use to implement this policy?

A. no console enable

B. no mgmt-user console

C. mgmt-user console-block

D. console disable
