An archinect needs lo plan a Mobility Master (MM) solution for a customer Requirements include:

*

redundancy for the MM

*

redundancy for the MCS (seamless failover if up to one fails)

The wireless network consists of

*

total APs - 300

*

total wireless devices = 20,000

*

total MCs = 10

The customer wants the most cost-effective plan that meets me requirements.

Which plan for MMs should the architect select?

A.

1 MM-HW-5K and 1 MM-VA-1K

B.

2 MM-HW-5K

C.

1 MM-HW-5K and 1 MM-HW-1K

D.

2 MM-HW-1QK

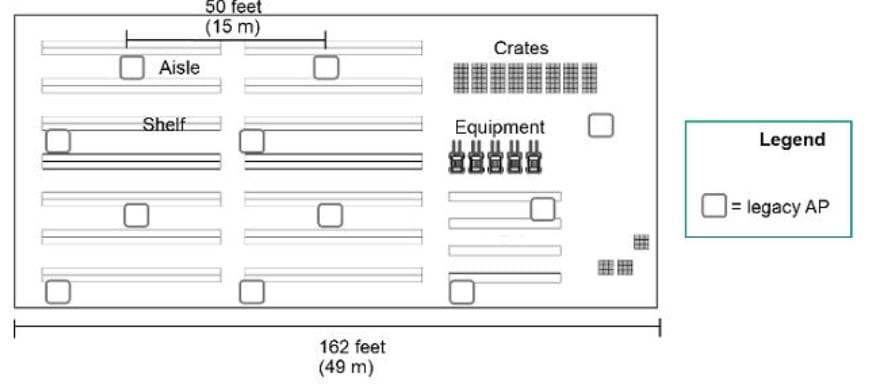

Refer to the exhibit.

The exhibit shows the current AP deployment In a warehouse that stores frozen food goods:

*

APs are mounted on the ceiling, which is 15 feet (4.6 m) high.

*

Shelves are 12 feet (3.7 m) high and are typically fully stocked.

This customer indicates that their current wireless performance is inadequate.

What should the network architect include in the new solution to resolve this issue?

A.

APS deployed on the ceiling in the same current locations, out with dual 5GHz radios

B.

APs deployed on the ceiling in each aisle, due to the high absorption between aisles

C.

APs deployed with directional antennas on the ceiling, due to the high 15-foot callings

D.

APs deployed with directional antennas and a hybrid wall-mount, ceiling-mount design

A customer requires new MCs for a large multi-site network with about 600 AP-535S ana 30,000 wireless clients. The customer requires redundancy for the MCs, with each MC being able to handle the full toad in a failover situation The

network should be able to sustain the loss of a controller with stateful failover within seconds. It should be able to undergo software upgrades without downtime.

The architect has recommended two 7240XM MCs. The customer points out that 7220 MCs can support their requirements and wonders why the architect recommended me 7240XMS.

What should the architect explain?

A. The 7240XM MCs have better redundant power supplies and fan tray component capabilities than 7220 MCs.

B. The 724QXM MCs can support full CPSec tunnels with this number of APs. while the 7220 MCs cannot.

C. The 7240XM MCS provide a higher number of concurrent GRE tunnels to support 600APs with MCS in L2 clustering.

D. The 7240XM MCs are required to support the large number of wireless clients in this network

A customer has multiple medium and large branch sites, eacri of which requires between S ana 16 APs and supports between 200 and 600 wireless clients, Every branch site has an Internet connection, which it uses to reach the central data

center. The customer would prefer the WAN links to be optimized in the solution.

Different use cases require SSID's for tunneled traffic from remote sites to central location, traffic that must remain local on the remote site, and traffic which would need to egress out from remote site Internet connection.

Which branch office solution best meets the customer needs?

A. lAPs with Aruba central

B. RAPs and branch office controllers

C. IAPs with branch office controllers

D. CAPS and branch office controllers

Compare the scenarios below. For which scenario do AP-575S meet the needs?

A. The customer needs APs for an Indoor nigh density environment In which tne customer prefers dual 5GHz operation.

B. The customer needs APs for an indoor stadium that requires overhead coverage and directional antennas.

C. The customer needs to mount APs in an outdoor area, but that area only has fiber cable available,

D. The customer needs APS mounted to a concrete building exterior to provide coverage in a 90 foot (27m) radius from the building.

The architect plans to recommend an upgrade to Aruba CX switches What is one requirement for the new solution that justifies this recommendation?

A. the requirement to support secure IPsec tunneling at the aggregation layer

B. the requirement to support larger ARP tables at the aggregation layer

C. the requirement to support smart Rate at the access layer

D. the requirement to support tunneled-node at the access layer

Refer to the exhibit.

Exhibit: A49.01114316-102

The architect has determined that this building requires two 10GPE links to the data center.

What is the correct transceiver type for the links?

A. 3FP+ LRM with mode conditioning

B. SFP+ SR

C. SFP+ LRM

D. SFP+ LR

A customer needs an AP for an indoor lecture nail mat is about 82 feet (25 m) by 32 feet (25 m) and has 300 seats. The ceiling height is 15 feet The expected take rate is 100 percent.

The network needs to support the student laptops, which all support S02.Hac and some support 802.11ax standard.

The customer would like to obtain as many usable cells as possible with as few APs as possible.

Which of these APs meets the requirements?

A. AP-335

B. AP-S15

C. AP-345

D. AP-535

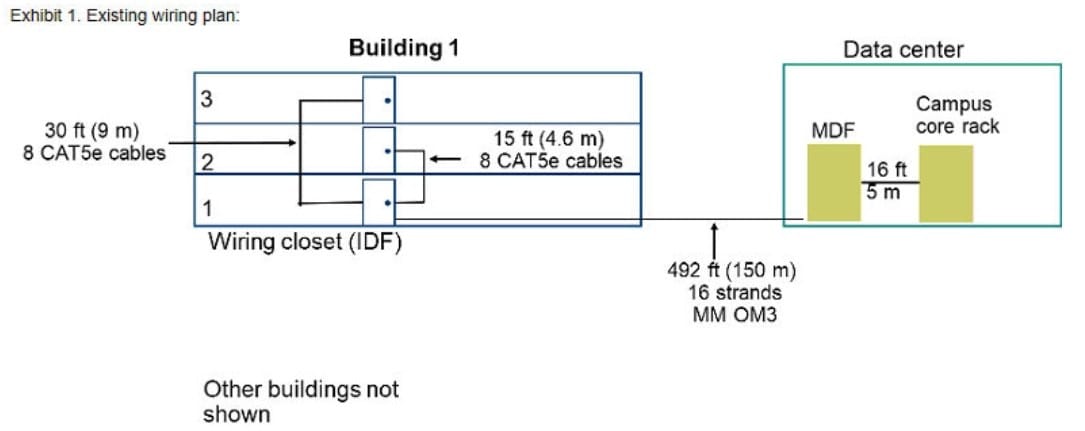

Refer to exhibit.

A customer has a building that needs a switch upgrade. The customer would like at least 20Gbps for the uplink bandwidth out of each closet. The building wiring plan is shown in Exhibit i. The customer will not consider any cabling upgrades at this point. The current proposal is shown in Exhibit 2.

Which correction must the architect make to the proposal to meet the customer requirements?

A. Add an aggregation layer, and connect wiring closet switches to the aggregation layer on Smart Rate pons.

B. Add a mode conditioning cable for each link between the wiring closet switches and the network core.

C. Change the SR transceivers tor each link between the wiring closet switches and me network core to LRM transceivers

D. Add an aggregation layer, and connect wiring closet switches to the aggregation layer with SFP+- SR transceivers

A nospltai needs an upgrade to 802.11ax for its wireless network, which needs to provide complete coverage The hospital has a concrete exterior and uses drywalls lor all of the interior walls with a few exceptions as mandated for safety The building has 10fool (3 m) ceilings. The hospital prefers to avoid the deployment of APs in rooms if possible. Exceptions include reception areas and lounges. The wireless network must support wireless medical devices, voice communicators for medical star, laptops in nursestations, medical staff tablets, and visitor and patient personal devices. All of these devices support both the 2.4GHz

and5GHz band.

The exhibits below show one wing of one floor of the hospital. This wing is about 2S.Q0D square feet {2GQQ sq, m). The unlabeled rooms along the bottom of the wing are patient rooms' other rooms such as lounges and the MR] room are

labeled. This area has:

*

up to SO concurrent patients and visitors, who might have up to two devices

*

about 200 medical and other types of wireless devices

The architect has already planned to place APs in stairwells on another floor.

Which AP plan for this wing of this floor meets the customer needs?

A.

Option A

B.

Option B

C.

Option C

D.

Option D
