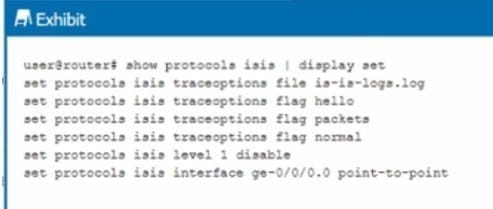

Click the Exhibit button

You are capturing logs to troubleshoot an issue with IS-IS; however, the logs are increasing in size too quickly.

Referring to the exhibit, which configuration statement would solve this problem?

A. set protocols isis traceoptions flag hello detail

B. set protocols isis traceoptions file files 10

C. delete protocols isis traceoptions flag normal

D. delete protocols isis traceoptions file is-is-logs.log

A user has entered the sequence of commands shown in the exhibit

At which level of the configuration hierarchy would the user be after typing the exit command?

A. [edit]

B. [edit interfaces ge-0/0/0]

C. [edit interfaces ge-0/0/0 unit 01 ]

D. [edit interfaces]

Which command produced the output shown in the exhibit?

A. Show interfaces summary

B. Show interfaces filters

C. Show interfaces extensive

D. Show interfaces terse

Exhibit:

Which statement is true about the command shown in the exhibit?

A. There needs to be a ; after top for the command to be accepted as a valid command.

B. Only top should be used, no other options are allowed on the same line.

C. The command shown in the exhibit would be accepted as a valid command.

D. If you replace top with up command, it becomes valid.

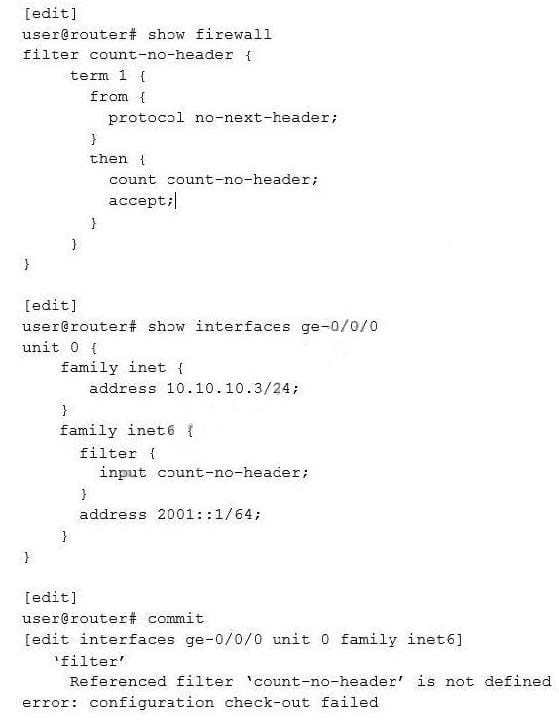

Refer to the exhibit.

You asked to create a firewall filter to count IPv6 packets that arrive with a no next header value. As shown in the exhibit, you have created and applied the count-no-header firewall filter to the ge-0/0/0 interface. The commit operation fails. What is causing this problem?

A. IPv6 interfaces do not support firewall filters.

B. The filter name must be different than the counter name.

C. The firewall term does not include inet6 in the from statement.

D. The firewall family is not correct.

What are two benefits realized by the disaggregated Junos? (Choose two.)

A. There is increased flexibility to use different control plane versions.

B. The Junos VM becomes hardware-independent and can be deployed on any hypervisor without modification.

C. The architecture facilitates programmability through provisioning the control plane, the data path, and the platform APIs.

D. The platform drivers and forwarding engine are removed from the control plane to increase performance.

Referring to the exhibit.

Which OSPF feature would connect Area 2 to Area 0?

A. route summarization

B. equal-cost multipath

C. virtual link

D. database synchronization

Which two commands would you use to reset the candidate configuration to the active configuration? (Choose two.)

A. rollback 0

B. rollback 1

C. rollback 2

D. rollback

What is the maximum number of rollback files a Junos device can store?

A. 5

B. 10

C. 49

D. 50

What are two functions of the transport layer? (Choose two.)

A. data integrity

B. segmentation

C. flow control

D. packet forwarding
