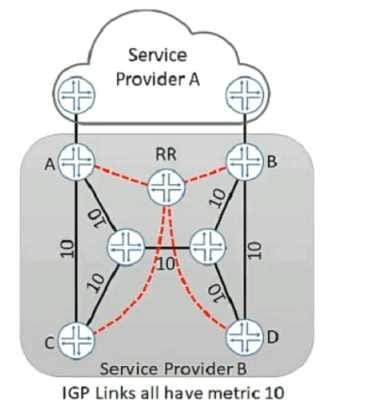

Exhibit:

You work for service provider B that wants to implement a hot potato routing policy on the network so that router C uses link C-A to reach service provider A's advertised routes and router D uses link D- B to reach Service Provider A's advertised routes Currently traffic from router C is traversing the core to exit the network on router B . Referring to the exhibit, what are two design actions that would satisfy the requirements? (Choose two.)

A. Implement BGP-ORR

B. Configure new IBGP neighbors between routers C and A and routers D and B

C. Implement BGP-LS

D. Configure the route reflector to send multiple copies of a route learned from different IBGP peers to its clients.

You are designing a service provider core network As part of the design, you must ensure that the MPLS

network utilizes the traffic engineering database (TED) for path selection and resiliency. You have chosen

OSPF as the IGP for your design.

In this scenario which statement is correct?

A. You must enable traffic engineering in OSPF to populate the TED.

B. OSPF cannot be used to populate the TED.

C. You must disable traffic engineering in OSPF to use the TED.

D. OSPF populates the TED by default.

You are asked to design a DDoS prevention system to help mitigate denial-of-service attacks that target your customers. The management group wants to know the effect FlowSpec may have on current network operations if it is implemented as a solution. In this scenario which two statements are correct? (Choose two )

A. FlowSpec can block traffic based on stateful flow information.

B. FlowSpec can block traffic based on the source address.

C. FlowSpec requires Jflow implementation and licensing.

D. FlowSpec can block traffic based on the destination address.

You are creating a design proposal for a new service provider network using MX Series devices. You must design an OoB management network that is isolated from the production network. In this scenario which two statements are correct? (Choose two )

A. The management network should connect to a separate network infrastructure.

B. The FXPO interface can be used to connect devices to the management network.

C. The management network should connect to the production network infrastructure.

D. You must use the console port to access the devices on the management network.

Your backbone network has a single dark fiber between two backbone sites within the same metro area.

Currency this link is being used as a point-to-point 100ObE link between the routers using gray optics. The

link has been experiencing high utilization and you are asked to propose network design changes to

increase capacity across this network segment.

Which statement is true in this scenario?

A. New optical interfaces will need to be added to the routers.

B. Interfaces need to be reconfigured for 200GbE.

C. Gray optics can be used to increase capacity by enabling additional wavelengths.

D. Enabling MPLS will increase capacity due to statistical multiplexing.

You are asked to design a Cloud CPE solution that can dynamically add new sites to an existing MPLS Layer 3 VPN. The CPE for each new site must support the service chaining of multiple VNFs. Which Juniper Networks Cloud CPE solution supports these requirements?

A. Distributed Cloud CPE - Managed Internet

B. SD-WAN

C. Centralized Cloud CPE

D. Distributed Cloud CPE - Option 1

You are designing an EVPN data center solution with VXLAN. Which two statements are true in this scenario? (Choose two )

A. The original MAC address is prepended to a VXLAN VNI.

B. The original MAC address is replaced by a VXLAN VNI.

C. The original MAC address is encapsulated within the VXLAN frame.

D. The original MAC address is advertised to remote PEs.

You work for a service provider that offers L3VPN services to its customers. While designing L3VPN

solutions for customers, you sometimes need to share routes between routing instances as part of the

design.

What are two reasons for sharing routes between routing-instances? (Choose two)

A. so customers can reach the Internet

B. to allow the service provider's OoB network to be reachable by customers

C. so customers can reach the service provider's public cloud infrastructure

D. to support network address translation

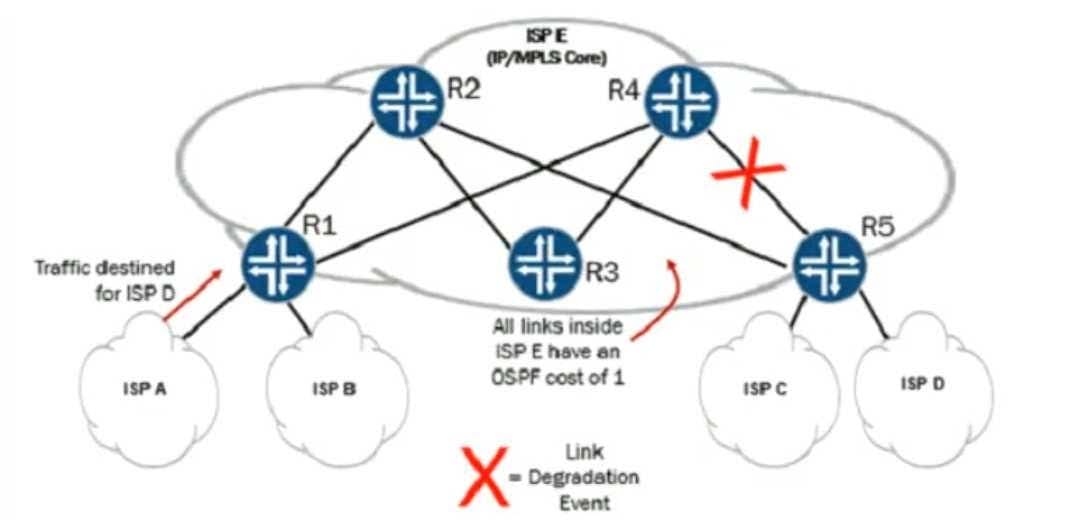

Exhibit: Within ISP E, R1 is load-balancing traffic destined to ISP D over the R1-R2-R5 and R1-R4-R5 paths. At some point, a link degradation event occurs in the network as shown in the exhibit. You want R1 to rapidly learn of the path failure.

A. Adjust the OSPF hello timer to a subsecond value between R1 and R4.

B. Enable Bidirectional Forwarding Detection between R1 and R4.

C. Enable Bidirectional Forwarding Detection between R4 and R5.

D. Adjust the OSPF hello timer to a subsecond value between R4 and R5.

You work for an organization providing hosting services for customer application VMs Traditional, your organization maintained isolation between customer workloads by assigning unique VLAN IDs to each customer network. Your organization is approaching the upper limit of 4094 VLANs available to uniquely identify customer networks You need to alleviate this limitation and provide more than 4094 unique network identifiers. Which technology would satisfy these requirements?

A. VXLAN

B. MPLS

C. MP-BGP

D. EVPN
