You are a service provider and have multiple customers in a building.

You are installing a new switch that can host all of your customers. However, you would like to ensure that one customer cannot see or broadcast to another customer.

You would also like to have them use a common gateway IP address from the building.

What should be used to provide this access?

A. VLAN

B. private VLAN

C. filter-based VLAN

D. Layer 2 tunneling

Click the Exhibit button.

Your company has connections to two ISPs. Each ISP is in a separate routing instance. You need to advertise the 0.0.0.0/0 prefix from both ISPs to all your devices.

Referring to the exhibit, which statement is true in this scenario?

A. You must create and apply match input filters on interfaces ge-0/0/2 and ge-0/0/3.

B. You must create a policy to allow traffic from your network to each ISP.

C. You must create an internal routing instance for your network.

D. You must create a RIB group to share interface routes.

You are concerned that someone from outside the company could use an open conference room port to access the network.

Which feature should you use to address this concern?

A. persistent MAC learning

B. 802.1X

C. DHCP snooping

D. MAC limiting

What is a characteristic of OSPF ASBRs?

A. ASBRs transmit routing information between the backbone and other areas.

B. ASBRs cannot be part of the backbone and another area at the same time.

C. ASBRs inject routing information from outside the OSPF domain.

D. ASBRs link two OSPF areas.

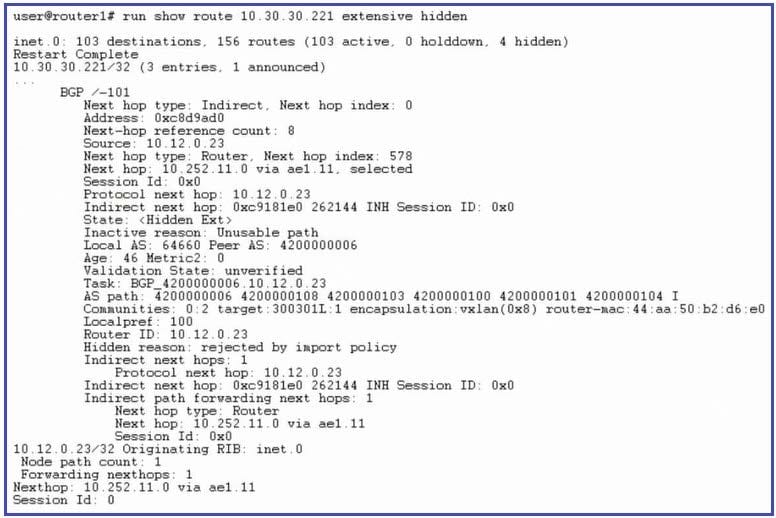

Click the Exhibit button.

Why is the route shown in the exhibit hidden?

A. The router cannot reach the protocol next hop.

B. An MPLS LSP is unavailable.

C. The router is being rejected through an import policy.

D. The route is being rejected through an export policy.

Exhibit:

You have an ESXi host that is connected to ge-0/0/23 on a Juniper EX Series switch. You added a new VM that will also use the same ge-0/0/23 interface. Unfortunately, the new VM is not able to reach external devices.

Referring to the exhibit, which command would solve this problem?

A. set vlans default switch-options interface-mac-limit 4

B. set vlans default switch-options interface-mac-limit 5

C. set switch-options interface ge-0/0/23.0 interface-mac-limit 3

D. clear ethernet-switching recovery-timeout interface ge-0/0/23.0

Click the Exhibit button.

Which statement is true about the configuration shown in the exhibit?

A. Only the next-hop-self export policy will be evaluated when routes are sent to neighbor 172.30.1.1.

B. Both the adv-aggregate and adv-custom export policies will be evaluated when routes are sent to neighbor 172.30.2.1.

C. Both the adv-aggregate and next-hop-self export policies will be evaluated when routes are sent to neighbor 172.30.1.1.

D. Only the adv-custom export policy will be evaluated when routes are sent to neighbor 172.30.2.1.

You have a VLAN with two devices acting as a single gateway for hosts.

In this scenario, which protocol would provide a single gateway IP for the hosts?

A. VRRP

B. OSPF

C. IS-IS

D. BGP

By default, how long will a learned MAC address be retained in the bridge table on an EX Series switch?

A. 600 seconds

B. 3600 seconds

C. 300 seconds

D. 1800 seconds

What are two interarea OSPF LSA types? (Choose two.)

A. Type 1 router LSAs

B. Type 2 network LSAs

C. Type 3 summary LSAs

D. Type 4 ASBR summary LSAs
