Correct Answer: BD

When using security profiles to limit system resources in Juniper logical systems:

No Resource Specification (Answer B): If a resource limit is not specified for a logical system, no specific amount of system resources is reserved for it. Instead, the logical system competes for resources along with others in the system, up to

the maximum available. This allows flexible resource allocation, where logical systems can scale based on actual demand rather than predefined limits. Multiple Logical Systems per Security Profile (Answer D): A single security profile can be

applied to multiple logical systems . This allows administrators to define resource limits once in a profile and apply it across several logical systems, simplifying management and ensuring consistency across different environments.

These principles ensure efficient and flexible use of system resources within a multi-tenant or multi-logical- system environment.

Correct Answer: AC

Address persistence ensures that the same NAT IP address is used for all sessions originating from a single source IP. Persistent NAT maintains connections for applications needing multiple sessions, like VoIP. Additional details are available in Juniper NAT Documentation.

For applications that require multiple TCP sessions for the same application session (such as VoIP or certain online games), the SRX device needs to handle NAT properly to maintain session continuity. Here's what helps: Address Persistence (Answer A): Address persistence ensures that multiple sessions initiated by the same internal host are mapped to the same external IP address. This is crucial for applications that use multiple TCP sessions to maintain a stateful connection with the external server. Command Example: bash Copy code set security nat source persistent-nat address-persistence Persistent NAT (Answer C): This feature allows the external server to initiate new connections to the internal client using the same NAT translation. It's essential for applications that require consistent NAT mappings across multiple sessions. Command Example: bash Copy code set security nat source persistent-nat permit target-host-port These features ensure that applications with multiple TCP sessions work seamlessly across NAT.

Correct Answer: D

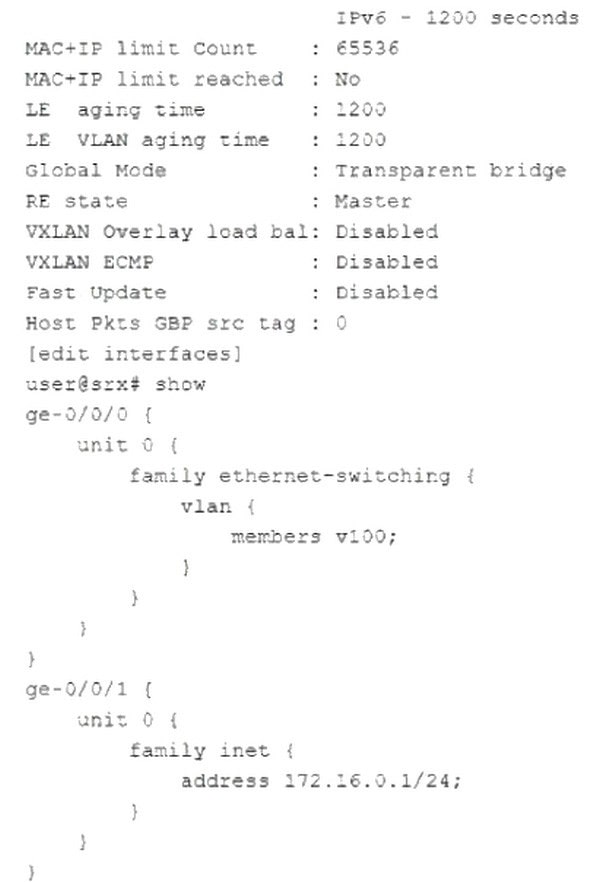

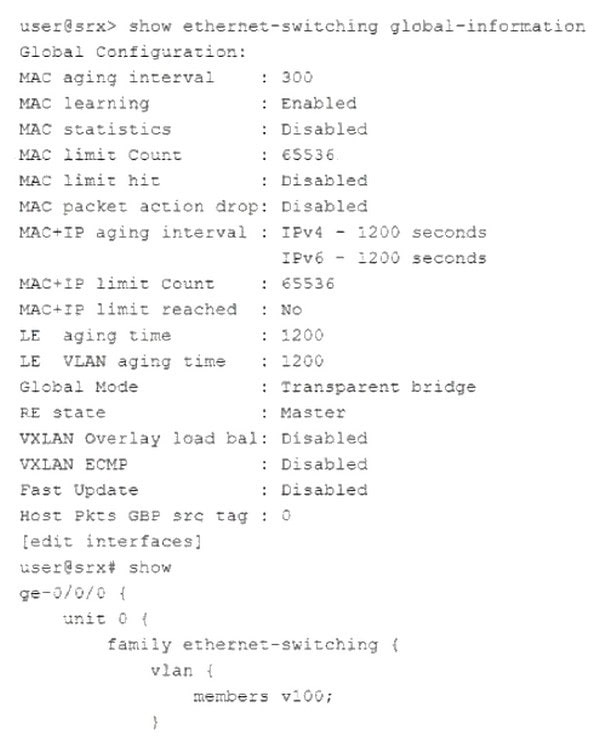

The exhibit shows that the Global Mode of the SRX Series device is set to "Transparent bridge." This means the device is operating in transparent mode . In this mode, the SRX Series device acts like a Layer 2 bridge, forwarding traffic based

on MAC addresses and not performing any Layer 3 (IP) routing or firewalling.

In transparent mode , the SRX device is effectively invisible to the network at the IP layer, and it bridges traffic between Ethernet interfaces without needing to assign IP addresses to those interfaces. This mode is typically used when you

want the SRX to act as a firewall without making any changes to the network's routing configuration.

Key Indicators from the Exhibit:

Global Mode: Transparent bridge: This confirms that the device is configured in transparent mode.

MAC learningand Ethernet Switching options are enabled, which aligns with transparent mode functionality where the device learns MAC addresses and switches traffic between VLANs.

Juniper Security Reference:

Transparent Mode Overview: Transparent mode is used to deploy a firewall in Layer 2 mode, where it bridges traffic between VLANs without being an IP routing device. Reference: Juniper Networks Transparent Mode Documentation.

Correct Answer: BD

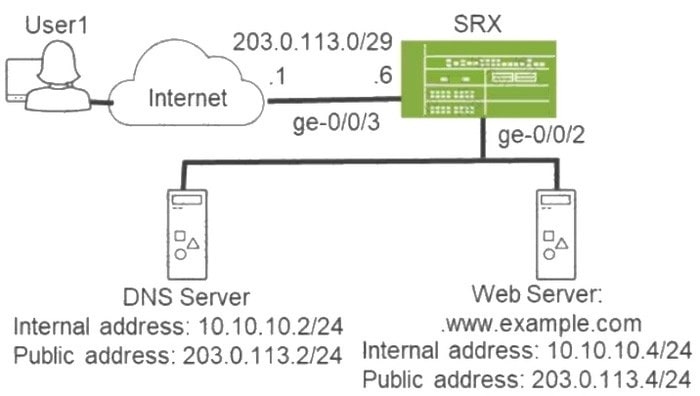

In the scenario where internal users are trying to access the company's web server via its FQDN but the DNS server resolves to a private IP, two key actions are needed:

Static NAT (Answer B): Since the internal DNS server resolves the web server to its private IP address (10.10.10.4/24), you need to configure static NAT for both the DNS server and the webserver. This will ensure that requests coming from the internet will be translated to the web server's public IP (203.0.113.4) and the DNS server's public IP (203.0.113.2). Example Command: bash Copy code set security nat static rule-set public-to-private from zone untrust set security nat static rule-set public-to-private rule dns-server match destination-address 203.0.113.2/32 set security nat static rule-set public-to-private rule dns-server then static-nat-prefix 10.10.10.2/32 set security nat static rule-set public-to-private rule web-server match destination-address 203.0.113.4/32 set security nat static rule-set public-to-private rule web-server then static-nat-prefix 10.10.10.4/32 Proxy ARP (Answer D): The SRX needs to respond to ARP requests for the public IP addresses of both the DNS and webserver on the interface facing the internet (ge-0/0/3). This allows the SRX to handle requests directed at the public IPs. Example Command: bash Copy code set interfaces ge-0/0/3 unit 0 family inet proxy-arp interface-address 203.0.113.2/32 set interfaces ge-0/0/3 unit 0 family inet proxy-arp interface-address 203.0.113.4/32 These two configurations allow external users to access the internal web server via its public IP, as resolved by the DNS server.

Correct Answer: AB

In this configuration, User1 is logged into logical system LSYS-1, which restricts access and visibility to that particular system. This ensures isolation between logical systems on the same physical device. Only a system administrator can

assign additional permissions. For more details, see Juniper Logical Systems Guide.

From the exhibit, we see that User1 is logged into logical system LSYS-1 :

Access to Assigned Logical System (Answer A): User1, being logged into the logical system LSYS-1 , only has access to the configuration and interfaces within that logical system. This is a key feature of logical systems in Junos, ensuring

users are restricted to their respective environments.

Logged into LSYS-1 (Answer B): The prompt shows that User1 is currently operating in LSYS-1 , as indicated by the User1@SRX:LSYS-1> command line.

Correct Answer: D

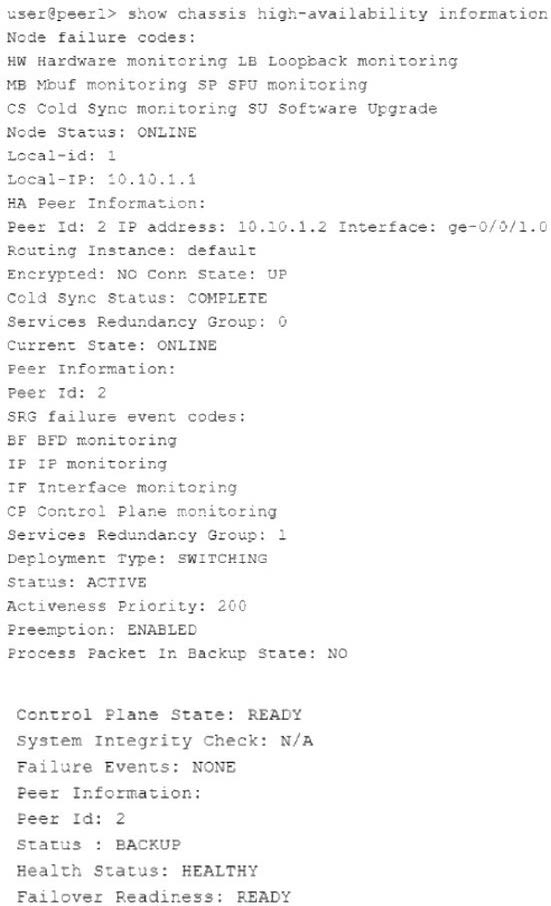

The exhibit describes a Chassis Cluster configuration with high availability (HA) settings. The key information is related to Service Redundancy Group 1 (SRG1) and its failover behavior between the two peers.

of Answer D (Packet Forwarding after Failover):

In a typical SRX HA setup with active/backup configuration , if the SRG1 group moves to peer 2 (the backup), peer 1 (previously the active node) will forward packets to peer 2 instead of dropping them. This ensures smooth failover and

seamless continuation of services without packet loss.

This behavior is part of the active/backup failover process in SRX chassis clusters, where the standby peer takes over traffic processing without disruption.

Juniper Security Reference:

Chassis Cluster Failover Behavior: When a service redundancy group fails over to the backup peer, the previously active peer forwards traffic to the new active node. Reference: Juniper Chassis Cluster Documentation.

Correct Answer: AB

For ADVPN with OSPF, using a point-to-multipoint (p2mp) interface type and enabling dynamic-neighbors are crucial. This configuration allows dynamic discovery of neighbors and the establishment of tunnels. For more information, refer to

Juniper ADVPN Configuration Guide.

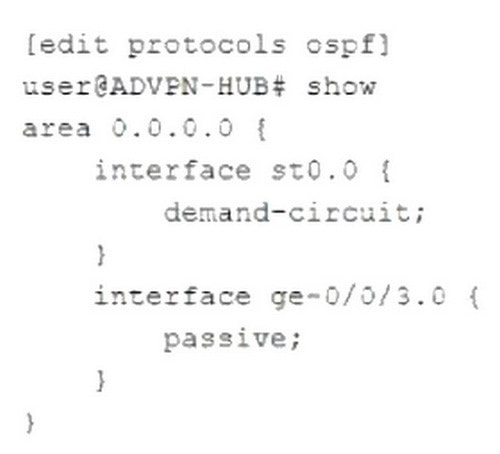

In the ADVPN configuration, OSPF isn't functioning as expected due to the interface configuration on st0.0.

Here are the adjustments needed:

Interface Type p2mp (Answer A): OSPF requires that the tunnel interface be set to p2mp (point-to- multipoint) to allow OSPF to communicate with multiple dynamic neighbors overthe ADVPN tunnels.

Command Example:

bash

Copy code

set interfaces st0.0 family inet ospf interface-type p2mp

Dynamic Neighbors (Answer B): The dynamic neighbors statement allows OSPF to discover and communicate with dynamically established spokes in an ADVPN environment. This is essential for ADVPN to function properly since the tunnel

endpoints are not static.

Command Example:

bash

Copy code

set protocols ospf area 0.0.0.0 interface st0.0 dynamic-neighbors

These settings ensure OSPF properly functions over dynamically created ADVPN tunnels.

Correct Answer: D

Intrusion Detection and Prevention (IDP) services require synchronization between nodes in a multinode HA setup to maintain consistent attack detection and prevention across the network. This ensures seamless failover and accurate threat

mitigation. For more information, see Juniper IDP HA Configuration Guide.

In a multinode HA environment, IDP (Intrusion Detection and Prevention) services must be synchronized between nodes to ensure that the same threat detection and prevention rules are consistently applied across both nodes in the HA

cluster. When IDP is used, the state and configuration of IDP signatures and actions need to be synchronized to ensure that failover or switchover between nodes does not cause discrepancies in security policies and inspection. IDP

Synchronization: The synchronization ensures that both nodes are consistently analyzing traffic for threats and applying the same intrusion prevention mechanisms. If this service is not synchronized, the secondary node might fail to detect

threats after a failover.

Juniper References:

Juniper IDP Synchronization: Explains the importance of synchronizing IDP services across HA nodes to maintain consistent security posture across both devices.

Correct Answer: AD

In multinode HA, the active node retains its role and maintains the active signal route even if the ICL link fails, as long as a backup signal route IP is configured. This backup ensures continuity in failover scenarios. For detailed information,

refer to Juniper Multinode HA Documentation.

In a multinode HA (High Availability) deployment with SRX devices, the Inter-Chassis Link (ICL) is critical for communication between the active and backup nodes. If the ICL link fails, the system relies on thebackup signal route to continue

monitoring the state of the HA deployment.

of Answer A (Active Node Retains Active Role):

If the ICL link fails but the backup signal route is still operational, the active node will retain its role as the active node. This is because the signal route allows the active node to confirm its operational state.

of Answer D (Active Node Keeps Signal Route):

The active node will maintain the signal route if the backup signal route remains operational. The backup node will not preemptively take over the active role unless it detects that the active node has failed entirely.

Juniper Security Reference:

Multinode HA Overview: The backup signal route in multinode HA ensures that the active node retains control as long as it can maintain a signal route. Reference: Juniper HA Documentation.

Correct Answer: C

DNS doctoring modifies DNS responses for hosts behind NAT devices, allowing them to receive the correct public IP address for internal resources when queried from the public network. This prevents issues where private IPs are returned

and are not reachable externally. For details, visit Juniper DNS Doctoring Documentation.

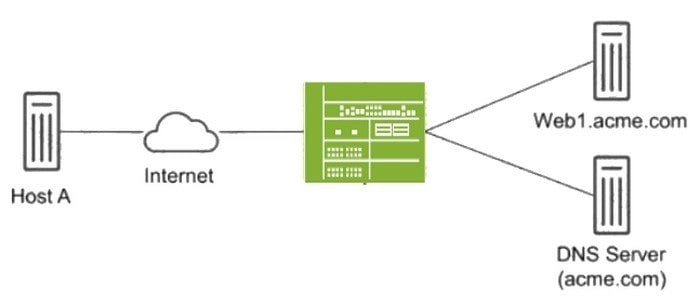

In this scenario, Host A is trying to resolve the domain name web.acme.com , but the DNS resolution returns the private IP address of the web server instead of its public IP. This is a common issue in networks where private addresses are

used internally, but public addresses are required for external clients.

of Answer C (DNS Doctoring):

DNS doctoringis a feature that modifies DNS replies as they pass through the SRX device. In this case, DNS doctoring can be used to replace the private IP address returned in the DNS response with the correct public IP address for Host A.

This allows external clients to reach internal resources without being aware of their private IP addresses.

Configuration Example:

bash

Copy code

set security nat dns-doctoring from-zone untrust to-zone trust

Juniper Security Reference:

DNS Doctoring Overview: DNS doctoring is used to modify DNS responses so that external clients can access internal resources using public IP addresses. Reference: Juniper DNS Doctoring Documentation.
