A customer wants to deploy a FlexPod solution that involves directly connecting the NetApp AFF storage using the FCoE protocol to the Cisco UCS Fabric Interconnects.

In this scenario, which Cisco UCS Fibre Channel mode would be used to accomplish this task?

A. trunk mode

B. end host mode

C. switching mode

D. access mode

A customer has installed FlexPod and verified that all wiring connections are correct. However, the customer cannot see any FC LUNs from the NetApp AFF systems.

In this scenario, which three configuration elements should the customer verify? (Choose three.)

A. FC zoning

B. igroup configuration

C. ALUA settings

D. FC portsets E. MTU configuration

A customer has deployed a FlexPod Datacenter with Red Hat Enterprise Linux OpenStack Platform. The Cinder storage volumes that are attached to the Nova instances are not available.

Based on the terms of the cooperative support model, which three companies would the customer use to open a support case? (Choose three.)

A. Cisco

B. VMware

C. Microsoft

D. NetApp

E. Red Hat

You are configuring high availability within the network layer of your FlexPod configuration.

In this scenario, what are two Cisco best practices for designing vPC on your Cisco 9000 Series switches? (Choose two.)

A. Peer keep-alive connectivity between the switches should be established.

B. A minimum of four 10GB Ethernet connections are required for vPC.

C. The vPC auto-recovery feature should be enabled.

D. Port channels should be configured for LACP passive mode.

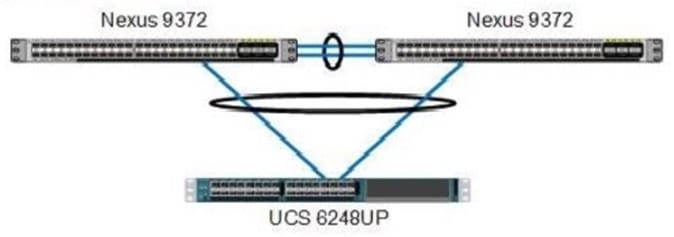

Click the Exhibit button.

Referring to the exhibit, what is the name given to the link between the two Cisco Nexus switches?

A. vPC Domain ID

B. vPC peer domain

C. vPC peer link

D. vPC peer connection

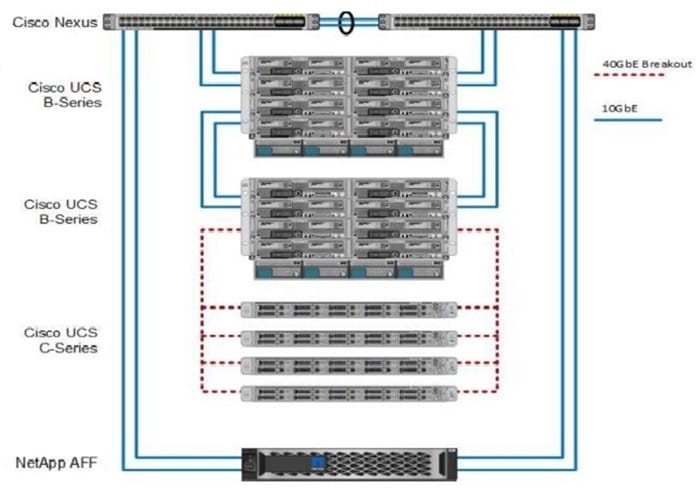

Click the Exhibit button.

The total number of servers that a Cisco UCS Mini chassis supports is set to a maximum of how many hosts as shown in the exhibit?

A. 22

B. 12

C. 20

D. 8

A service provider is designing a FlexPod configuration to host multiple customers in a hybrid cloud environment, where IP address-range conflicts might arise on the shared storage.

Which NetApp feature should be enabled to prevent these conflicts?

A. SVMs

B. broadcast domains

C. IPspaces

D. failover groups

Which Cisco Nexus series switch supports NX-OS standalone mode or Application Centric Infrastructure (ACI) fabric mode?

A. Nexus 7000

B. Nexus 3000

C. Nexus 9000

D. Nexus 5000

You are configuring a FlexPod system for NAS protocols. You want to ensure that there are multiple paths between the initiators and targets in the solution.

Which two steps will accomplish this task? (Choose two.)

A. Allow the VLANs over the vPC peer link.

B. Configure the VLANs in Cisco UCS Manager as Common/Global.

C. Disable LACP.

D. Configure the VSANs in the Cisco Nexus 5000 switches.

Which port type would you configure when you connect a chassis to the Cisco Fabric Interconnects?

A. Ethernet uplink ports

B. FC storage ports

C. server ports

D. appliance ports
