What are two valid storage layouts when using the SnapCenter Plug-in for Microsoft SQL Server? (Choose two.)

A. storing multiple LUNs in a volume

B. storing a single database per LUN

C. storing multiple databases per LUN

D. storing database files on a LUN that contains the log directory

An administrator wants to perform an Automated Nondisruptive Upgrade (ANDU) on a 6-node cluster. While monitoring the upgrade, what does the administrator observe?

A. The new image installs on all nodes in the cluster and then reboots each HA pair in sequence.

B. The new image installs and reboots on one node of each HA pair and then repeats on the partner.

C. The new image installs one node at a time and reboots each node one at a time.

D. The new image installs on all nodes and then reboots one node at a time.

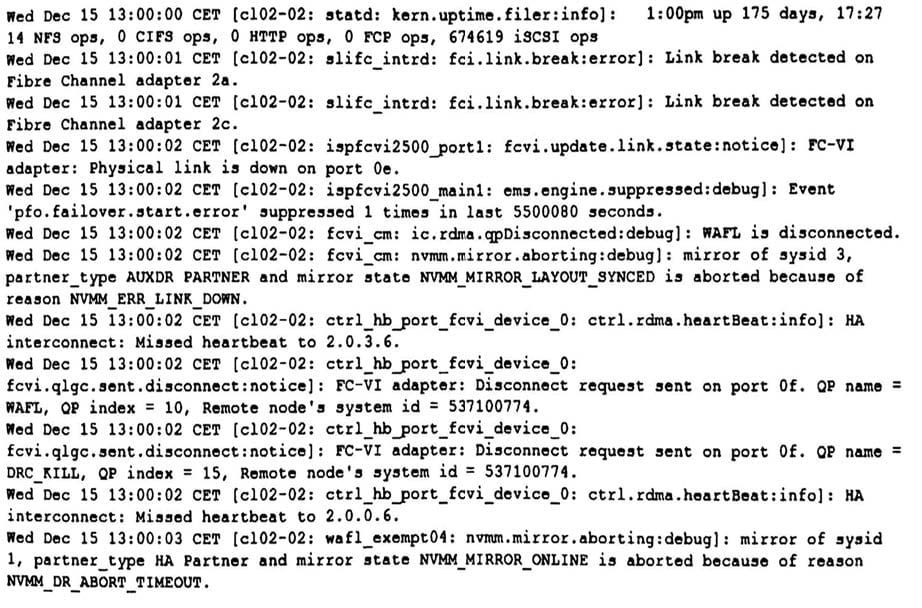

Click the Exhibit button.

You receive a "SYNC MIRROR PLEX FAILED" AutoSupport message from a 4-node MetroCluster. Referring to the exhibit, which command would you use to help identify the problem?

A. Review the ha-config show command output.

B. Review the metrocluster check aggregate show command output.

C. Review the cluster peer health show command output.

D. Review the metrocluster show command output.

A coworker notices an "Unsynchronized Log" message on an AFF A700 controller. You suspect that the problem might be with the HA interconnect.

In this scenario, which two commands would you use to provide additional information? (Choose two.)

A. Use the event log show command.

B. Use the system cluster-switch show command.

C. Use the storage failover show command.

D. Use the storage adapter show command.

After a successful upgrade from ONTAP 9.3 to ONTAP 9.5, you have a compatibility issue and must downgrade to ONTAP 9.3.

Which action must be performed to accomplish this task?

A. ONTAP must be directly downgraded to ONTAP 9.0 first.

B. ONTAP must be directly downgraded to ONTAP 9.4 first.

C. ONTAP must be directly downgraded to ONTAP 9.3 first.

D. ONTAP must be directly downgraded to ONTAP 9.2 first.

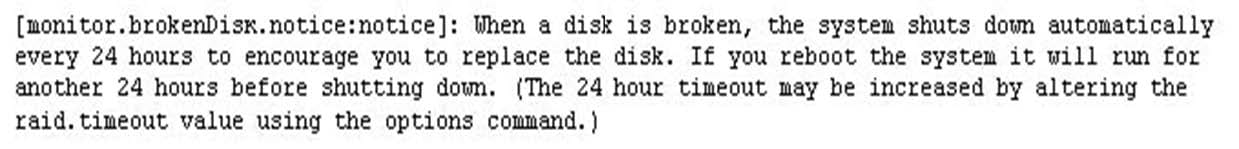

Click the Exhibit button.

You receive the AutoSupport message that is shown in the exhibit.

Under which two circumstances would you receive this message? (Choose two.)

A. There is a three-disk failure in a RAID-TEC group.

B. There is a two-disk failure in a RAID DP group.

C. There is a single-disk failure in a RAID DP group.

D. There is a two-disk failure in a RAID-TEC group.

You have a 4-node MetroCluster configuration. The systems are operating normally with no faults.

In this scenario, which statement describes the usage of NVRAM when a host sends a write to a node?

A. Incoming writes are written to the receiving node's NVRAM and its DR partner's NVRAM only.

B. Incoming writes are written to the receiving node's NVRAM, its HA partner's NVRAM, and its DR partner's NVRAM only.

C. Incoming writes are written to the receiving node's NVRAM and its HA partner's NVRAM only.

D. Incoming writes are written to the all four nodes' NVRAM.

During deployment of an AFF A700 system, the administrator wants to make efficient use of disk space. Which partitioning type would achieve this goal?

A. root-data-data

B. GUID Partition Table (GPT)

C. whole disk

D. primary

Which routing protocol is required for virtual IP (VIP) LIFs?

A. Open Shortest Path First (OSPF)

B. Border Gateway Protocol (BGP)

C. Intermediate System to Intermediate System (IS-IS)

D. Routing Information Protocol (RIP)

You have a 4-node cluster configured for FC. You create a new LUN on node 1, map the LUN to a host, and verify that the host is able to correctly access the LUN. However, after moving the LUN's volume to node 3, ALUA reports that all the paths are non-optlmized. You have already verified that all zoning and physical cabling is correct.

What should you do to enable ALUA to see the optimized paths?

A. Update the reporting nodes for the LUN mapping.

B. Update the igroup initiator WWPN.

C. Update the MPIO policy to most recently used.

D. Update the MPIO policy to round-robin.
